EXANGLE®   RENDER & TEXTURE BEADS

JUDAH EXANGLE^® Render & Texture Beads are designed to give a bonding key to the finishing cements used at corners and abutments whilst also reducing the risk of cavities. The range and sizes available will suit all standard render and texture applications.

PRODUCT FEATURES

STAINLESS STEEL
Suitable for outdoor render applicationsZINC AND POWDER-COATED
Maximum protectionARIOUS RANGE AND SIZES
Available to suit standard render and texture applications
Introduction to our EXANGLE® Render & Texture Beads

JUDAH EXANGLE^® RT finishing sections are designed to give a bonding key to the finishing cements used at corners and abutments whilst also reducing the risk of cavities. The range and sizes available will suit all standard render and texture applications.



ADVANTAGES

• Stainless Steel SR02 for outdoor render applications.
• 7 year warranty.
• Selected products are zinc coated and powder coated for maximum protection.

REVEAL BEADS

We supply Reveal Beads in a variety of widths that offer a strong, straight and clean finish to window openings that require internal trimming.

Our Reveal Beads are cold rolled from 0.9mm Zincanneal steel and are able to withstand harsh UV rays without cracking or breaking down. They incorporate a perforated leg for setting into the surrounding wall lining and can be painted over to match the wall finish.

PRODUCT TYPEBULLNOSE CORNER BEADS – 90° EXTERNAL CORNEREXTERNAL RENDER BEADS – FOR USE IN EXTERNAL APPLICATIONS*RENDER CORNER BEADS – 90° EXTERNAL CORNERRENDER STOPPING BEADS

Download All CAD Files

IMAGE	PART NUMBER	CAD FILE	DESCRIPTION
	EP17		Render Stopping Angle for 7.5mm to 8mm Board – Z200 Powder Coat  BMT: 0.40 | Stock Pack: 100 | Sub Pack: 20 Special Order Length: 10′
	EP32		90° Expanded External Corner Bead – Z200 Powder coated BMT: 0.40 | Stock Pack: 480 | Sub Pack: 20 Special Order Length: 10′
	EP50		Shadowline Stopping Angle – 3/8″ Recess – Z200 Powder Coat  BMT: 0.40 | Stock Pack: 500 | Sub Pack: 20 Special Order Length: 10′
	ER11		Render Stopping Bead to suit 3/8″ Render – Z200 Powder Coat  BMT: 0.40 | Stock Pack: 100 | Sub Pack: 20 Special Order Length: 10′
	R01		90° External Corner Bead – 4.5mm Radius BMT: 25 GA | Stock Pack: 156 | Sub Pack: 6 Available Length: 10′ Special Order Lengths: 9′, 10′
	R02		90° External Corner Bead – 2.5mm Radius BMT: 25 GA | Stock Pack: 220 | Sub Pack: 10 Available Lengths: 8′, 10′, 12′

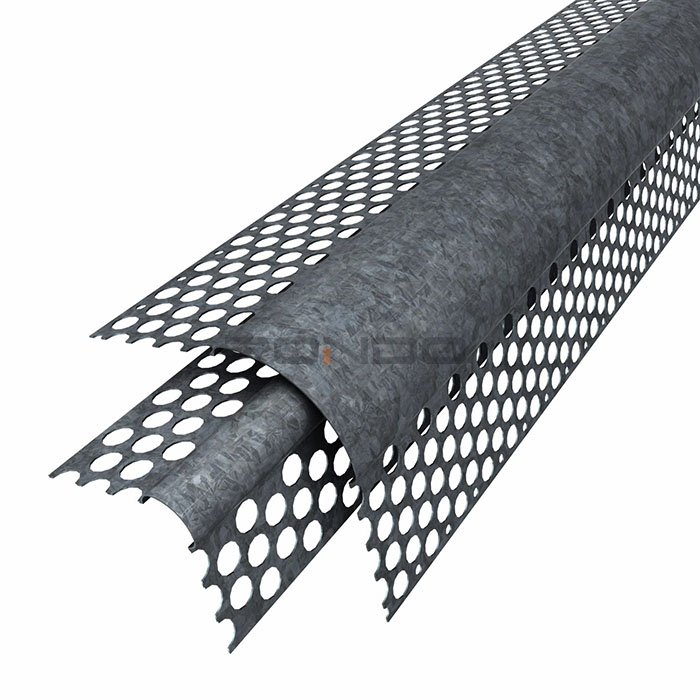

	R05		90° Bullnose External Corner Bead – Perforated – 3/8″ Radius  BMT: 25 GA | Stock Pack: 200 | Sub Pack: 10 Available Length: 10′
	R06		90° Bullnose External Corner Bead – Perforated – 1″ Radius  BMT: 25 GA | Stock Pack: 100 | Sub Pack: 10 Special Order Length: 10′
	R11		Render Stopping Bead to suit 3/8″ Render BMT: 0.40 | Stock Pack: 400 | Sub Pack: 20 Available Length: 10′ Special Order Lengths: 8′, 10′
	R50		Shadowline Render Stopping Bead – 3/8″ Recess to suit 3/8″ Render  BMT: 0.40 | Stock Pack: 200 | Sub Pack: 10 Available Length: 10′

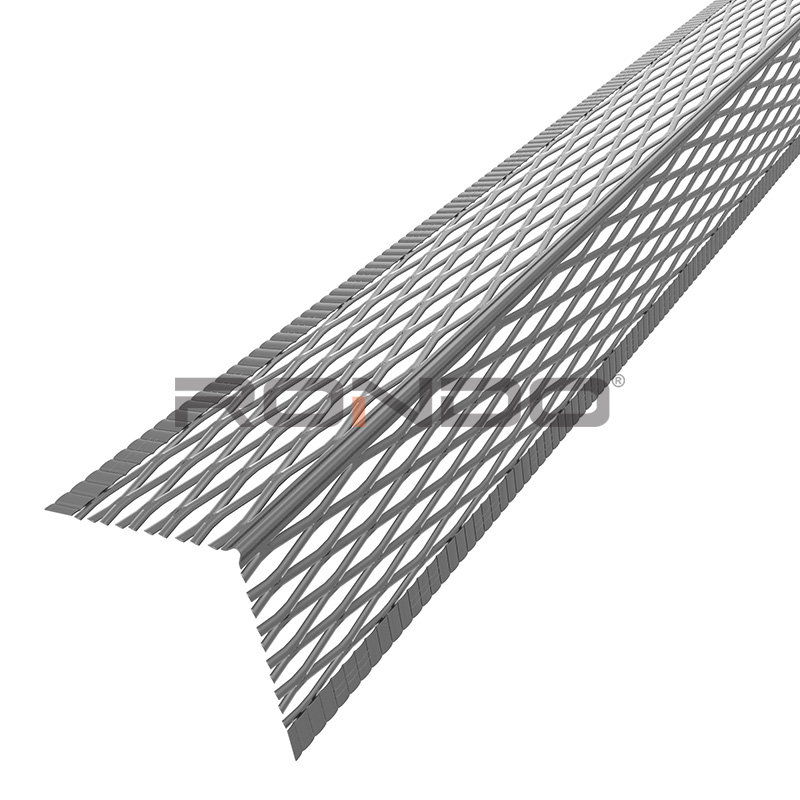

	SR02		90° Stainless Steel Expanded External Corner Bead – 2.5mm Radius  BMT: 0.45 | Stock Pack: 220 | Sub Pack: 10 Available Lengths: 10′
