CAD DRAWINGS

We have CAD Drawings across our full range of Ceiling and Wall Systems, as well as complementary accessories such as Access Panels, Plastering Beads and Acoustic Mounts.

Request Support
View Resources

AVAILABLE CAD DRAWINGS

IMAGE PART NUMBER CAD FILE DESCRIPTION
Steel_Wall_Track_Hem-311.jpg 111

2 1/2 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
Special Order Length: 11ft 9-3/4in
Steel_Wall_Stud_Hem-313.jpg 112

2 1/2 inch (w) x 1 1/2 inch (h) Steel Stud with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 13ft 9in, 15ft 9in
Special Order Length: 10ft 9in
U_Clip_Primary_To_Secondary_Joiner-77.jpg 119

Judah U Clip® – suits 125/127/128 Top Cross Rail
Stock Pack: 500 | Sub Pack: 100
121 Soft Galvanised Suspension Rod 121

Ø3/16" Soft Galvanised Suspension Rod
Stock Pack: 1000 | Sub Pack: 50
Available Length: 11ft 9-3/4in
121 Soft Galvanised Suspension Rod 121

Ø3/16" Soft Galvanised Suspension Rod
Stock Pack: 1000 | Sub Pack: 50
Available Lengths: 11ft 9-3/4in
121 Soft Galvanised Suspension Rod 121

Ø3/16" Soft Galvanised Suspension Rod
Stock Pack: 1000 | Sub Pack: 50
Available Lengths: 11ft 9-3/4in
121 Soft Galvanised Suspension Rod 121

Ø3/16" Soft Galvanised Suspension Rod
Stock Pack: 1000 | Sub Pack: 50
Available Lengths: 11ft 9-3/4in
121 Soft Galvanised Suspension Rod 121

Ø3/16" Soft Galvanised Suspension Rod
Stock Pack: 1000 | Sub Pack: 50
Available Lengths: 11ft 9-3/4in
122 Soft Galvanised Suspension Rod 122

Ø13/64" Soft Galvanised Suspension Rod – M6 Thread at one end
Stock Pack: 50 | Sub Pack: 50
Available Lengths: 11 3/4 inch, 17 3/4 inch, 23 5/8 inch, 35 1/2 inch, 3ft 11-1/4in, 5ft 10-3/4in, 7ft 10-1/2in & 11ft 9-3/4in
122 Soft Galvanised Suspension Rod 122

Ø13/64" Soft Galvanised Suspension Rod – M6 Thread at one end
Stock Pack: 50 | Sub Pack: 50
Available Lengths: 11 3/4 inch, 17 3/4 inch, 23 5/8 inch, 35 1/2 inch, 3ft 11-1/4in, 5ft 10-3/4in, 7ft 10-1/2in & 11ft 9-3/4in
122 Soft Galvanised Suspension Rod 122

Ø13/64" Soft Galvanised Suspension Rod – M6 Thread at one end
Stock Pack: 50 | Sub Pack: 50
Available Lengths: 11 3/4 inch, 17 3/4 inch, 23 5/8 inch, 35 1/2 inch, 3ft 11-1/4in, 5ft 10-3/4in, 7ft 10-1/2in & 11ft 9-3/4in
122 Soft Galvanised Suspension Rod 122

Ø13/64" Soft Galvanised Suspension Rod – M6 Thread at one end
Stock Pack: 50 | Sub Pack: 50
Available Lengths: 11 3/4 inch, 17 3/4 inch, 23 5/8 inch, 35 1/2 inch, 3ft 11-1/4in, 5ft 10-3/4in, 7ft 10-1/2in & 11ft 9-3/4in
122 Soft Galvanised Suspension Rod 122

Ø13/64" Soft Galvanised Suspension Rod – M6 Thread at one end
Stock Pack: 50 | Sub Pack: 50
Available Lengths: 11 3/4 inch, 17 3/4 inch, 23 5/8 inch, 35 1/2 inch, 3ft 11-1/4in, 5ft 10-3/4in, 7ft 10-1/2in & 11ft 9-3/4in
124 Thread Adjustable Suspension Clip 124

2 3/8 inch (h) Suspension Clip - suits 125/127/128 Top Cross Rail
Stock Pack: 250 | Sub Pack: 250
124N Thread Adjustable Suspension Clip Threaded Nut 124N

2 3/8 inch (h) Suspension Clip with M6 Threaded Nut - suits 125/127/128 Top Cross Rail
Stock Pack: 250 | Sub Pack: 250
125/127 125

1 inch (h) x 13/16 inch (w) Top Cross Rail
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Special Order Lengths: 11ft 9-3/4in
125/127 127

1 inch (h) x 13/16 inch (w) Top Cross Rail
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 11ft 9-3/4in, 15ft 9in

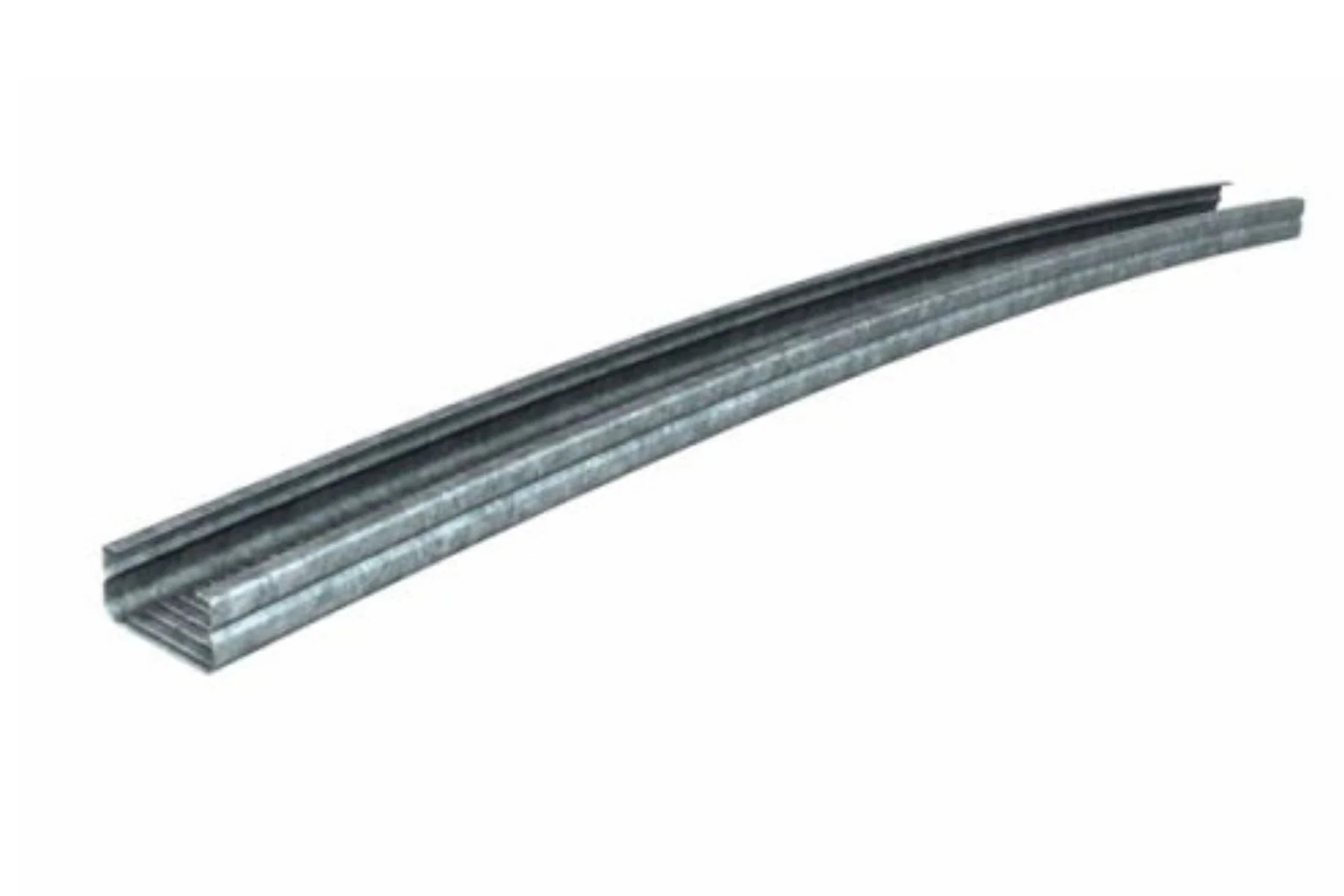

125/127 127R

1 inch (h) x 13/16 inch (w) Radiused Top Cross Rail
Thickness: 21ga | Stock Pack: 1 | Sub Pack: 1
Special Order Lengths: 11ft 9-3/4in, 15ft 9in
Top_Cross_Rail_128-73.jpg 128

1 1/2 inch (h) x 13/16 inch (w) Top Cross Rail
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 5
Available Lengths: 15ft 9in

128 Top Cross Rail 128R

1 1/2 inch (h) x 13/16 inch (w) Radiused Top Cross Rail
Thickness: 21ga | Stock Pack: 1 | Sub Pack: 1
Special Order Lengths: 15ft 9in
Furring_Channel_129-26.jpg 129

1 1/8 inch (h) x 1 1/2 inch (face) Furring Channel
Thickness: 25ga | Stock Pack: 120 | Sub Pack: 4
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 15ft 9in, 19ft 9in
Furring_Channel_129-26.jpg 129

1 1/8 inch (h) x 1 1/2 inch (face) Furring Channel
Thickness: 25ga | Stock Pack: 120 | Sub Pack: 4
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 15ft 9in, 19ft 9in
Furring_Channel_Section_Joiner-33.jpg 138

4 inch (l) x 2 inch (w) Section Joiner – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200
Furring_Channel_Section_Joiner-33.jpg 138

4 inch (l) x 2 inch (w) Section Joiner – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200
Primary_To_Secondary_Joiner_139-74.jpg 139

Interchange Clip – 129/308/309A Furring Channel to 125/127/128 Top Cross Rail
Stock Pack: 500 | Sub Pack: 100

140, 141, 143, 340 Furring Channel Wall Track Trim 140

1 1/8 inch (h) x 13/16 inch & 1 1/8 inch (uneven leg) Wall Track - suits 129/155 Furring Channel
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
140, 141, 143, 340 Furring Channel Wall Track Trim 140

1 1/8 inch (h) x 13/16 inch & 1 1/8 inch (uneven leg) Wall Track - suits 129/155 Furring Channel
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
140, 141, 143, 340 Furring Channel Wall Track Trim 141

1 1/8 inch (h) x 13/16 inch & 1 1/8 inch (uneven leg) Seismic Wall Track - suits 129/155 Furring Channel
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 10
Special Order Length: 9ft 10in
140, 141, 143, 340 Furring Channel Wall Track Trim 141

1 1/8 inch (h) x 13/16 inch & 1 1/8 inch (uneven leg) Seismic Wall Track - suits 129/155 Furring Channel
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 10
Special Order Length: 9ft 10in
142 Wall Track 142

5/8 inch (h) x 1/2 inch & 1 1/8 inch (uneven leg) Wall Track - suits 308 Furring Channel
Thickness: 25ga | Stock Pack: 400 | Sub Pack: 20
Available Length: 9ft 10in
142 Wall Track 142

5/8 inch (h) x 1/2 inch & 1 1/8 inch (uneven leg) Wall Track - suits 308 Furring Channel
Thickness: 25ga | Stock Pack: 400 | Sub Pack: 20
Available Length: 9ft 10in
155 Face Furring Channel Express Joint 155

1 1/8 inch (h) x 1 7/8 inch (face) Furring Channel
Thickness: 25ga | Stock Pack: 120 | Sub Pack: 4
Special Order Lengths: 15ft 9in, 19ft 9in
155 Face Furring Channel Express Joint 155

1 1/8 inch (h) x 1 7/8 inch (face) Furring Channel
Thickness: 25ga | Stock Pack: 120 | Sub Pack: 4
Special Order Lengths: 15ft 9in, 19ft 9in

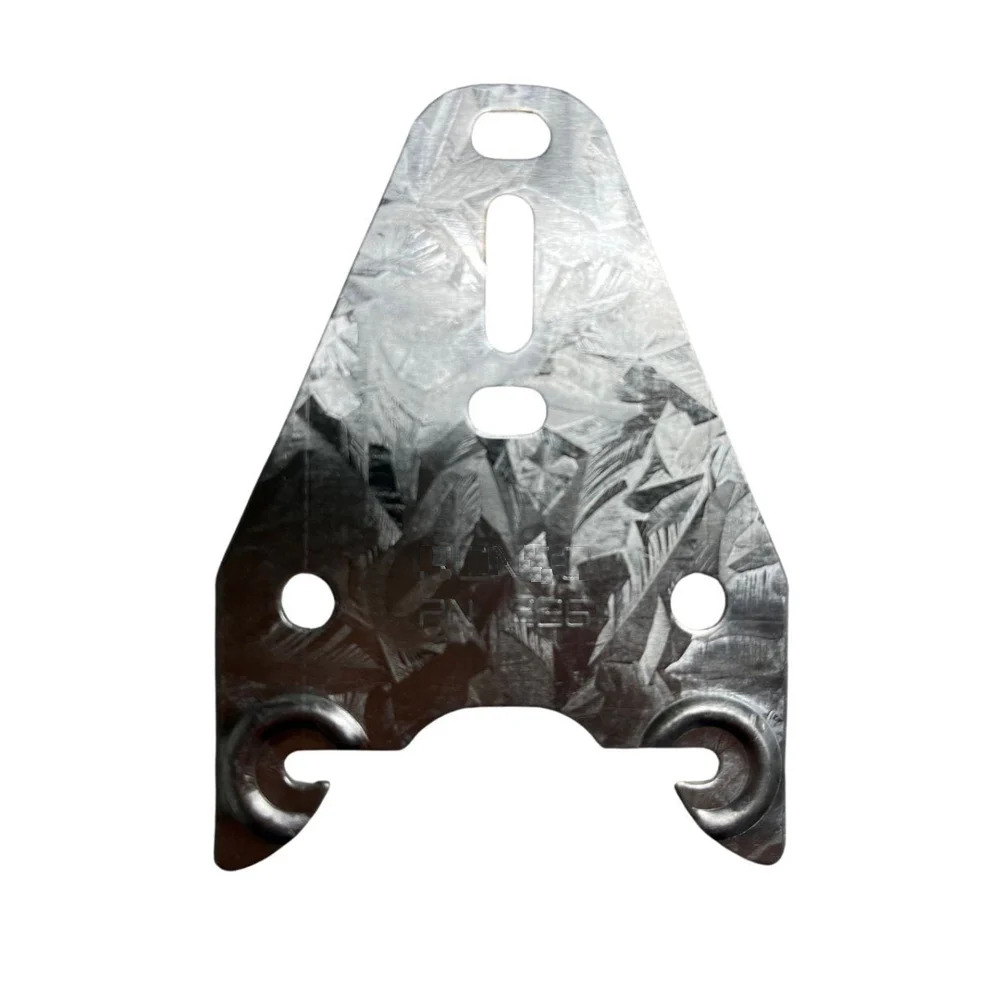

156 Direct Fix Clip Timber Steel 156

3 1/2 inch (h) x 3 inch (w) DFC – 155 Furring Channel to Timber/Steel
Stock Pack: 300 | Sub Pack: 300
*Special Order

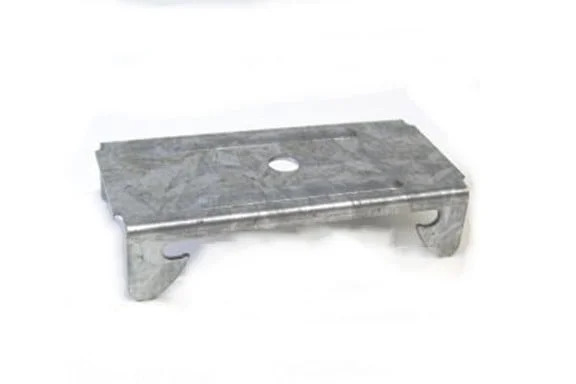

157 Direct Fix Clip Masonry 157

11/16 inch (h) x 3 inch (w) DFC – 155 Furring Channel to Masonry/ Concrete
Stock Pack: 400 | Sub Pack: 400
*Special Order

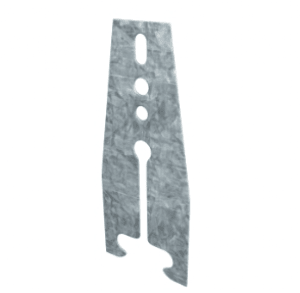

Direct_Fix_Clip_Timber_Steel_166-49.jpg 166

3 3/4 inch (h) x 1 1/2 inch (w) DFC – 125/127/128 Top Cross Rail to Timber/Steel
Stock Pack: 250 | Sub Pack: 250
167 Side Mounted TCR Suspension Clip 167

2 3/8 inch (h) X 1 1/8 inch (w) Side mounted Suspension Clip - suits 125/127/128 Top Cross Rail
Stock Pack: 200 | Sub Pack: 200
188 Wall Angle Bracket 188

1 3/8 inch (h) x 1 3/8 inch (w) x 5/8 inch (l) Wall Angle Bracket
Stock Pack: 1000 | Sub Pack: 100
188 Wall Angle Bracket 188

1 3/8 inch (h) x 1 3/8 inch (w) x 5/8 inch (l) Wall Angle Bracket
Stock Pack: 1000 | Sub Pack: 100
188 Wall Angle Bracket 188

1 3/8 inch (h) x 1 3/8 inch (w) x 5/8 inch (l) Wall Angle Bracket
Stock Pack: 1000 | Sub Pack: 100
188 Wall Angle Bracket 188

1 3/8 inch (h) x 1 3/8 inch (w) x 5/8 inch (l) Wall Angle Bracket
Stock Pack: 1000 | Sub Pack: 100

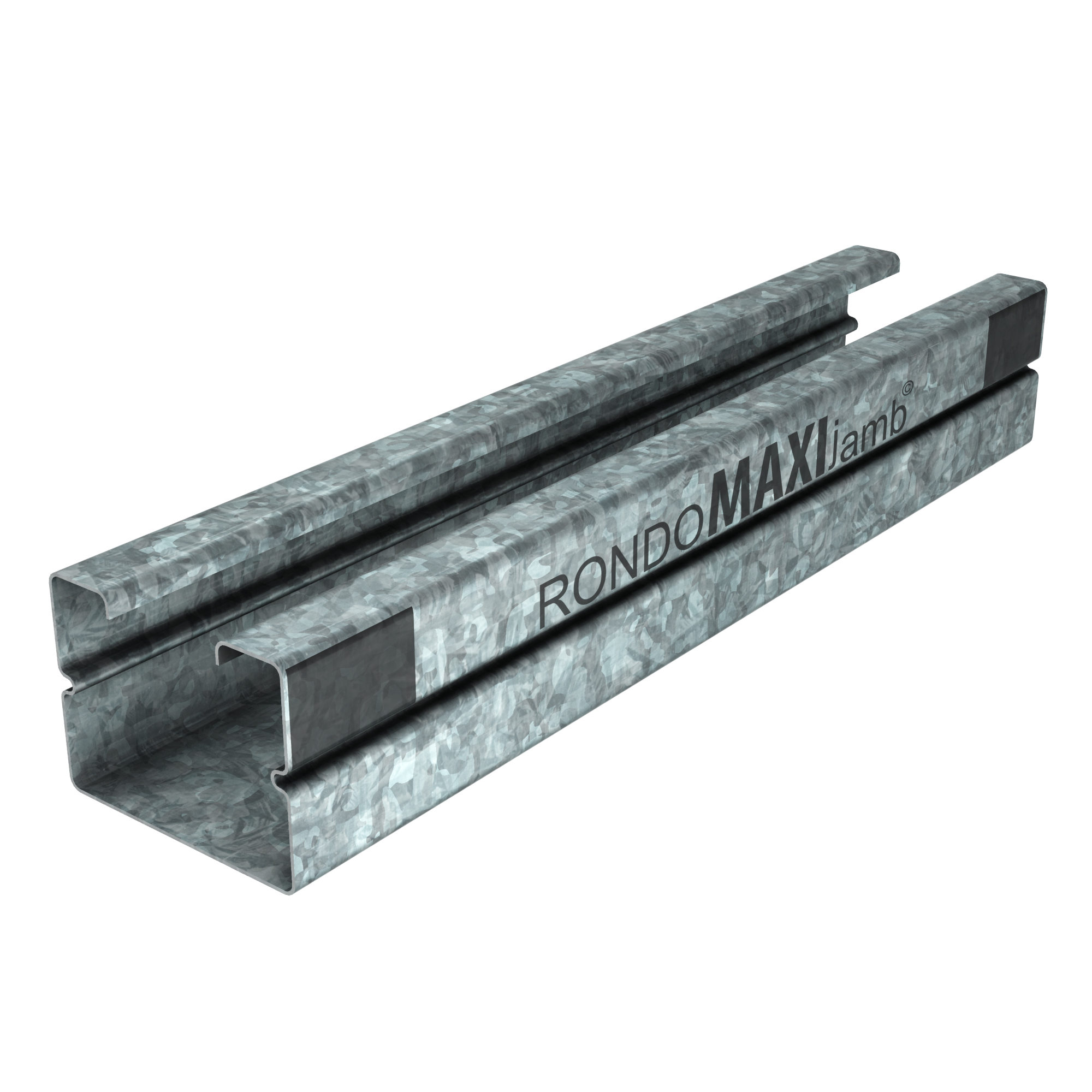

Maxijamb 2019 200

3 5/8 inch (w) x 2 3/4 inch (h) MAXIjamb® Stud
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 9ft 2-1/2in, 9ft 10in, 11ft 9-3/4in, 13ft 9in
201 Cleat Base Bracket 201

2 1/2 inch (h) x 2 inch (w) x 3 5/16 inch (l) Base Bracket to suit 3 5/8 inch MaxiFrame
Thickness: 12ga | Stock Pack: 50 | Sub Pack: 50
202 Cleat Sill Bracket 202

2 3/4 inch (h) x 1 3/4 inch (w) x 3 1/2 inch (l) Sill Bracket to suit 3 5/8 inch MaxiFrame
Thickness: 16ga | Stock Pack: 50 | Sub Pack: 50
203 Cleat Slotted Head Bracket 203

2 1/2 inch (h) x 2 inch (w) x 3 5/16 inch (l) Slotted Head Bracket to suit 3 5/8 inch MAXIframe®®
Thickness: 12ga | Stock Pack: 50 | Sub Pack: 50
204 Stud Maxijamb 204

6 inch (w) x 2 3/4 inch (h) MAXIjamb® Stud
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Special Order Lengths: 9ft 10in, 11ft 9-3/4in, 15ft 9in, 19ft 9in
205 Cleat Base Bracket 205

2 1/2 inch (h) x 2 inch (w) x 5 3/4 inch (l) Base Bracket to suit 6 inch MAXIframe®
Thickness: 12ga | Stock Pack: 25 | Sub Pack: 25
*Special Order
206 Cleat Sill Bracket 206

2 3/4 inch (h) x 1 3/4 inch (w) x 5 3/4 inch (l) Sill Bracket to suit 6 inch MAXIframe®
Thickness: 16ga | Stock Pack: 25 | Sub Pack: 25
*Special Order
207 Cleat Slotted Head Bracket 207

2 1/2 inch (h) x 2 inch (w) x 5 3/4 inch (l) Slotted Head Bracket to suit 6 inch MAXIframe®
Thickness: 12ga | Stock Pack: 25 | Sub Pack: 25
*Special Order
214, 215 216 217 (1) 214

2 1/2 inch (w) Double Punched Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 11 3/4 inch, 15 3/4 inch, 17 3/4 inch, 23 5/8 inch
215 216 217 215

3 inch (w) Double Punched Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 11 3/4 inch, 15 3/4 inch, 17 3/4 inch, 23 5/8 inch
215 216 217 216

3 5/8 inch (w) Double Punched Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 11 3/4 inch, 15 3/4 inch, 17 3/4 inch, 23 5/8 inch
215, 216 Double Punched Nogging Track 216

3 5/8 inch (w) Double Punched Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 11 3/4 inch, 15 3/4 inch, 17 3/4 inch, 23 5/8 inch
215 216 217 217

6 inch (w) Double Punched Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 11 3/4 inch, 15 3/4 inch, 17 3/4 inch, 23 5/8 inch
215 216 217 217

6 inch (w) Double Punched Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 11 3/4 inch, 15 3/4 inch, 17 3/4 inch, 23 5/8 inch
222 222

Fast-Fix Nogging®
Thickness: 22ga | Stock Pack: 10 | Sub Pack: 1
Available Length: 192 3/8 inch
224 Section Joiner 224

Joiner: Stud to 129/308 Furring Channel
 Stock Pack: 100 | Sub Pack: 100
*Special Order
Direct_Fix_Clip_Timber_Steel_226-50.jpg 226

3 1/2 inch (h) x 2 5/8 inch (w) DFC – 129/308/309A Furring Channel to Timber/Steel
Stock Pack: 300 | Sub Pack: 100

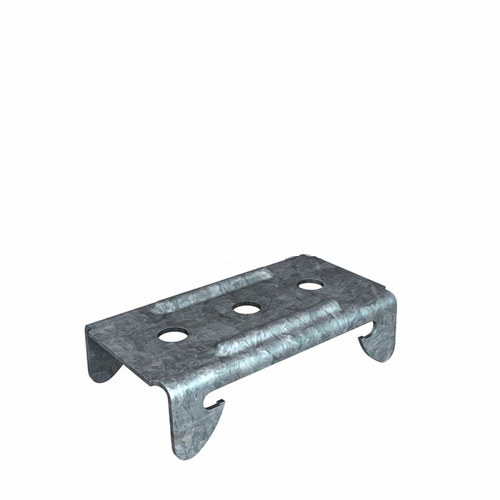

Direct_Fix_Clip_Concrete-43.jpg 237

11/16 inch (h) x 2 5/8 inch (w) DFC – 129/308/309A Furring Channel to Masonry/Concrete
Stock Pack: 400 | Sub Pack: 50
Primary_To_Secondary_Top_Cross_Rail_Furring_Channel_Joiner-76.jpg 238

Swivel Interchange Clip – 129/308/309A Furring Channel to 125/127/128 Top Cross Rail
Stock Pack: 200 | Sub Pack: 50

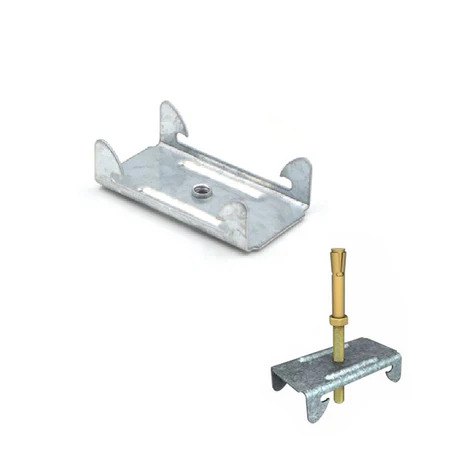

239 Direct Fix Clip Concrete Screw Fix 239

11/16 inch (h) x 2 1/2 inch (w) DFC – 129/308/309A Furring Channel to Masonry/Concrete – M6 Thread
Stock Pack: 400 | Sub Pack: 50
247, 249 Concete 247

2 3/8 inch (h) x 1 inch (w) x 13/16 inch (l) Bracket – 121 Rod to Masonry/ Concrete
Stock Pack: 400 | Sub Pack: 100
247, 249 Concete 247

2 3/8 inch (h) x 1 inch (w) x 13/16 inch (l) Bracket – 121 Rod to Masonry/ Concrete
Stock Pack: 400 | Sub Pack: 100
247 Suspension Rod Bracket Hanger Concete 247

2 3/8 inch (h) x 1 inch (w) x 13/16 inch (l) Bracket – 121 Rod to Masonry/ Concrete
Stock Pack: 400 | Sub Pack: 100
247, 249 Concete 247

2 3/8 inch (h) x 1 inch (w) x 13/16 inch (l) Bracket – 121 Rod to Masonry/ Concrete
Stock Pack: 400 | Sub Pack: 100
247 Suspension Rod Bracket Hanger Concete 247

2 3/8 inch (h) x 1 inch (w) x 13/16 inch (l) Bracket – 121 Rod to Masonry/ Concrete
Stock Pack: 400 | Sub Pack: 100
247, 249 Concete 249

1 1/8 inch (h) x 1 1/2 inch (face) Furring Channel
Stock Pack: 400 | Sub Pack: 100
*Special Order
Steel_Wall_Track_Hem-311.jpg 250

3 5/8 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 9ft 10in
Special Order Length: 11ft 9-3/4in
Steel_Wall_Track_Hem-2752.jpg 250

3 5/8 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 9ft 10in, 11ft 9-3/4in
Steel_Wall_Stud_Hem-314.jpg 251

3 5/8 inch (w) x 1 1/2 inch (h) Steel Stud with Hem
Thickness: 25ga | Stock Pack: 80 | Sub Pack: 10
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 13ft 9in, 15ft 9in, 19ft 9in
Special Order Length: 10ft 9in

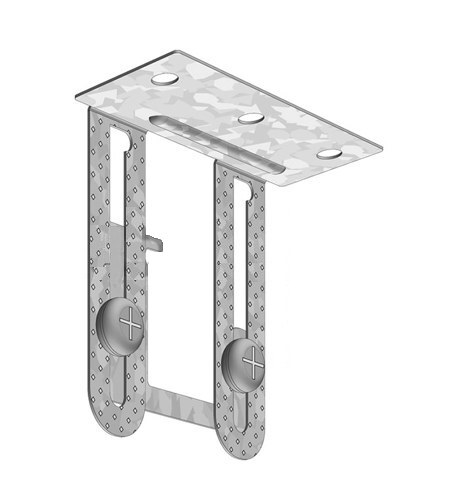

2534 TCR Suspension Clip 2534

4 1/4 inch (h) X 1 1/2 inch (w) Suspension Clip - suits 125/127/128 Top Cross Rail
Stock Pack: 250 | Sub Pack: 250
254 Spring Adjustable Suspension Hanger Joiner Clip 254

3 1/4 inch (h) x 3/4 inch (w) Spring Adjustable Rod Joiner - suits 121 Rod & 122 Threaded Rod
Stock Pack: 1000 | Sub Pack: 100
254 Spring Adjustable Suspension Hanger Joiner Clip 254

3 1/4 inch (h) x 3/4 inch (w) Spring Adjustable Rod Joiner - suits 121 Rod & 122 Threaded Rod
Stock Pack: 1000 | Sub Pack: 100
270 Section Joiner 270

Joiner: Stud to Stud - 90°
Stock Pack: 100 | Sub Pack: 100
*Special Order
271 Rod Bracket 271

‘U’ Bracket to suit 5/16 inch Rod
Stock Pack: 50 | Sub Pack: 50

272 Top Cross Rail Section Joiner 272

7 7/8 inch (l) x 13/16 inch (w) Section Joiner – suits 125/127/128 Top Cross Rail
Stock Pack: 100 | Sub Pack: 100
*Special Order
272 Top Cross Rail Section Joiner 272

7 7/8 inch (l) x 13/16 inch (w) Section Joiner – suits 125/127/128 Top Cross Rail
Stock Pack: 100 | Sub Pack: 100
*Special Order
274 Suspension Rod Bracket Hanger Timber Steel Joist 274

1 1/8 inch (h) x 1 inch (w) Bracket – 121 Rod to Timber/Steel
Stock Pack: 500 | Sub Pack: 100
274 Suspension Rod Bracket Hanger Timber Steel Joist 274

1 1/8 inch (h) x 1 inch (w) Bracket – 121 Rod to Timber/Steel
Stock Pack: 500 | Sub Pack: 100
274 Suspension Rod Bracket Hanger Timber Steel Joist 274

1 1/8 inch (h) x 1 inch (w) Bracket – 121 Rod to Timber/Steel
Stock Pack: 500 | Sub Pack: 100
274 Suspension Rod Bracket Hanger Timber Steel Joist 274

1 1/8 inch (h) x 1 inch (w) Bracket – 121 Rod to Timber/Steel
Stock Pack: 500 | Sub Pack: 100
274 Suspension Rod Bracket Hanger Timber Steel Joist 274

1 1/8 inch (h) x 1 inch (w) Bracket – 121 Rod to Timber/Steel
Stock Pack: 500 | Sub Pack: 100
282 Direct Fix Furring Channel Clip Membrane Insulation 282

3 1/8 inch (h) x 2 5/8 inch (w) DFC – 129/308/309A Furring Channel to Timber/Steel – Membrane Insulation
Stock Pack: 250 | Sub Pack: 250
Ceiling_Batten_301-30.jpg 301

5/8 inch (h) x 1 1/2 inch (w) Ceiling Batten
Thickness: 26ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 15ft 9in & 19ft 9in

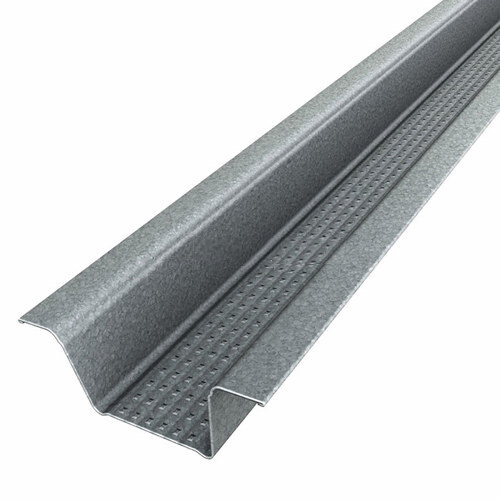

Ceiling_Batten_303-31.jpg 303

7/8 inch (h) x 1 1/8 inch (face) Cyclonic Ceiling Batten
Thickness: 26ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 15ft 9in, 20ft 0-1/4in

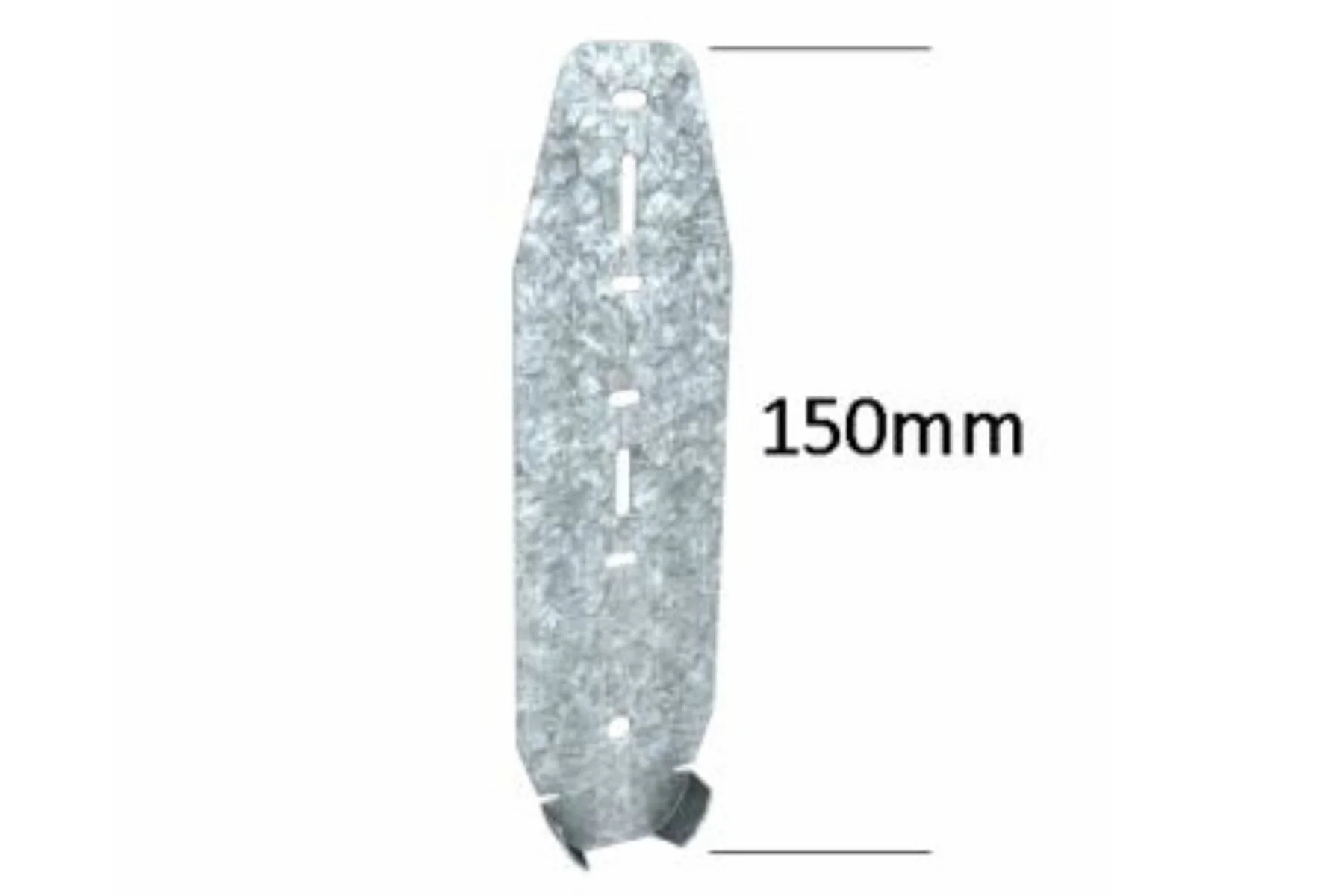

305 Direct Fix Clip Timber Steel 305

6 inch (h) x 1 5/8 inch (w) DFC – 301 Ceiling Batten to Timber/Steel
Stock Pack: 200 | Sub Pack: 200

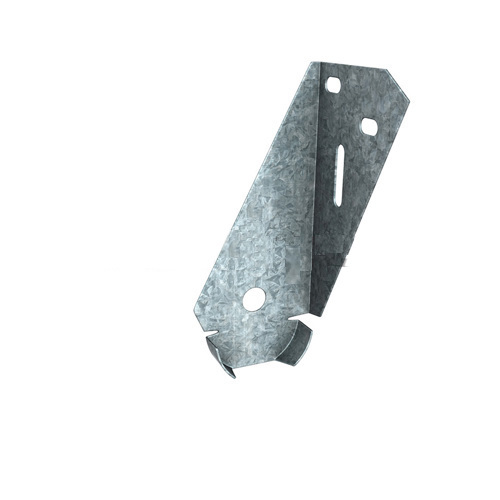

307 Direct Fix Clip Timber 307

3 5/8 inch (h) x 1 3/8 inch (w) DFC – 301 Ceiling Batten to Timber/Steel at 90° Angle
Stock Pack: 200 | Sub Pack: 200
Furring_Channel_308-27.jpg 308

5/8 inch (h) x 1 1/2 inch (face) Furring Channel
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 4
Available Lengths: 3000m, 11ft 9-3/4in, 15ft 9in, 19ft 9in
Furring_Channel_308-27.jpg 308

5/8 inch (h) x 1 1/2 inch (face) Furring Channel
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 4
Available Lengths: 3000m, 11ft 9-3/4in, 15ft 9in, 19ft 9in
308 Furring Channel 308R

5/8 inch (h) x 1 1/2 inch (face) Radiused Furring Channel
Thickness: 25ga | Stock Pack: 1 | Sub Pack: 1
Special Order Length: 15ft 9in
308 Furring Channel 308R

5/8 inch (h) x 1 1/2 inch (face) Radiused Furring Channel
Thickness: 25ga | Stock Pack: 1 | Sub Pack: 1
Special Order Length: 15ft 9in
Ceiling_Batten_310-32.jpg 310

1 3/8 inch (h) x 1 5/8 inch (face) Ceiling Batten
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 5
Special Order Lengths: 11ft 9-3/4in, 15ft 9in, 19ft 9in

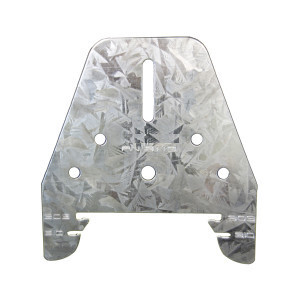

311D Direct Fix Batten Clip 311D

3 5/8 inch (h) x 3 1/2 inch (w) Dual Purpose DFC – 310/303 Ceiling Batten to Timber/Steel
Stock Pack: 300 | Sub Pack: 100
312 Section Joiner 312

1 1/8 inch (l) x 13/16 inch (w) Section Joiner – suits 310 Ceiling Batten
Stock Pack: 100 | Sub Pack: 100
*Special Order
312 Section Joiner 312

1 1/8 inch (l) x 13/16 inch (w) Section Joiner – suits 310 Ceiling Batten
Stock Pack: 100 | Sub Pack: 100
*Special Order

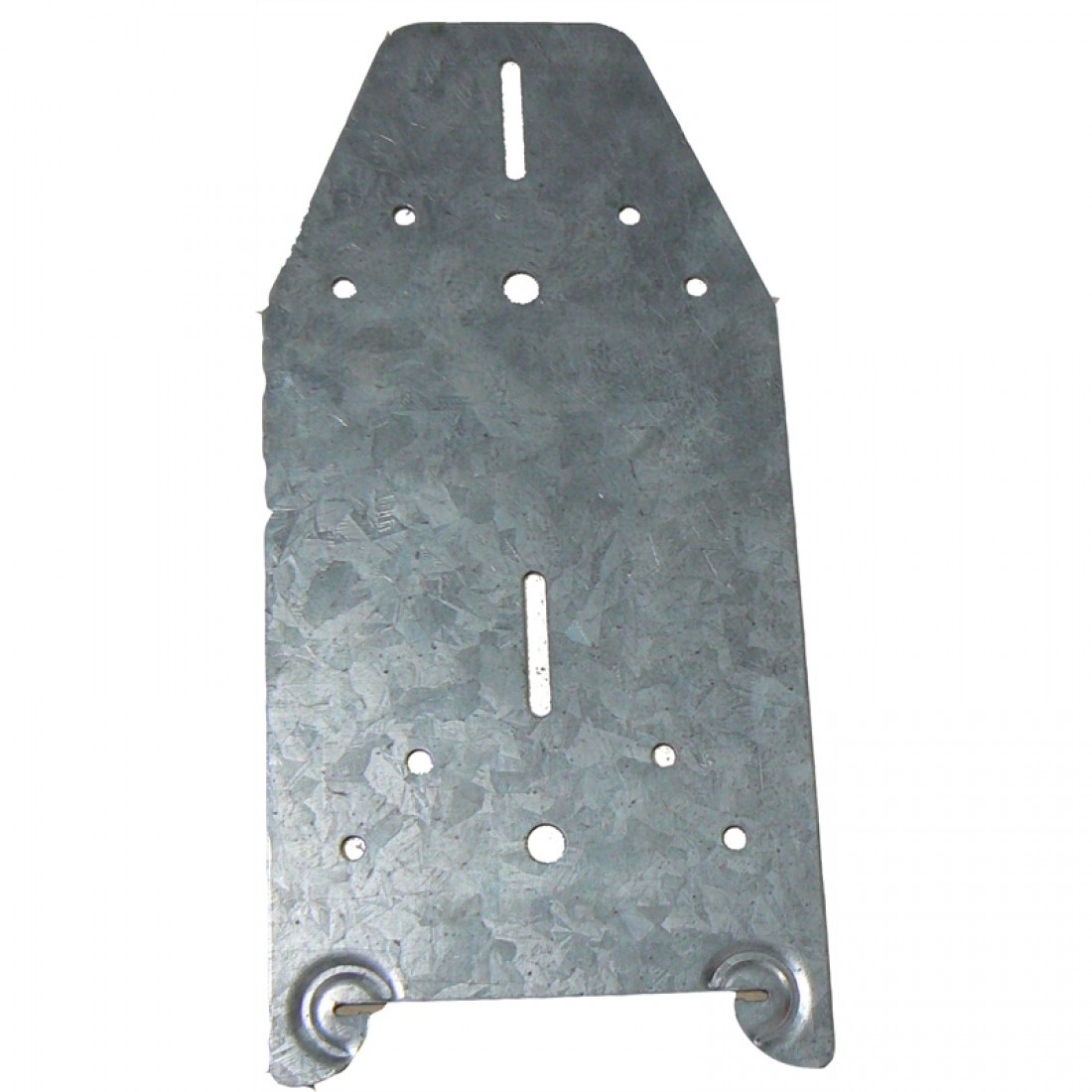

313 Direct Fix Clip Extended 313

7 1/2 inch (h) x 3 1/2 inch (w) Extended DFC – 310 Ceiling Batten to Timber/Steel
Stock Pack: 100 | Sub Pack: 100

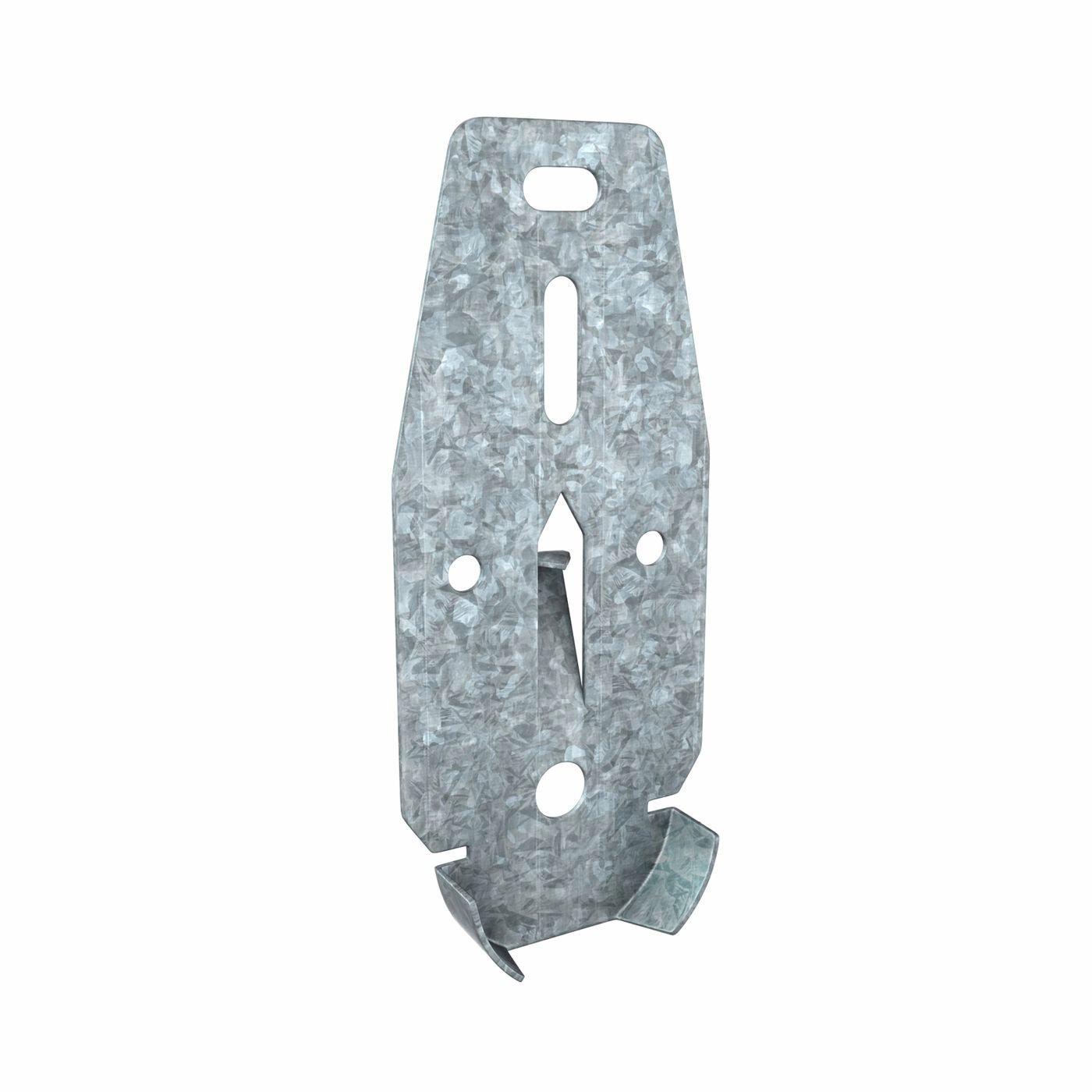

314 Direct Fix Clip Timber Steel 314

3 5/8 inch (h) x 1 5/8 inch (w) DFC with Positioning Tab – 301 Ceiling Batten to Timber/Steel
Stock Pack: 500 | Sub Pack: 100
315 Nail Up Batten Section Joiner 315

4 inch (l) x 1 1/2 inch (w) Section Joiner – suits 301 Ceiling Batten
Stock Pack: 200 | Sub Pack: 200
315 Nail Up Batten Section Joiner 315

4 inch (l) x 1 1/2 inch (w) Section Joiner – suits 301 Ceiling Batten
Stock Pack: 200 | Sub Pack: 200
Aluminium_Direct_Fix_Bulkhead_Trim-35.jpg 321

Aluminium Direct Fix Bulkhead Trim for 1/2 inch Plasterboard – Tile White
Stock Pack: 12 | Sub Pack: 12
Available Lengths: 11ft 9-3/4in
Aluminium_Direct_Fix_Bulkhead_Trim-35.jpg 321

Aluminium Direct Fix Bulkhead Trim for 1/2 inch Plasterboard – Tile White
Stock Pack: 12 | Sub Pack: 12
Available Lengths: 11ft 9-3/4in
321 Aluminium Direct Fix Bulkhead Trim 321

Aluminium Direct Fix Bulkhead Trim for 1/2 inch Plasterboard – Tile White
Stock Pack: 20 | Sub Pack: 10
Available Lengths: 11ft 9-3/4in
321 Aluminium Direct Fix Bulkhead Trim 321

Aluminium Direct Fix Bulkhead Trim for 1/2 inch Plasterboard – Tile White
Stock Pack: 12 | Sub Pack: 12
Available Lengths: 11ft 9-3/4in
Recessed_Furring_Channel_333-28.jpg 333

1/2 inch (h) x 2 1/2 inch (w) Recessed Furring Channel
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 4
Available Length: 19ft 9in
Recessed_Furring_Channel_333-28.jpg 333

1/2 inch (h) x 2 1/2 inch (w) Recessed Furring Channel
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 4
Available Length: 19ft 9in
140, 141, 143, 340 Furring Channel Wall Track Trim 340

1 3/8 inch (h) x 7/8 inch & 1 1/2 inch (uneven leg) Wall Track - suits 310 Ceiling Batten
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Special Order Length: 9ft 10in
140, 141, 143, 340 Furring Channel Wall Track Trim 340

1 3/8 inch (h) x 7/8 inch & 1 1/2 inch (uneven leg) Wall Track - suits 310 Ceiling Batten
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Special Order Length: 9ft 10in

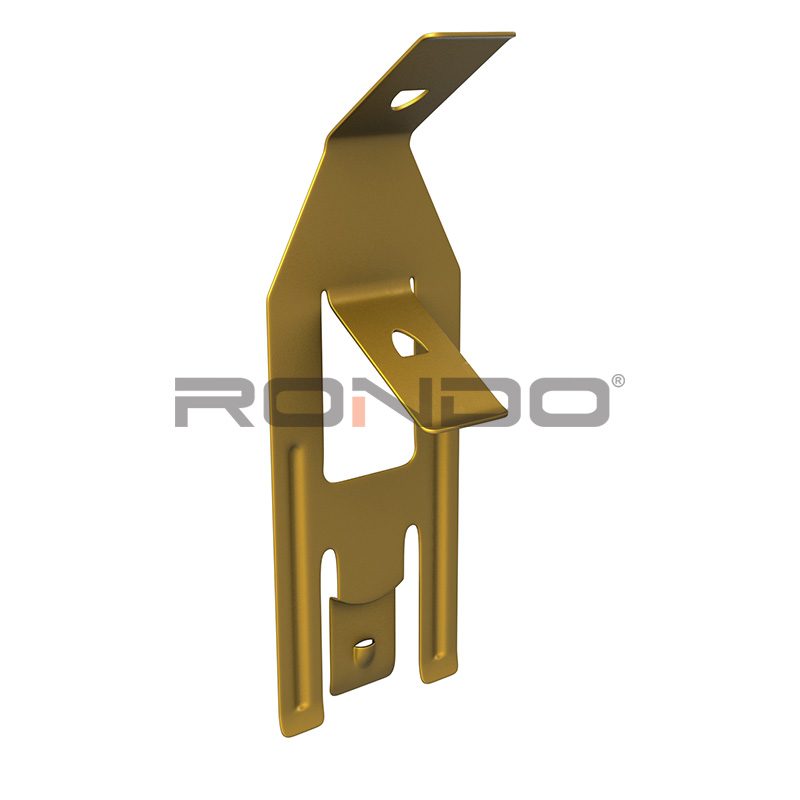

356 Suspension Clip 356

Spring Adjustable Suspension Clip to suit 359 Aluminium Main Tee
Stock Pack: 250 | Sub Pack: 250

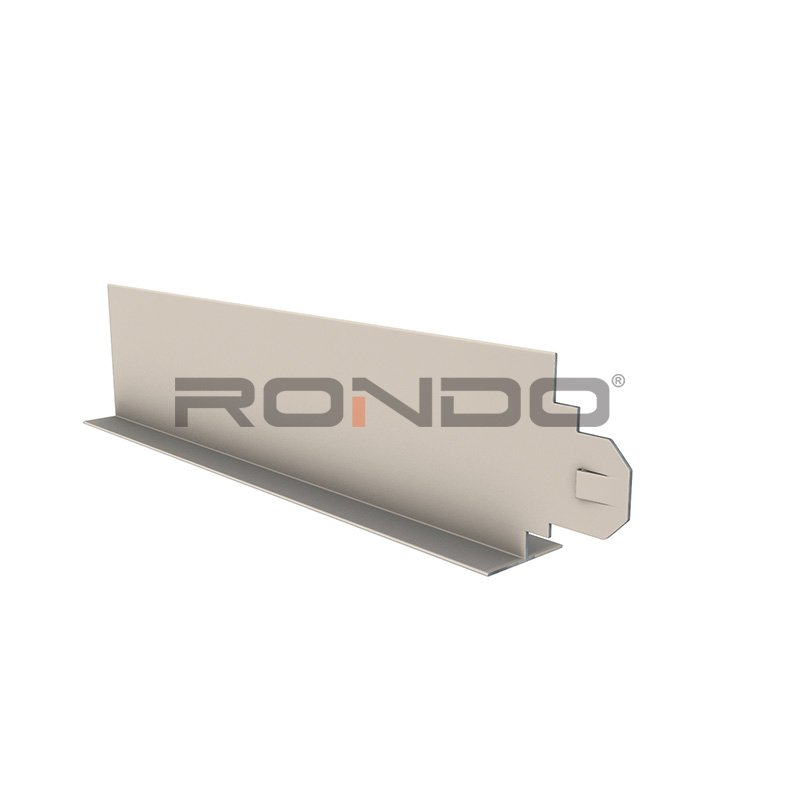

357 Cross Tee 357

1 1/2 inch (h) x 7/8 inch (face) Aluminium Lightweight Cross Tee
Stock Pack: 68 | Sub Pack: 68
Available Lengths: 23 5/8 inch, 3ft 11-1/4in

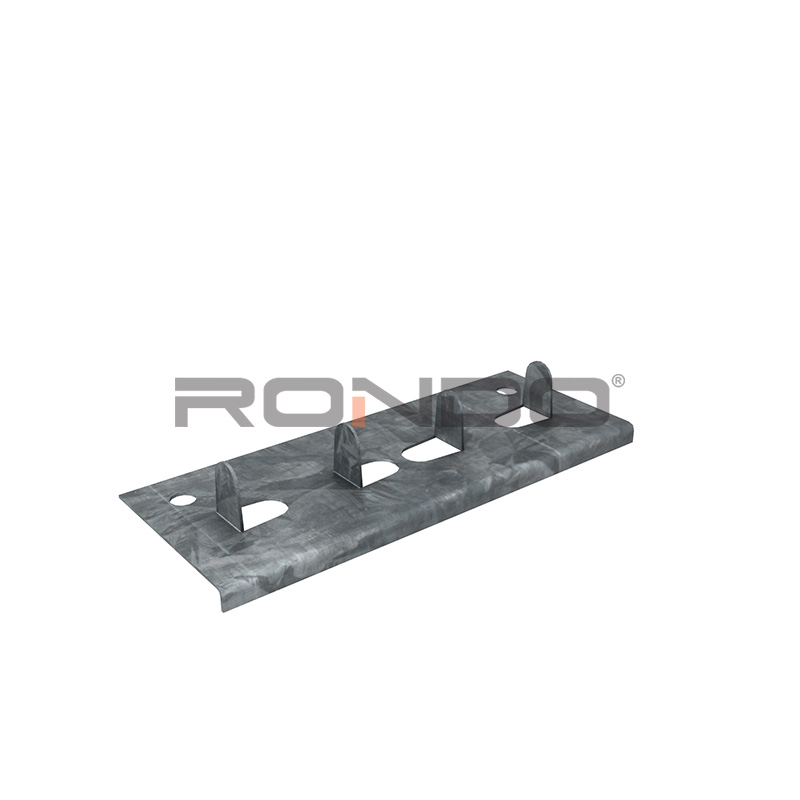

358 Main Tee Joiner 358

359 Aluminium Main Tee Joiner
Stock Pack: 250 | Sub Pack: 250
359 Cross Tee Lightweight 359

1 1/2 inch (h) x 7/8 inch (face) Aluminium Lightweight Main Tee
Stock Pack: 24 | Sub Pack: 24
Available Length: 11ft 9-3/4in

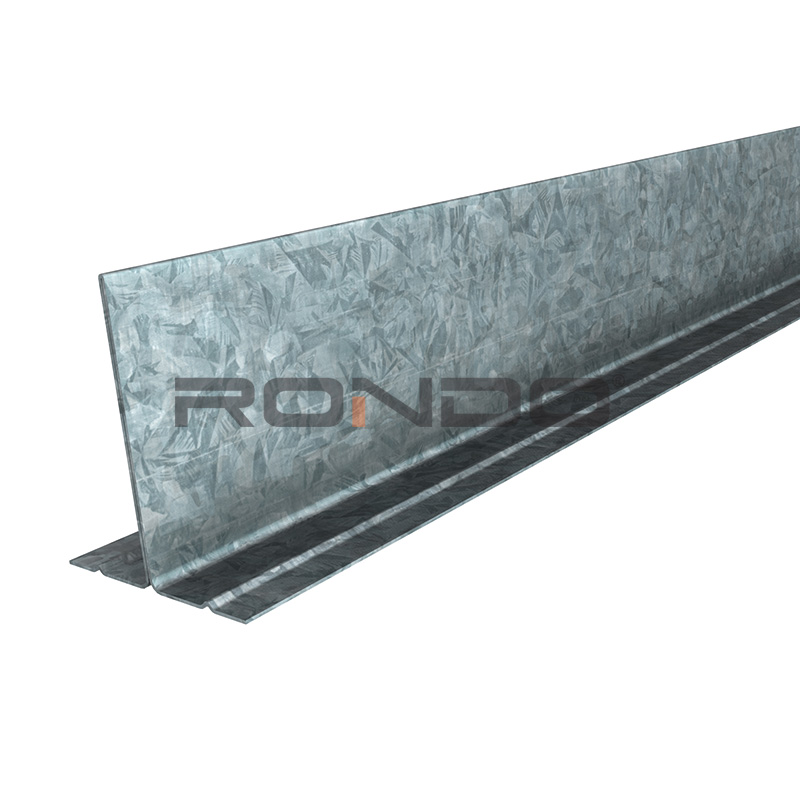

371 Concealed T Spline 371

7/8 inch (h) x 11/16 inch (w) Concealed T-Spline – suits DUO1 Main Tee
Stock Pack: 500 | Sub Pack: 10
Special Order Length: 3ft 10-1/4in
371 Concealed T Spline 371

7/8 inch (h) x 11/16 inch (w) Concealed T-Spline – suits DUO1 Main Tee
Stock Pack: 500 | Sub Pack: 10
Special Order Length: 3ft 10-1/4in

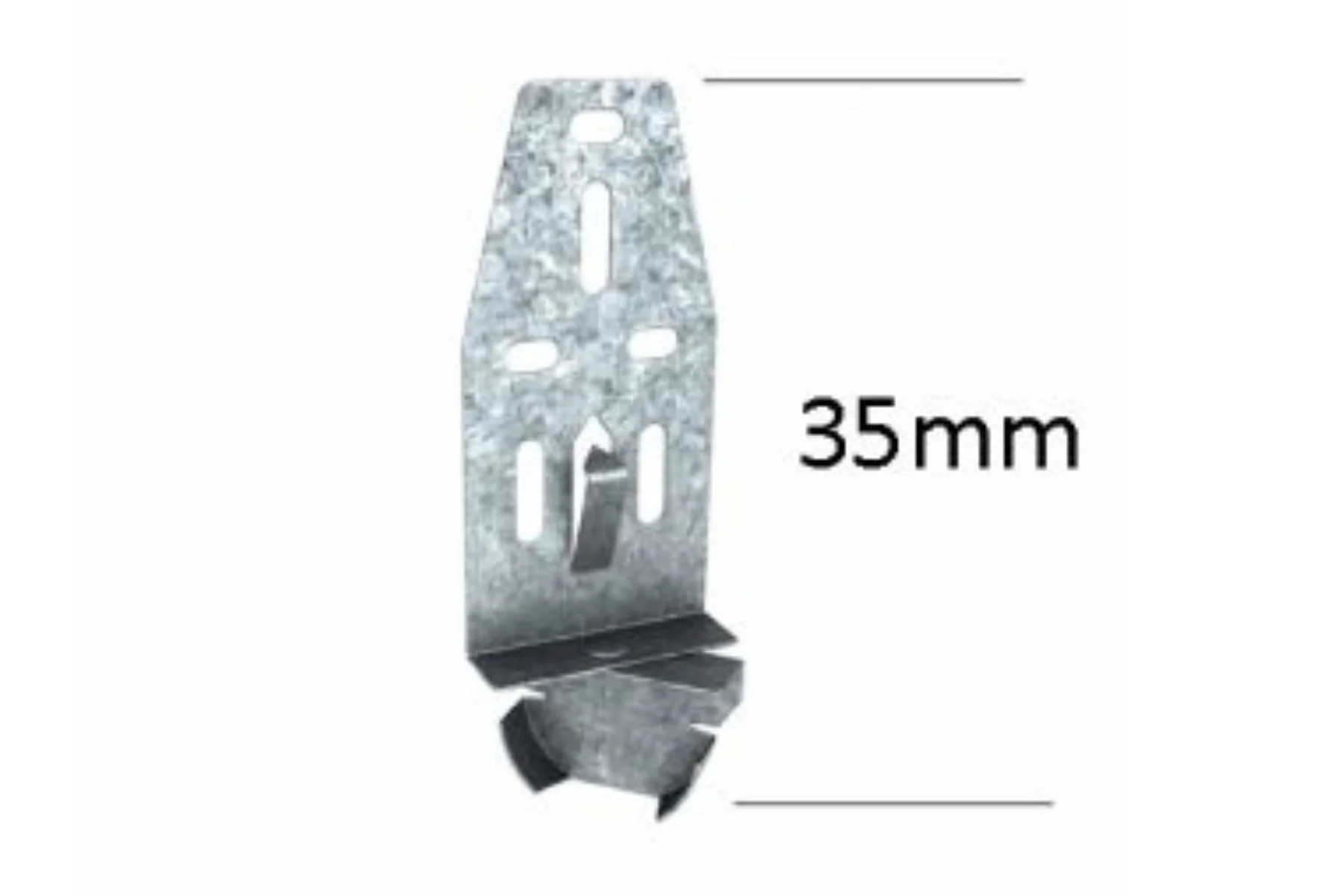

390 Direct Fix Batten Swivel Clip 390

4 1/4 inch (h) x 1 5/8 inch (w) Swivel DFC – 301 Ceiling Batten to Timber/Steel
Stock Pack: 200 | Sub Pack: 200
394 Direct Fix Clip Timber Steel 394

7 1/2 inch (h) x 2 5/8 inch (w) DFC – 129/308/309A Furring Channel to Timber/Steel
Stock Pack: 100 | Sub Pack: 100
Steel_Wall_Track_Hem-311.jpg 400

2 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Stud_Hem-313.jpg 401

2 inch (w) x 1 1/2 inch (h) Steel Stud with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in
Special Order Lengths: 7ft 10-1/2in, 10ft 9in
Steel_Wall_Track_Hem-311.jpg 402

3 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
Special Order Length: 11ft 9-3/4in
Steel_Wall_Stud_Hem-314.jpg 403

3 inch (w) x 1 1/2 inch (h) Steel Stud with Hem
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 13ft 9in, 15ft 9in
Special Order Length: 10ft 9in

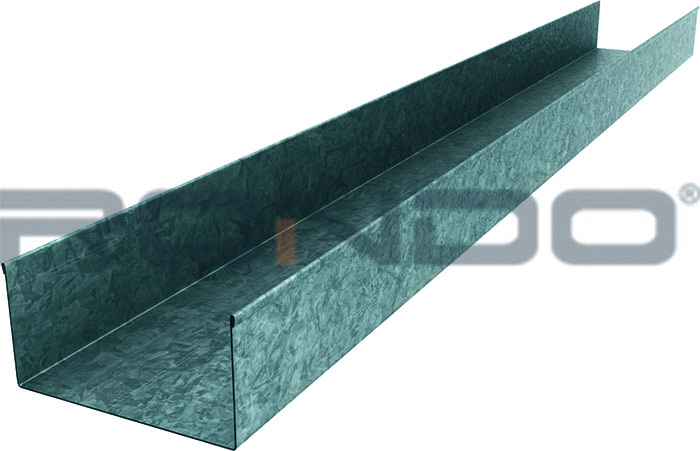

Steel_Wall_Deflection_Head_Track_Hem-312.jpg 480

2 1/2 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 10
Special Order Length: 9ft 10in
Steel_Wall_Deflection_Head_Track_Hem-312.jpg 482

3 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 10
Special Order Length: 9ft 10in
Steel_Wall_Deflection_Head_Track_Hem-312.jpg 483

3 5/8 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 10
Special Order Length: 9ft 10in

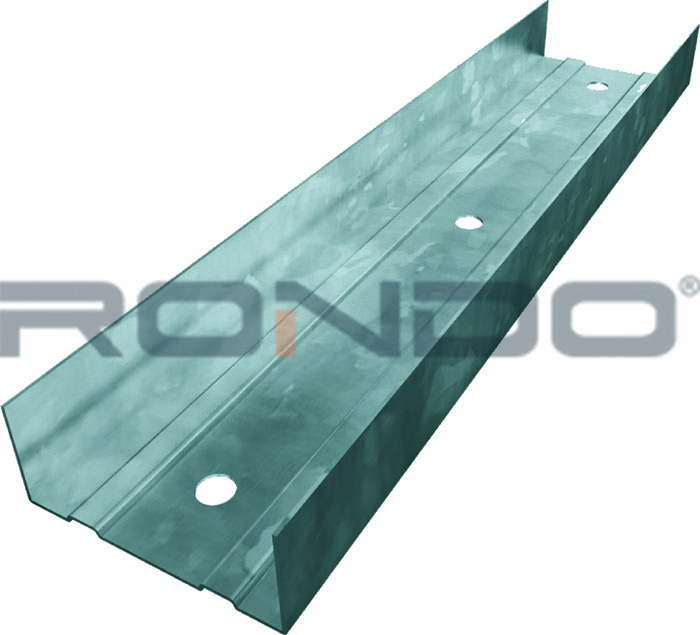

Steel_Wall_Deflection_Head_Track-318.jpg 488

2 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 22ga | Stock Pack: 50 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 489

2 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 10
Special Order Length: 9ft 10in
Steel_Wall_Track_Hem-317.jpg 490

2 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Special Order Length: 9ft 10in
Steel_Wall_Stud-320.jpg 491

2 1/2 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 15ft 9in
Steel_Wall_Track_Hem-317.jpg 492

2 3/8 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 493

3 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 15ft 9in
Special Order Length: 19ft 9in
Steel_Wall_Track_Hem-317.jpg 494

3 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 495

3 5/8 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 21ga | Stock Pack: 80 | Sub Pack: 10
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 13ft 9in, 15ft 9in, 19ft 9in
Steel_Wall_Track_Hem-317.jpg 496

3 5/8 inch (w) x 1 1/8 inch (h) Wall Track with Hem
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-318.jpg 497

2 1/2 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 22ga | Stock Pack: 50 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-318.jpg 498

3 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 22ga | Stock Pack: 50 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-318.jpg 499

3 5/8 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 22ga | Stock Pack: 50 | Sub Pack: 10
Available Length: 9ft 10in

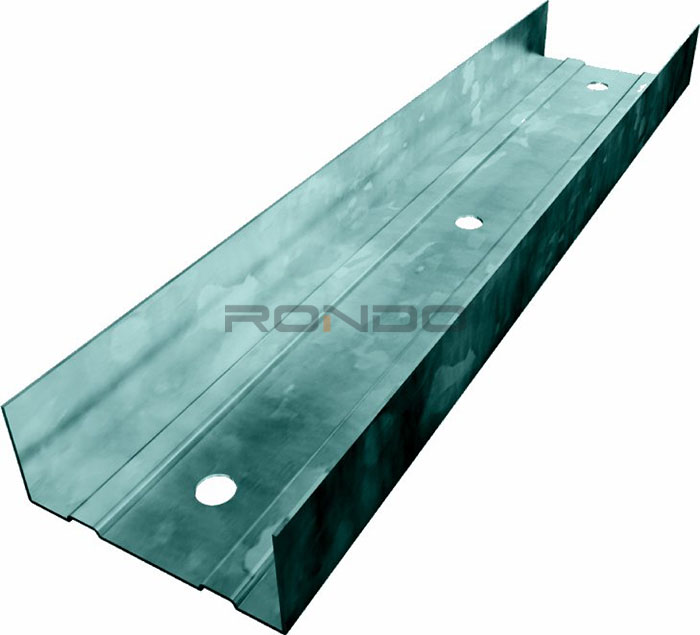

Steel_Wall_Deflection_Head_Track-2772.jpg 499

3 5/8 inch (w) x 2 inch (h) Deflection Head Track with Hem
Thickness: 22ga | Stock Pack: 50 | Sub Pack: 10
Available Length: 9ft 10in

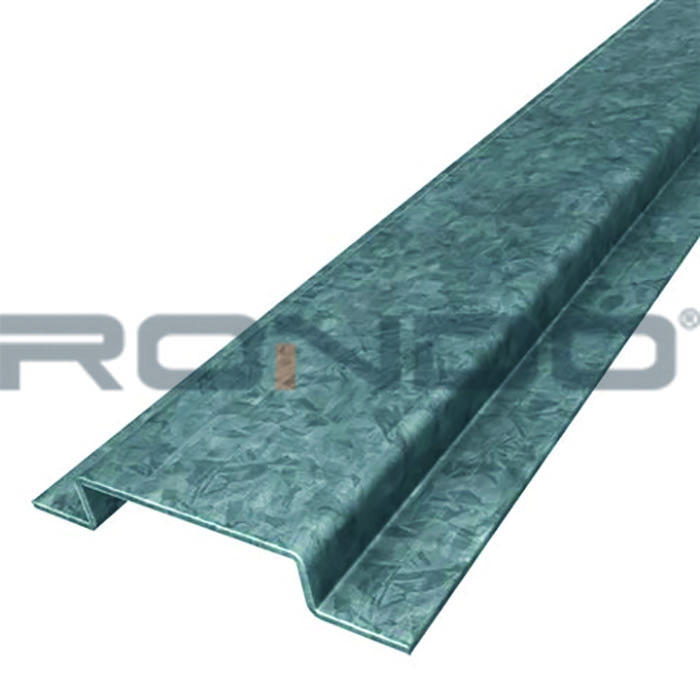

Steel_Continuous_Ply_Nogging_Bracket-321.jpg 501

Continuous Nogging Bracket
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 1
Available Length: 7ft 10-1/2in
Steel_Nogging_Track-322.jpg 503

2 inch (w) Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 17 3/4 inch, 23 5/8 inch
Steel_Nogging_Track-322.jpg 504

2 1/2 inch (w) Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Special Order Centres: 17 3/4 inch, 23 5/8 inch
Steel_Nogging_Track-322.jpg 505

3 inch (w) Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in
Centres: 17 3/4 inch, 23 5/8 inch
Steel_Nogging_Track-322.jpg 506

3 5/8 inch (w) Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Lengths: 11ft 9-3/4in
Centres: 17 3/4 inch, 23 5/8 inch
506 & 507 Nogging Track 506

3 5/8 inch (w) Nogging Track
Thickness: 22ga | Stock Pack: 100 | Sub Pack: 10
Available Length: 11ft 9-3/4in | Centres: 17 3/4 inch, 23 5/8 inch

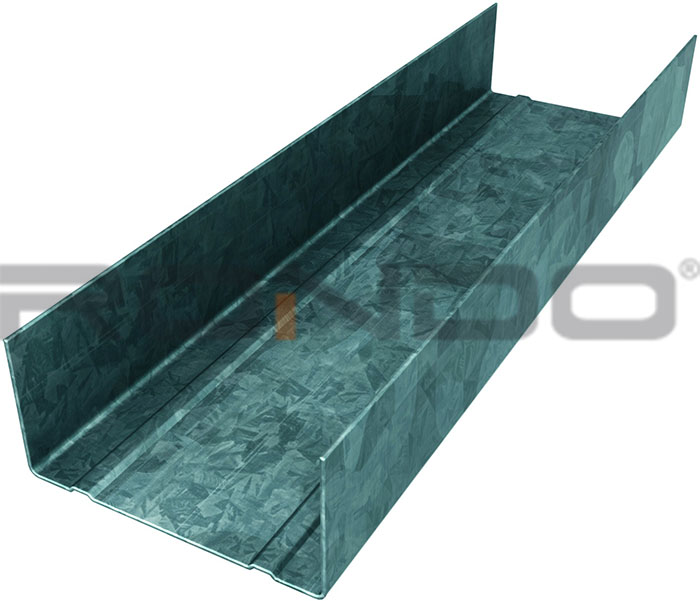

Steel_Wall_Deflection_Head_Track_Heavy_510-319.jpg 510

6 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 21ga | Stock Pack: 30 | Sub Pack: 10
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 511

6 inch (w) x 1 1/2 inch (h) Wall Stud
Thickness: 21ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 15ft 9in, 19ft 9in
Special Order Length: 23ft 7-1/2in
530 Heavy Duty Angle 530

2 inch (h) x 2 inch (w) Heavy Duty Angle
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 1
Special Order Length: 7ft 10-1/2in

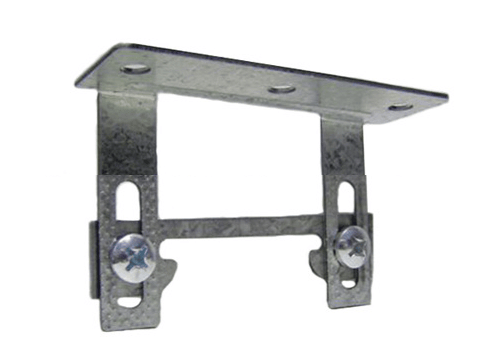

534 Adjustable Suspension Hanger Purlins 534

4 1/4 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel
Stock Pack: 250 | Sub Pack: 250
534 Adjustable Suspension Hanger Purlins 534

4 1/4 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel
Stock Pack: 250 | Sub Pack: 250
534 Adjustable Suspension Hanger Purlins 534

4 1/4 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel
Stock Pack: 250 | Sub Pack: 250
534 Adjustable Suspension Hanger Purlins 534

4 1/4 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel
Stock Pack: 250 | Sub Pack: 250
534 Adjustable Suspension Hanger Purlins 534

4 1/4 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel
Stock Pack: 250 | Sub Pack: 250
535 Top Hat Cleat 535

1 3/8 inch (w) x 1 3/8 inch (h) Top Hat Cleat to suit 2 inch face Top Hats
Thickness: 14ga | Stock Pack: 50 | Sub Pack: 50
L_Bracket-98.jpg 545

2 7/8 inch (h) x 2 7/8 inch (w) x 2 1/4 inch (l) ‘L’ Bracket
Thickness: 16ga | Stock Pack: 200 | Sub Pack: 200
L_Bracket-98.jpg 545

2 7/8 inch (h) x 2 7/8 inch (w) x 2 1/4 inch (l) ‘L’ Bracket
Thickness: 16ga | Stock Pack: 200 | Sub Pack: 200
L_Bracket-98.jpg 545

2 7/8 inch (h) x 2 7/8 inch (w) x 2 1/4 inch (l) ‘L’ Bracket
Thickness: 16ga | Stock Pack: 200 | Sub Pack: 200
*Special Order

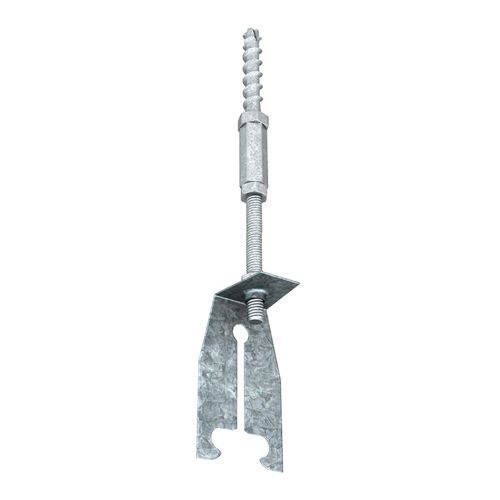

547 Adjustable Suspension Bracket Concrete 547

3 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete
Stock Pack: 250 | Sub Pack: 250
547 Adjustable Suspension Bracket Concrete 547

3 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete
Stock Pack: 250 | Sub Pack: 250
547 Adjustable Suspension Bracket Concrete 547

3 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete
Stock Pack: 250 | Sub Pack: 250
547 Adjustable Suspension Bracket Concrete 547

3 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete
Stock Pack: 250 | Sub Pack: 250
547 Adjustable Suspension Bracket Concrete 547

3 inch (h) x 1 1/2 inch (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete
Stock Pack: 250 | Sub Pack: 250
550 Top Hat Cleat 550

1 3/8 inch (w) x 1 1/8 inch (h) Top Hat Cleat to suit 2 inch face Top Hats
Thickness: 14ga | Stock Pack: 50 | Sub Pack: 50
553 552

1 inch (w) x 1 inch (h) Angle
Thickness: 22ga | Stock Pack: 250 | Sub Pack: 10
Available Length: 11ft 9-3/4in
553 553

1 3/8 inch (h) x 1 3/8 inch (h) Angle
Thickness: 22ga | Stock Pack: 250 | Sub Pack: 10
Available Lengths: 8ft, 8ft 10-1/4in, 11ft 9-3/4in
553 554

2 inch (h) x 2 inch (h) Angle
Thickness: 22ga | Stock Pack: 250 | Sub Pack: 10
Available Length: 11ft 9-3/4in
555, 556, 557, 558 Heavy Duty Angle 555

3 inch (h) x 3 inch (w) Angle
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 1
Available Length: 7ft 10-1/2in
555, 556, 557, 558 Heavy Duty Angle 556

3 inch (h) x 3 inch (w) Heavy Duty Angle
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 1
Available Length: 7ft 10-1/2in
555, 556, 557, 558 Heavy Duty Angle 557

4 inch (h) x 4 inch (w) Angle
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 7ft 10-1/2in
555, 556, 557, 558 Heavy Duty Angle 558

4 inch (h) x 4 inch (w) Heavy Duty Angle
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 7ft 10-1/2in
559 559

2 inch (w) x 2 inch (h) Angle suitable for Speedpanel
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 1
Special Order Length: 11ft 9-3/4in

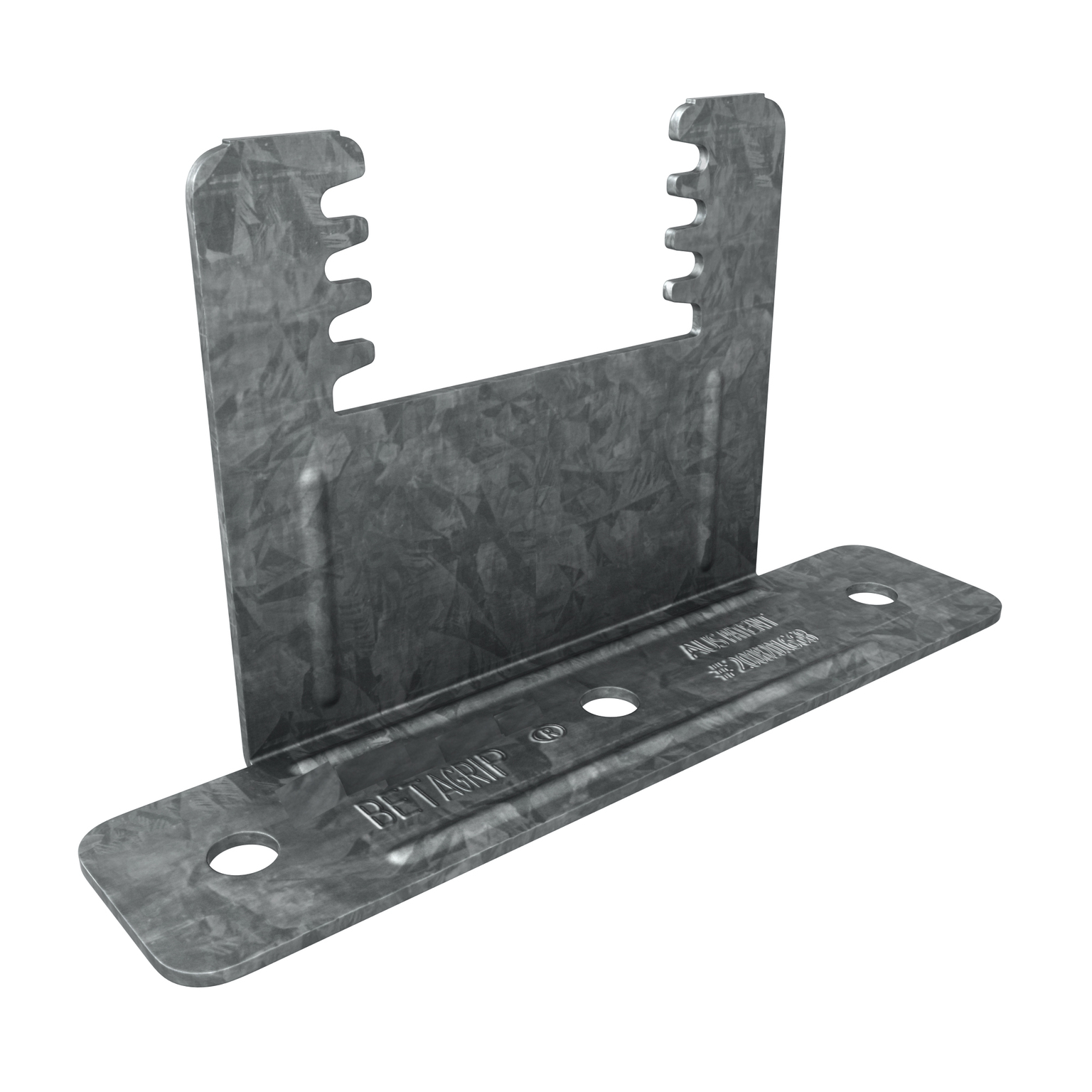

562 Duplex Clip 562

Universal DUPLEX Stud® Bracket
Stock Pack: 50 | Sub Pack: 50
564 567 569 Clip 564

Header Bracket to suit 2 1/2 inch DUPLEX Stud®
Stock Pack: 50 | Sub Pack: 50
564 567 569 Clip 567

Header Bracket to suit 3 inch DUPLEX Stud®
Stock Pack: 50 | Sub Pack: 50
564 567 569 Clip 569

Header Bracket to suit 3 5/8 inch DUPLEX Stud®
Stock Pack: 50 | Sub Pack: 50
570, 572, 574, 590, 592, 594 CH Stud 570

2 1/2 inch (w) x 1 3/8 inch (h) ‘CH’ Stud to suit 1 inch Board
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 9ft 10in, 11ft 9-3/4in
570, 572, 574, 590, 592, 594 CH Stud 572

2 1/2 inch (w) x 1 3/8 inch (h) ‘CH’ Stud to suit 1 inch Board
Thickness: 20ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 4ft 9-1/4in
E Stud 574

2 1/2 inch (w) x 1 inch (h) ‘E’ Stud to suit 1 inch Board
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 9ft 10in, 11ft 9-3/4in
578, 598 J Runner Track 578

2 1/2 inch (w) x 2 1/4 inch & 1 inch (uneven leg) ‘J’ Runner Track to suit 570/572/574 Studs
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
579, 599 Deflection Head Track 579

2 1/2 inch (w) x 3 inch & 2 inch (uneven leg) Deflection Head Track to suit 570/572/574 Studs
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 9ft 10in

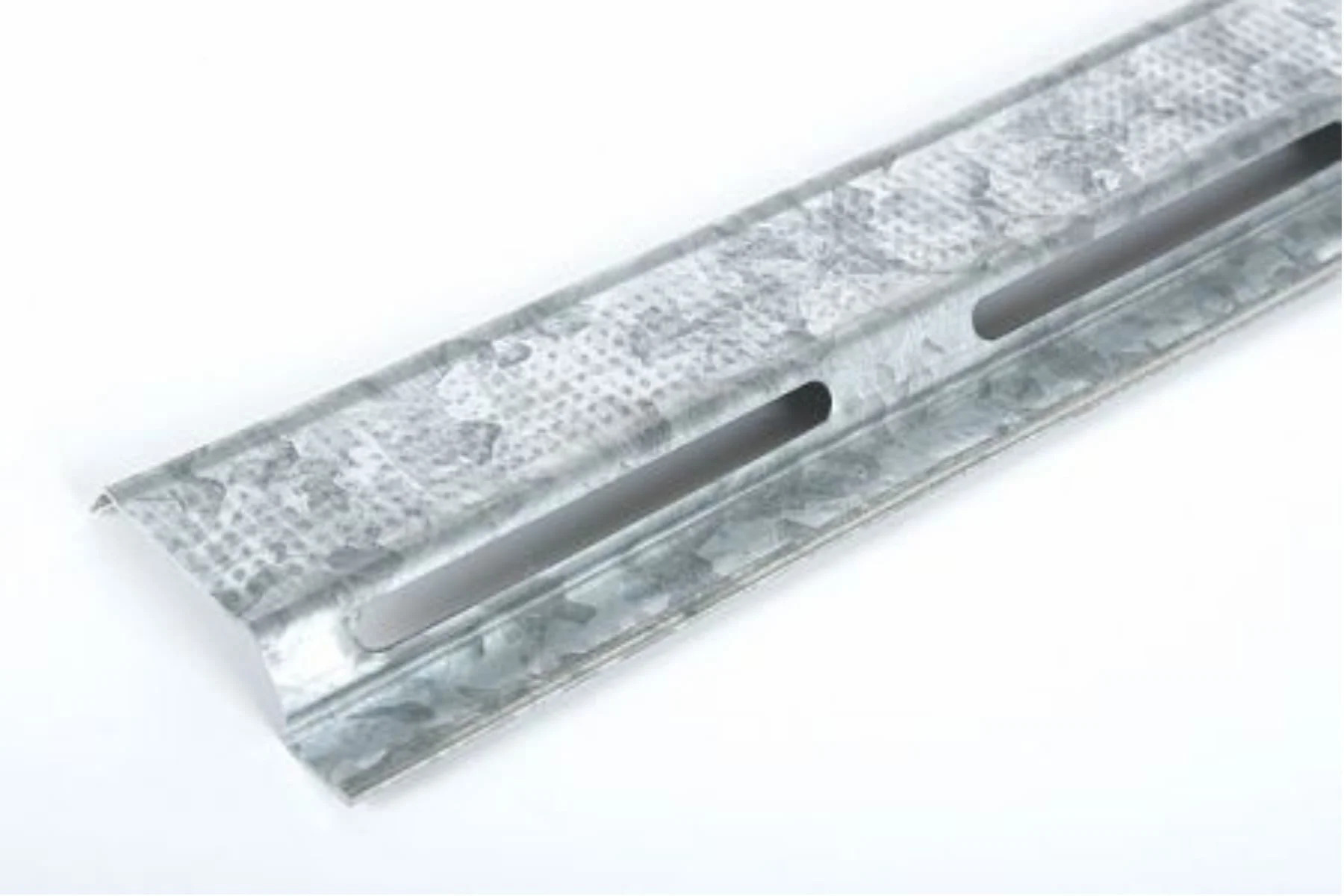

581 Acoustic Metal Resilient Furring Channel 581

5/8 inch (h) x 2 3/8 inch (w) Resilient Channel
Thickness: 25ga | Stock Pack: 200 | Sub Pack: 10
Available Length: 11ft 9-3/4in

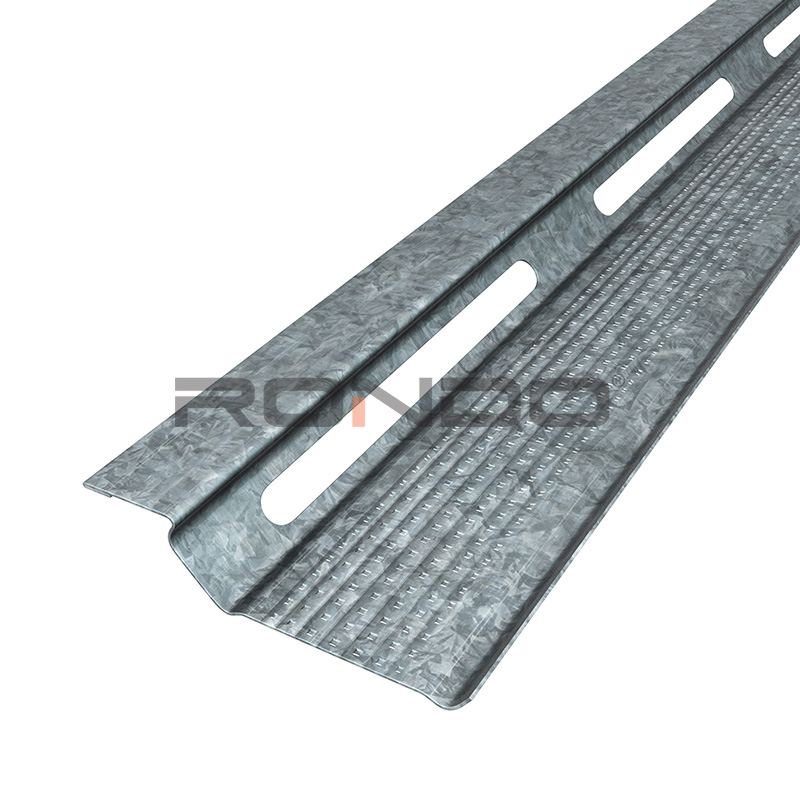

581 Metal Resilient Furring Channel 581

5/8 inch (h) x 2 3/8 inch (w) Resilient Channel
Thickness: 25ga | Stock Pack: 200 | Sub Pack: 10
Available Length: 11ft 9-3/4in
570, 572, 574, 590, 592, 594 CH Stud 590

4 inch (w) x 1 3/8 inch (h) ‘CH’ Stud to suit 1 inch Board
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 14ft 1in
570, 572, 574, 590, 592, 594 CH Stud 592

4 inch (w) x 1 3/8 inch (h) ‘CH’ Stud to suit 1 inch Board
Thickness: 20ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 18ft 0-1/4in
570, 572, 574, 590, 592, 594 CH Stud 594

4 inch (w) x 1 inch (h) ‘E’ Stud to suit 1 inch Board
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 14ft 1in
578, 598 J Runner Track 598

4 inch (w) x 3 inch & 1 inch (uneven leg) ‘J’ Runner Track to suit 590/592/594 Studs
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
579, 599 Deflection Head Track 599

4 inch (w) x 3 inch & 2 inch (uneven leg) Deflection Head Track to suit 590/592/594 Studs
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-2119.jpg 660

2 1/2 inch (w) x 1 1/4 inch (h) Wall Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 661

2 1/2 inch (w) x 1 1/2 inch (h) Wall Stud
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in
Steel_Wall_Deflection_Head_Track-2122.jpg 663

2 1/2 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-2120.jpg 670

3 inch (w) x 1 1/4 inch (h) Wall Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-2123.jpg 673

3 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-2121.jpg 680

3 5/8 inch (w) x 1 1/4 inch (h) Wall Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
680 Wall Track 680

3 5/8 inch (w) x 1 1/4 inch (h) Wall Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 681

3 5/8 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 13ft 9in, 15ft 9in, 19ft 9in, 23ft 7-1/2in
681 Wall Stud 681

3 5/8 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 15ft 9in, 19ft 9in, 23ft 7-1/2in
Steel_Wall_Deflection_Head_Track-2124.jpg 683

3 5/8 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Deflection_Head_Track-2125.jpg 690

6 inch (w) x 2 inch (h) Deflection Head Track
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Available Length: 9ft 10in
690 Deflection Wall Track 690

6 inch (w) x 2 inch (h) Wall Track
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Available Length: 9ft 10in
Steel_Wall_Stud-320.jpg 691

6 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 15ft 9in, 19ft 9in, 23ft 7-1/2in
Wall_Stud-153.jpg 691

6 inch (w) x 1 1/2 inch (h) Steel Stud
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 15ft 9in, 19ft 9in, 23ft 7-1/2in
Special Order Length: 11ft 9-3/4in
700 Spring Adjustable Suspension Hanger Clip 700

Adjustable Suspension Clip – 121 Rod to DUO® Main Tee
Stock Pack: 400 | Sub Pack: 400
701 Thread Adjustable Suspension Hanger Clip 701

Adjustable Suspension Clip – 15/64 in Thread – 122 Threaded Rod to DUO1 Main Tee
Stock Pack: 500 | Sub Pack: 100
702 Direct Fix Hanger Timber Steel 702

5 inch (h) Direct Fix Clip – DUO1 Main Tee to Timber/Steel 0.020 250
Stock Pack: 250 | Sub Pack: 250
703 Tile Hold Down Clip 703

5 inch (h) Direct Fix Clip – DUO1 Main Tee to Timber/Steel 0.020 250
Stock Pack: 500 | Sub Pack: 100
704 Partition Mounting Clip 704

Partition Mounting Clip to suit 51/64/76/92/6 inch Wall Studs
Stock Pack: 50 | Sub Pack: 50
705 Stabiliser Clip Main Tee Cross Tee 705

Stabiliser Clip to suit DUO5/DUO8 – Main/Cross Tees
Stock Pack: 500 | Sub Pack: 100
707 Interchange Clip 707

Interchange Clip – 127 Top Cross Rail to DUO1 Main Tee
Stock Pack: 250 | Sub Pack: 500
709 Joiner 709

7/8 inch (h) x 9/16 inch (w) x 2 1/8 inch (I) Joiner - DUO5 Wall Angle
Stock Pack: 250 | Sub Pack: 250
709 Joiner 709

7/8 inch (h) x 9/16 inch (w) x 2 1/8 inch (I) Joiner - DUO5 Wall Angle
Stock Pack: 250 | Sub Pack: 250
709 Joiner 709

Joiner: DUO5 Wall Angle
Stock Pack: 250 | Sub Pack: 250
713 Linear Air Diffuser Spacer 3 Tee Bar 713

Linear Air Diffuser Spacer Clip – Supports 3 Tee Sections at 2 inch Centres
Stock Pack: 100 | Sub Pack: 100

*Special Order
719 Hooked Adjustable Suspension Hanger Clip 719

Adjustable Suspension Clip –  Hooked – suits 121 Rod
Stock Pack: 500 | Sub Pack: 500
735 Top Hat Cleat 735

2 3/4 inch (w) x 1 3/8 inch (h) Top Hat Cleat to suit 3 inch face Top Hats
Thickness: 14ga | Stock Pack: 50 | Sub Pack: 50
750 Top Hat Cleat 750

2 3/4 inch (w) x 1 1/8 inch (h) Top Hat Cleat to suit 3 inch face Top Hats
Thickness: 14ga | Stock Pack: 50 | Sub Pack: 50
888 888

SNAP-LOCK Nogging®
Thickness: 25ga | Stock Pack: 100 | Sub Pack: 1
Available Length: 11ft 9-3/4in | Centres: 13 3/4 inch, 17 3/4 inch, 19 5/8 inch, 62 inch
Direct_Fix_Clip_Top_Cross_Rail_Assembly-54.jpg A124

Top Cross Rail Assembly Clip with Adjustable Through Bolt
Stock Pack: 200 | Sub Pack: 200
Available Length: 3 3/8 inch
Special Order Lengths: 1 1/2 inch, 4 inch, 4 3/4in, 6 inch, 7 inch
Back_Blocking_Batten-29.jpg B005

5/8 inch (h) x 1 1/2 inch (w) Back Blocking Batten
Thickness: 26ga | Stock Pack: 50 | Sub Pack: 50
Direct_Fix_Standard_Clip-63.jpg BG01

1 1/8 inch (h) BETAGRIP® Standard DFC – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200
Direct_Fix_Long_Clip-59.jpg BG02

1 7/8 inch (h) BETAGRIP® Long DFC – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200

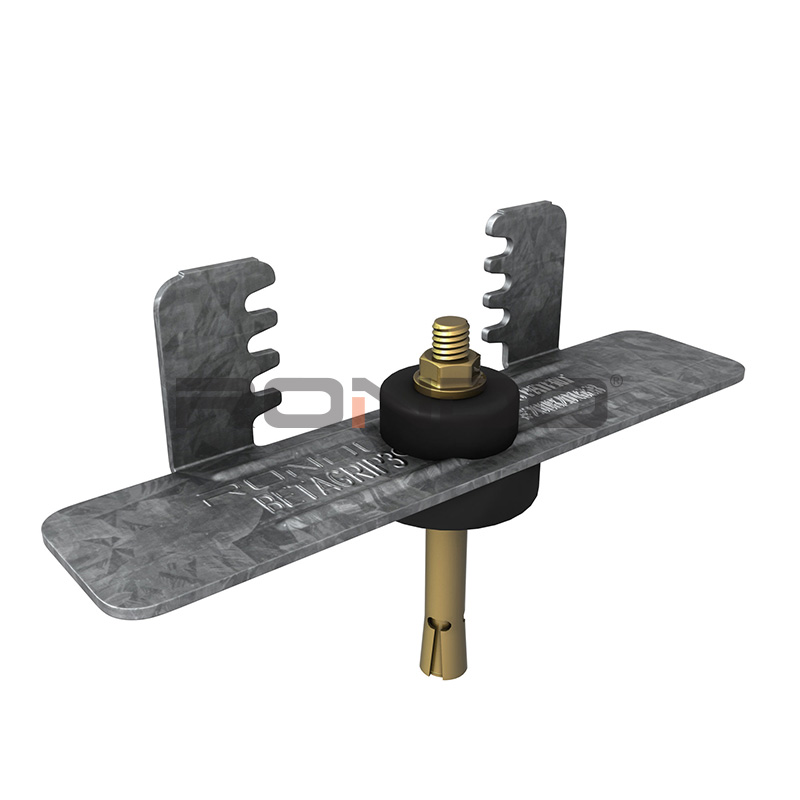

BG03 BG03

BetaGrip®  3 Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A - M6 Adjustable Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
BG03 NTB BG03-NTB

BetaGrip®  3 Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A - No Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
Direct_Fix_Double_Membrane_Insulation_Clip-55.jpg BG05

2 1/2 inch (h) BETAFIL® Double Membrane Insulation DFC – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200
BG05K Direct Fix Furring Channel Clip BG05K

2 1/2 inch (h) BETAFIL® Semi–Rigid Insulation DFC – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200
*Special Order
DU64, DU76, DU92 Duplex Stud DU64

2 1/2 inch (w) x 2 3/8 inch (h) Rondo DUPLEX Stud®
Thickness: 22ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in
DU64, DU76, DU92 Duplex Stud DU76

3 inch (w) x 2 3/8 inch (h) Rondo DUPLEX Stud®
Thickness: 22ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 15ft 9in, 19ft 9in
DU64, DU76, DU92 Duplex Stud DU92

3 5/8 inch (w) x 2 3/8 inch (h) Rondo DUPLEX Stud®
Thickness: 22ga | Stock Pack: 30 | Sub Pack: 1
Available Lengths: 15ft 9in, 19ft 9in
DUO 1 Aluminium Cross Tee Tile White DUO1

1 1/2 inch (h) x 7/8 inch (face) Main Tee – Tile White – 4 inch Centres
Thickness: 28ga | Stock Pack: 24 | Sub Pack: 24
Available Length: 11ft 9-3/4in
DUO 2 Aluminium Cross Tee Tile White DUO2

1 3/8 inch (h) x 7/8 inch (face) Cross Tee – Tile White
Thickness: 28ga | Stock Pack: 68 | Sub Pack: 68
Available Lengths: 23 5/8 inch, 3ft 11-1/4in

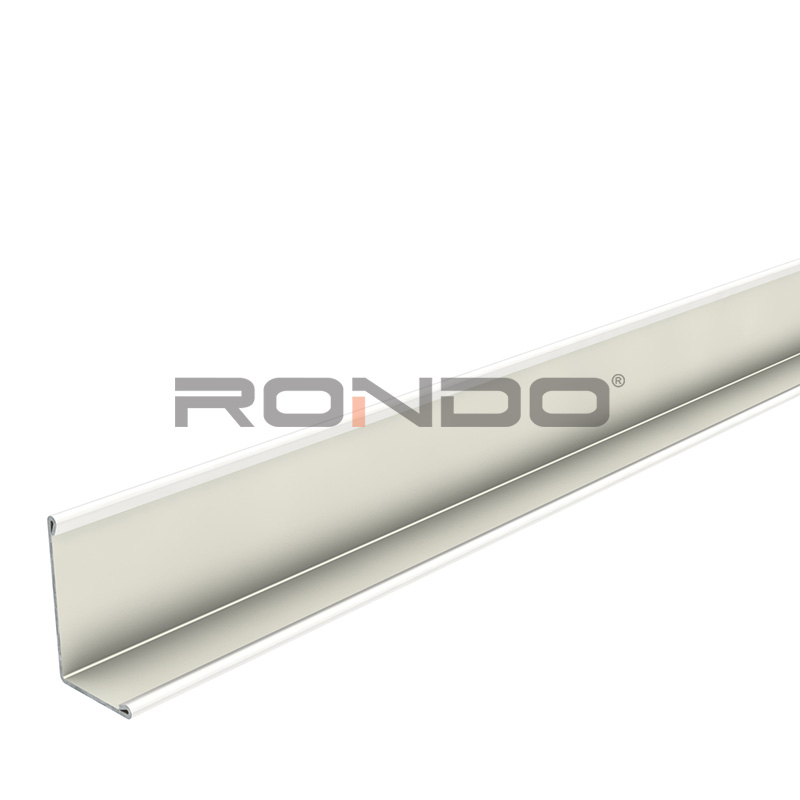

DUO 5 Steel Wall Angle Bulkhead Trim DUO5

1 inch (h) x 3/4 inch (w) Steel Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 5 Steel Wall Angle Bulkhead Trim DUO5

1 inch (h) x 3/4 inch (w) Steel Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Length: 11ft 9-3/4in
DUO 5 Steel Wall Angle Bulkhead Trim DUO5

1 inch (h) x 3/4 inch (w) Steel Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Length: 11ft 9-3/4in
DUO 6 Shadowline Steel Wall Angle DUO6

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Steel Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 6 Shadowline Steel Wall Angle DUO6

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Steel Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 6 Shadowline Steel Wall Angle DUO6

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Steel Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 9 Seismic Aluminium Shadowline DUO7

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Aluminium Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 36 | Sub Pack: 12
Available Length: 11ft 9-3/4in
DUO 9 Seismic Aluminium Shadowline DUO7

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Aluminium Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 36 | Sub Pack: 12
Available Length: 11ft 9-3/4in
DUO 7 Shadowline Angle DUO7

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Aluminium Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 36 | Sub Pack: 12
Available Length: 11ft 9-3/4in
DUO 7 Shadowline Angle DUO7

3/4 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 9/16 inch (w) Aluminium Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 36 | Sub Pack: 12
Available Length: 11ft 9-3/4in
DUO 8 Aluminium Wall Angle DUO8

1 1/4 inch (h) x 3/4 inch (w) Aluminium Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 8 Aluminium Wall Angle DUO8

1 1/4 inch (h) x 3/4 inch (w) Aluminium Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 8 Aluminium Wall Angle DUO8

1 1/4 inch (h) x 3/4 inch (w) Aluminium Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
DUO 8 Aluminium Wall Angle DUO8

1 1/4 inch (h) x 3/4 inch (w) Aluminium Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 24
Available Lengths: 11ft 9-3/4in
Seismic_Aluminium_Shadowline_Perimeter_Trim-113.jpg DUO9

5/8 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 3/4 inch (w) Seismic Aluminium Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 8 | Sub Pack: 8
Special Order Length: 11ft 9-3/4in
Seismic_Aluminium_Shadowline_Perimeter_Trim-113.jpg DUO9

5/8 inch (h) x 3/8 inch (w) x 3/8 inch (h) x 3/4 inch (w) Seismic Aluminium Shadowline Wall Angle – Tile White
Thickness: 25ga | Stock Pack: 8 | Sub Pack: 8
Special Order Length: 11ft 9-3/4in

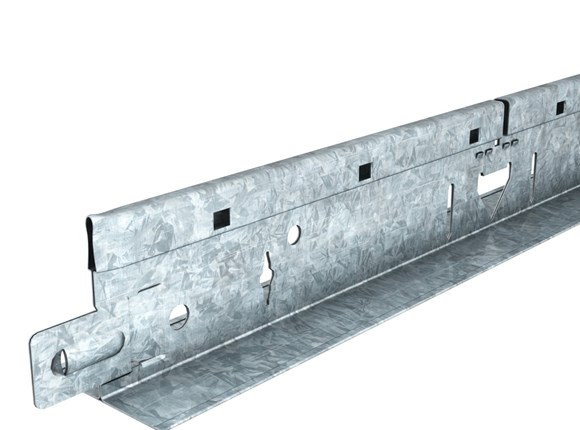

DX1 Main Tee DX1

1 1/2 inch (h) x 7/8 inch (face) Main Tee
Thickness: 28ga | Stock Pack: 20 | Sub Pack: 1
Available Length: 11ft 9-3/4in
DX1 Main Tee DX1H

1 1/2 inch (h) x 7/8 inch (face) Heavy Duty Main Tee
Thickness: 27ga | Stock Pack: 20 | Sub Pack: 1
Available Length: 11ft 9-3/4in
DXCL DXCL

Adjustable Suspension Clip - 121 Rod to Main Tee
Stock Pack: 500 | Sub Pack: 1
DXCL DXCL

Adjustable Suspension Clip - 121 Rod to Main Tee
Stock Pack: 500 | Sub Pack: 500
Direct_Fix_Sliding_Adjustable_Furring_Channel_Clip-61.jpg FC-INFIN0030

1 1/4 inch (h) Sliding Adjustable DFC – suits 129/308/309A Furring Channel
Stock Pack: 400 | Sub Pack: 50

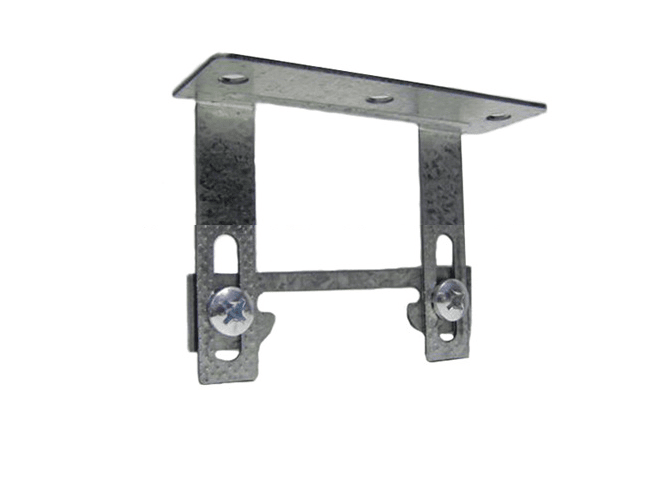

FC INFIN0080 FC-INFIN0080

1 1/8 inch (h) Long Sliding Adjustable DFC – suits 129/308/309A Furring Channel
Stock Pack: 200 | Sub Pack: 200
515, 525, 535, 545, 550, 560 Top Hat H515

2 inch (face) x 9/16 inch (h) x 9/16 inch (flange) - Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in/span>
515, 525, 535, 545, 550, 560 Top Hat H525

2 inch (face) x 1 inch (h) x 13/16 inch (flange) - Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
515, 525, 535, 545, 550, 560 Top Hat H535

2 inch (face) x 1 3/8 inch (h) x 13/16 inch (flange) - Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
Special Order Length: 23ft 7-1/2in
515, 525, 535, 545, 550, 560 Top Hat H545

2 inch (face) x 1 3/8 inch (h) x 13/16 inch (flange) - Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 23ft 7-1/2in
515, 525, 535, 545, 550, 560 Top Hat H550

2 inch (face) x 2 inch (h) x 13/16 inch (flange) - Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
515, 525, 535, 545, 550, 560 Top Hat H560

2 inch (face) x 2 3/8 inch (h) x 13/16 inch (flange) - Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
715, 725, 735, 750 Top Hat H715

3 inch (face) x 9/16 inch (h) x 11/16 inch (flange) Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
715, 725, 735, 750 Top Hat H725

3 inch (face) x 1 inch (h) x 3/4 inch (flange) Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
715, 725, 735, 750 Top Hat H735

3 inch (face) x 1 3/8 inch (h) x 13/16 inch (flange) Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
715, 725, 735, 750 Top Hat H750

3 inch (face) x 2 inch (h) x 13/16 inch (flange) Top Hat
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 23ft 7-1/2in
HB50, HB75 Slotted Angle HB50

2 inch (h) x 2 inch (w) Slotted Angle
Thickness: 21ga | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 7ft 10-1/2in
HB50, HB75 Slotted Angle HB75

3 inch (h) x 3 inch (w) Slotted Angle
Thickness: 18ga | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 7ft 10-1/2in
515, 525, 535, 545, 550, 560 Top Hat M515

2 inch (face) x 9/16 inch (h) x 11/16 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in
Special Order Length: 19ft 9in
515, 525, 535, 545, 550, 560 Top Hat M525

2 inch (face) x 1 inch (h) x 3/4 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
515, 525, 535, 545, 550, 560 Top Hat M535

2 inch (face) x 1 3/8 inch (h) x 3/4 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
Special Order Length: 23ft 7-1/2in
515, 525, 535, 545, 550, 560 Top Hat M545

2 inch (face) x 1 3/8 inch (h) x 11/16 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
515, 525, 535, 545, 550, 560 Top Hat M550

2 inch (face) x 2 inch (h) x 3/4 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
515, 525, 535, 545, 550, 560 Top Hat M560

2 inch (face) x 2 3/8 inch (h) x 11/16 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
715, 725, 735, 750 Top Hat M715

3 inch (face) x 9/16 inch (h) x 13/16 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
715, 725, 735, 750 Top Hat M725

3 inch (face) x 1 inch (h) x 3/4 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
715, 725, 735, 750 Top Hat M735

3 inch (face) x 1 3/8 inch (h) x 3/4 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in, 19ft 9in
715, 725, 735, 750 Top Hat M750

3 inch (face) x 2 inch (h) x 13/16 inch (flange) Top Hat
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Special Order Length: 19ft 9in
MACS6 Suspension Anchor Bolt MACS6

2 9/16 inch M6 Adjustable Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
Special Order Lengths: 2 9/16 inch, 3 3/8 inch, 4 inch, 4 3/4in, 6 inch, 7 inch
MACS6 Suspension Anchor Bolt MACS6

2 9/16 inch M6 Adjustable Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
Special Order Lengths: 2 9/16 inch, 3 3/8 inch, 4 inch, 4 3/4in, 6 inch, 7 inch
MACS6 Suspension Anchor Bolt MACS6

2 9/16 inch M6 Adjustable Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
Special Order Lengths: 2 9/16 inch, 3 3/8 inch, 4 inch, 4 3/4in, 6 inch, 7 inch
P01 Corner Bead Mini Perforated P01

90° External Corner Bead  - Perforated Profile with 1 1/8 inch Leg
Thickness: 28ga | Stock Pack: 480 | Sub Pack: 20
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in
Plaster_Shadowline_Casing_Bead-202.jpg P06

Shadowline Casing Bead - 3/8 inch Recess for 1/2 inch Building Board
Thickness: 25ga | Stock Pack: 200 | Sub Pack: 10
Available Length: 9ft 10in
Plaster_Shadowline_Casing_Bead-202.jpg P09

Shadowline Casing Bead - 3/8 inch Recess for 1/2 inch Building Board
Thickness: 25ga | Stock Pack: 200 | Sub Pack: 10
Available Length: 9ft 10in
P11, 12, 13, 14 Stopping Bead P13

Plaster Stopping Bead to suit 1/2 inch Building Board
Thickness: 27ga | Stock Pack: 400 | Sub Pack: 20
Available Length: 9ft 10in
Special Order Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 11ft 9-3/4in
P25, 26, 27 Stopping Angle Long Leg P25

Plaster Stopping Angle suits 1/2 inch Board
Thickness: 27ga | Stock Pack: 500 | Sub Pack: 20
Available Length: 9ft 10in
P25, 26, 27 Stopping Angle Long Leg P26

Plaster Stopping Angle suits 1/2 inch Board
Thickness: 27ga | Stock Pack: 500 | Sub Pack: 20
Available Length: 9ft 10in
P25, 26, 27 Stopping Angle Long Leg P27

Plaster Stopping Angle suits 5/8 inch Board
Thickness: 27ga | Stock Pack: 500 | Sub Pack: 20
Available Length: 9ft 10in
P28 Stopping Angle Long Leg P28

Plaster Stopping Angle suits 1/2 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 20
Available Length: 9ft 10in
P50 P50

Shadowline Stopping Angle - 3/8 inch Recess for 3/8", 1/2" & 5/8" Board
Thickness: 27ga | Stock Pack: 500 | Sub Pack: 20
Available Length: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P51

Shadowline Stopping Bead - 3/8 inch Recess for 3/8 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P51

Shadowline Stopping Bead - 3/8 inch Recess for 3/8 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P51

Shadowline Stopping Bead - 3/8 inch Recess for 3/8 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P52

Shadowline Stopping Bead - 3/8 inch Recess for 1/2 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P52

Shadowline Stopping Bead - 3/8 inch Recess for 1/2 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P52

Shadowline Stopping Bead - 3/8 inch Recess for 1/2 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P53

Shadowline Stopping Bead - 3/8 inch Recess for 5/8 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P53

Shadowline Stopping Bead - 3/8 inch Recess for 5/8 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
P51, 52, 53 Shadowline Combination Set Bead P53

Shadowline Stopping Bead - 3/8 inch Recess for 5/8 inch Board
Thickness: 27ga | Stock Pack: 200 | Sub Pack: 10
Available Lengths: 9ft 10in
Plaster_Corner_Bead_Mini_Internal-191.jpg PS17

90° Internal Corner Bead - Perforated Profile with 1 1/8 inch Leg
Thickness: 27ga | Stock Pack: 60 | Sub Pack: 60
Available Lengths: 7ft 10-1/2in, 8ft 10-1/2in, 9ft 10in
Special Order Length: 11ft 9-3/4in
R11 Board Stopping Bead R11

Render Stopping Bead to suit 1/2 inch Render
Thickness: 27ga | Stock Pack: 400 | Sub Pack: 20
Available Length: 9ft 10in
Special Order Lengths: 7ft 10-1/2in, 9ft 2-1/2in
Acoustic_Wall_Steel_Stud_System-315.jpg RQ75

3 5/8 inch (w) x 1 3/8 inch (h) Rondo QUIET STUD®
Thickness: 21ga | Stock Pack: 50 | Sub Pack: 50
Special Order Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in, 15ft 9in
Acoustic_Wall_Steel_Stud_System-315.jpg RQST

3 5/8 inch (w) x 1 3/8 inch (h) Acoustic Stud System
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 50
Available Lengths: 9ft 10in, 11ft 9-3/4in
Special Order Centres: 8ft 10-1/2in
Acoustic_Wall_Steel_Stud_System-315.jpg RQST

3 5/8 inch (w) x 1 3/8 inch (h) Rondo QUIET STUD®
Thickness: 25ga | Stock Pack: 50 | Sub Pack: 50
Available Lengths: 8ft 10-1/2in, 9ft 10in, 11ft 9-3/4in
S683 & S690 Deflection Head Track S683

3 5/8 inch (w) x 2 inch (h) MAXItrack® Slotted Deflection Head Track
Thickness: 18ga | Stock Pack: 50 | Sub Pack: 1
Available Length: 9ft 10in
S683 & S690 Deflection Head Track S690

6 inch (w) x 2 inch (h) MAXItrack® Slotted Deflection Head Track
Thickness: 18ga | Stock Pack: 30 | Sub Pack: 1
Special Order Length: 9ft 10in
SA12 SA12

1 5/8 inch (h) x 1 5/8 inch (w) Wall Angle
Thickness: 18ga | Stock Pack: 48 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in
SA12 SA12

1 5/8 inch (h) x 1 5/8 inch (w) Wall Angle
Thickness: 18ga | Stock Pack: 6 | Sub Pack: 1
Available Length: 11ft 9-3/4in
STDC Sound Isolation Mount STDC

Acoustic Isolation DFC - Stud Wall to Masonry/Concrete
Stock Pack: 100 | Sub Pack: 100
STPC Sound Isolation Clip STPC

Acoustic Isolation DFC - 129,308,309A Furring Channel(s) to Timber/Steel
Stock Pack: 100 | Sub Pack: 100
STSL STSL

Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A - 2 9/16 inchm M6 Adjustable Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
Special Order Lengths: 65, 85, 100, 120, 150, 180
STSU STSU

Acoustic Isolation Clip - 125/127/128 Top Cross Rail to 129,308,309A Furring Channel(s)
Stock Pack: 100 | Sub Pack: 100
STWC STWC

Acoustic Isolation DFC - suits Furring Channel(s) 129,308,309A - 2 9/16 inch M6 Adjustable Anchor Bolt
Stock Pack: 100 | Sub Pack: 100
Direct_Fix_Sliding_Adjustable_Top_Cross_Rail_Clip-62.jpg TCR-INFIN090

2 1/2 inch (h) Adjustable Height Sliding DFC – suits 125/127/128 Top Cross Rail
Stock Pack: 300 | Sub Pack: 300
WAB WAB

1 inch (h) x 3/4 inch (w) Black Steel Wall Angle
Thickness: 26ga | Stock Pack: 40 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WAC Steel Wall Angle ( Donn 15Mm Grid System) WAC

7/8 inch (h) x 9/16 inch (w) Steel Wall Angle suitable for 9/16 inch Grid
Thickness: 26ga | Stock Pack: 40 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WADX & WAH Heavy Duty Steel Wall Angle WADX

7/8 inch (h) x 3/4 inch (w) Steel Wall Angle
Thickness: 26ga | Stock Pack: 40 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WADX & WAH Heavy Duty Steel Wall Angle WAH

7/8 inch (h) x 3/4 inch (w) Heavy Duty Steel Wall Angle
Thickness: 25ga | Stock Pack: 40 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WAL Long Leg Steel Wall Angle WAL

1 5/8 inch (h) x 3/4 inch (w) Long Leg Steel Wall Angle
Thickness: 26ga | Stock Pack: 32 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WAS Shadow Line Log Leg Steel Wall Angle WAS

1 5/8 inch (h) x 1 inch (w) x 1 5/8 inch (h) x 7/8 inch (w) Seismic Wall Channel
Thickness: 26ga | Stock Pack: 12 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WAS Shadow Line Log Leg Steel Wall Angle WASA

9/16 inch (h) x 1/2 inch (w) x 1/2 inch (h) x 1/2 inch (w) Shadow Line Wall Angle
Thickness: 26ga | Stock Pack: 40 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WASL Shadow Line Long Leg Steel Wall Angle WASL

1 inch (h) x 1/2 inch (w) x 1/2 inch (h) x 3/4 inch (w) Shadowline Long Leg Wall Angle
Thickness: 25ga | Stock Pack: 24 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in
WASL Shadow Line Long Leg Steel Wall Angle WASL

1 inch (h) x 1/2 inch (w) x 1/2 inch (h) x 3/4 inch (w) Shadowline Long Leg Wall Angle
Thickness: 26ga | Stock Pack: 24 | Sub Pack: 1
Available Length: 11ft 9-3/4in
WHIB Hanger Isolator Blue WHIB

Acoustic Isolation Hanger - Blue - 20A Duro Rating
Stock Pack: 100 | Sub Pack: 100
WHIG Hanger Isolator Green WHIG

Acoustic Isolation Hanger - Green - 40A Duro Rating
Stock Pack: 100 | Sub Pack: 100
WHIP Hanger Isolator Pink WHIP

Acoustic Isolation Hanger - Pink - 30A Duro Rating
Stock Pack: 100 | Sub Pack: 100
Main Tee Flat Ceiling&Heavy Guagexd1&1H XD1

1 1/2 inch (h) x 1 1/2 inch (face) Main Tee
Thickness: 27ga | Stock Pack: 12 | Sub Pack: 1
Available Length: 11ft 9-3/4in
XD16 Bracket XD16

Main Tee Separation Joint Clip
Stock Pack: 100 | Sub Pack: 1
XD16 Bracket XD16

Main Tee Separation Joint Clip
Stock Pack: 100 | Sub Pack: 1
XD17 XD17

Seismic Clip
Stock Pack: 100 | Sub Pack: 1
XD17 XD17

Seismic Clip
Stock Pack: 100 | Sub Pack: 1
Main Tee Flat Ceiling&Heavy Guagexd1&1H XD1H

1 1/2 inch (h) x 1 1/2 inch (face) Heavy Gauge Main Tee
Thickness: 25ga | Stock Pack: 12 | Sub Pack: 12
Available Length: 11ft 9-3/4in
Cross Tee XD2 XD2

1 1/2 inch (h) x 1 1/2 inch (face) Cross Tee
Thickness: 27ga | Stock Pack: 36 | Sub Pack: 1
Available Lengths: 23 5/8 inch, 3ft 11-1/4in, 122 inch, 4ft 11in, 5ft 3in, 5ft 10-3/4in
Main Tee Flat Ceiling (Galvanised) XD3&3H XD3

1 1/2 inch (h) x 7/8 inch (face) Main Tee
Thickness: 27ga | Stock Pack: 12 | Sub Pack: 12
Available Length: 11ft 9-3/4in
Main Tee Flat Ceiling (Galvanised) XD3&3H XD3H

1 1/2 inch (h) x 7/8 inch (face) Heavy Gauge Main Tee
Thickness: 25ga | Stock Pack: 12 | Sub Pack: 12
Available Lengths: 11ft 9-3/4in
Perimeter Channel XD5 XD5

1 5/8 inch (h) x 1 5/8 inch (w) Wall Angle
Thickness: 25ga | Stock Pack: 12 | Sub Pack: 1
Available Lengths: 11ft 9-3/4in
Perimeter Channel XD6 XD6

1 5/8 inch (h) x 1 1/2 inch (w) x 3/4 inch (w) Perimeter Channel
Thickness: 25ga | Stock Pack: 6 | Sub Pack: 1
Available Length: 11ft 9-3/4in
Heavy Guage Main Tee Wall To Wall Heavy XDWH XDWH

​​1 1/2 inch (h) x 1 1/2 inch (face) Heavy Gauge Wall to Wall Main Tee
Thickness: 27ga | Stock Pack: 12 | Sub Pack: 1
Available Length: 7ft 2-1/2in
Main Tee Wall To Wall Standard XDWS XDWS

​​1 1/2 inch (h) x 1 1/2 inch (face) Wall to Wall Main Tee
Thickness: 28ga | Stock Pack: 12 Sub Pack: 1
Available Length: 5ft 3in
error: Content is protected !!
