STEEL STUD & TRACK WALL FRAMING SYSTEM

The Judah^® Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Judah® Stud and Track wall systems are available to suit almost all situations.

PRODUCT FEATURES

FIRE-RATED AND ACOUSTIC DESIGN Available for Fire-rated and Acoustic applicationsCURVED WALL SYSTEMS Flexible Track available for curved wallsSEISMIC DESIGN Available for Seismic applications Introduction to our STEEL STUD & TRACK WALL FRAMING SYSTEM The Judah Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Judah Stud and Track wall systems are available to suit almost all situations. Designed to not only be stronger but safer, our range of Hemmed Track sections and 2″ (401) and 3″ (403) Wall Stud helps reduce handling injuries on site. The hemmed return lip increases rigidity, preventing unwanted rotation as well as eliminating sharp edges. The vertical rib in the stud face allows the wall linings to be placed centrally, ensuring easier and faster fixing, while the deeper knurling provides better screw location and retention. What’s more, our studs lock perfectly into each other, creating the best boxed stud profile in the market. Judah Steel Stud Drywall Framing Systems comply with all relevant Building Codes for fire-rated, acoustic, seismic and load bearing requirements. Judah 25, 22 and 20 GA Wall Studs have bell mouthed service holes. Being bell mouthed with no protruding sharp edges eliminates the need for fitting grommets for electrical cabling. Punched round holes are processed at designated centres along our 18 GA Wall Studs. NOGGINGS FOR YOUR INTERNAL STEEL STUD WALL When it comes to selecting a Nogging for your internal wall framing, we have the greatest range available and each of them have been designed to suit a specific application. We have Noggings that can be installed during the steel stud framing, such as our continuous Nogging Track that can be fitted to the stud framing in one length and Double-Punched Nogging Track that suits a wider Stud arrangement such as boxed Studs, or our DUPLEX Stud^® and MAXIjamb^® Studs. We also have two new innovative Noggings that are providing a whole new way of framing as they can be installed after the stud framing is complete. The SNAP-LOCK Nogging^® is a spacer bar that is designed to snap perfectly into Judah light gauge Steel Studs after framing is complete, making installations quicker and resulting in labour cost savings. Our FAST-FIX Nogging^® suits any typical Stud application, whether its boxed, back to back or staggered stud. FAST-FIX Nogging^® can also be used with DUPLEX^® and QUIET STUD^® Stud profiles. Curved Wall Systems The availability of various sizes, complementary components such as curved tracks and special cleats ensure Judah Stud and Track Wall Systems are available to suit almost all situations, such as internal drywall partitions up to 33 Feet in height, depending on the application. WHAT YOU’LL LIKE ABOUT OUR STEEL STUD AND TRACK WALL FRAMING SYSTEM

• Available in custom lengths
• Majority of Stud and Track is hemmed for safety and increased strength, preventing unwanted rotation
• MAXIframe^® External Wall Framing System made from 1.2BMT G500
• Flexible Track available for curved walls
• Manufactured from BlueScope Steel with a minimum coating of Z275
• Profiles widths range from 2″ to 6″, and gauges from 0.50 to 1.15BMT
• Bell mouthed service holes on 25, 22 and 20 GA Wall Studs mitigate damages to services

WHAT IS THE JUDAH STEEL STUD AND TRACK WALL FRAMING SYSTEM SUITABLE FOR

• Non-load and load bearing (by design) partition walls
• Steel Stud Ceiling Systems
• Window and Door Jambs
• Non-Fire Rated and Fire-rated Systems
• Acoustic Wall Systems (by design)
• External Wall systems (by design)
• Light Weight Floor Joists
• Bulkheads
• Seismic Wall System by design

STEEL STUD & TRACK SEISMIC SOLUTION Every component has been tried and tested at Judah and at an independent laboratory by our Seismic research team. The Judah Steel Stud Seismic Wall System is designed to allow movement along the wall and provide flexibility at wall junctions due to deflection occurring from a seismic event. To allow movement along the stud wall, Judah has developed the Seismic Slotted Deflection Head Track. The head track fixing slots allow movement of the wall, therefore providing articulation of the wall panel, and preventing cracking at the wall junctions. ADVANTAGES OF JUDAH SEISMIC WALL & CEILING SYSTEMS

• Complete wall and ceiling seismic system solution
• Strong enough to resist lateral forces during an earthquake
• Will limit the structural damage of the systems
• Accommodates differential movements resulting from inter-storey movements
• Prevent tiles and lining boards from dislodging and blocking evacuation paths
• Will support critical services after an earthquake
• Protects the safety of all building occupants

PROJECTS THAT HAVE BENEFITTED FROM THE USE OF OUR JUDA STEEL WALL FRAMING SYSTEM JUDA STEEL Wall Framing Systems have been used all over the world, including in the enormous Mumbai International Airport development in India and Australia’s largest tertiary institution and award-winning project, RMIT University in Melbourne. For the high-profile Fiona Stanley Hospital project in Perth, its design required special length products – therefore, JUDA STEEL produced large quantities of the non-standard Stud and Track sizes to ensure the project can progress rapidly. PRODUCT TYPE 0.50BMT FLEXIBLE TRACK ACOUSTIC STUD SYSTEM ANGLE & ‘C’ CHANNEL: SUITABLE FOR SPEEDPANEL DEFLECTION HEAD TRACKS 0.50 BMT DEFLECTION HEAD TRACKS 0.70 BMT DEFLECTION HEAD TRACKS 0.75 BMT DEFLECTION HEAD TRACKS 1.15 BMT DOUBLE PUNCHED NOGGING TRACK FAST-FIX NOGGING 0.70 BMT NOGGING BRACKET & TRACK SLOTTED DEFLECTION HEAD TRACK 0.70 BMT SLOTTED DEFLECTION HEAD TRACK 1.15 BMT SNAP-LOCK NOGGING SPACER BAR 0.50 BMT STUD CLIPS/BRACKETS WALL STUDS 0.50 BMT WALL STUDS 0.55 BMT WALL STUDS 0.75 BMT WALL STUDS 1.15 BMT WALL TRACKS 0.5 BMT WALL TRACKS 0.70 BMT WALL TRACKS 1.15 BMT DOWNLOAD ALL CAD FILES

IMAGE	PART NUMBER	CAD FILE	DESCRIPTION
	103		2″ (w) x 1 1/2″ (h) Flexible Track  BMT: 25 GA | Stock Pack: 4 | Sub Pack: 4 Available Length: 3000mm
	107		2 1/2″ (w) x 2″ (h) Deflection Head Flexible Track  BMT: 25 GA | Stock Pack: 4 | Sub Pack: 4 Available Length: 10′
	108		3″ (w) x 2″ (h) Deflection Head Flexible Track  BMT: 25 GA | Stock Pack: 4 | Sub Pack: 4 Available Length: 10′
	109		3 5/8″ (w) x 2″ (h) Deflection Head Flexible Track  BMT: 25 GA | Stock Pack: 4 | Sub Pack: 4 Available Length: 10′
	110		6″ (w) x 2″ (h) Deflection Head Flexible Track  BMT: 25 GA | Stock Pack: 4 | Sub Pack: 4 Special Order Length: 10′
	111		2 1/2″ (w) x 1″ (h) Wall Track with Hem BMT: 25 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 10′ Special Order Length: 12′
	112		2 1/2″ (w) x 1 1/2″ (h) Steel Stud with Hem  BMT: 25 GA | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 8′, 8 1/2′, 10′, 12′, 14′, 15 3/4′ Special Order Length: 11′
	126		Staggered Stud Clip Stock Pack: 500 | Sub Pack: 100 *Special Order
	214		2 1/2″ (w) Double Punched Nogging Track BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′ Special Order Centres: 10″, 12″, 18″, 24″
	215		3″ (w) Double Punched Nogging Track BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′ Special Order Centres: 10″, 12″, 18″, 24″
	216		3 5/8″ (w) Double Punched Nogging Track BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′ Special Order Centres: 10″, 12″, 18″, 24″
	217		6″ (w) Double Punched Nogging Track BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′ Special Order Centres: 10″, 12″, 18″, 24″
	222		Fast-Fix Nogging® BMT: 20 GA | Stock Pack: 10 | Sub Pack: 1 Available Length: 6′
	250		3 5/8″ (w) x 1″ (h) Wall Track with Hem BMT: 25 GA | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 10′ Special Order Length: 3600mm
	251		3 5/8″ (w) x 1 1/2″ (h) Steel Stud with Hem BMT: 22 GA | Stock Pack: 80 | Sub Pack: 10 Available Lengths: 6′, 8′, 10′, 12′, 14′, 16′, 20′ Special Order Length: 11′
	400		2″ (w) x 1″ (h) Wall Track with Hem BMT: 25 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 10′
	401		2″ (w) x 1 1/2″ (h) Steel Stud with Hem BMT: 22 GA | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 8.5′, 10′, 12′ Special Order Lengths: 8′, 11′
	402		3″ (w) x 1″ (h) Wall Track with Hem BMT: 22 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 10′ Special Order Length: 12′
	403		3″ (w) x 1 1/2″ (h) Steel Stud with Hem BMT: 0.55 | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 8′, 9′, 10′, 12′, 14′, 16′ Special Order Length: 11′
	480		2 1/2″ (w) x 2″ (h) Deflection Head Track   BMT: 22 GA | Stock Pack: 50 | Sub Pack: 10 Special Order Length: 10′
	482		3″ (w) x 2″ (h) Deflection Head Track   BMT: 25 GA | Stock Pack: 50 | Sub Pack: 10 Special Order Length: 10′
	483		3 5/8″ (w) x 2″ (h) Deflection Head Track   BMT: 25 GA | Stock Pack: 50 | Sub Pack: 10 Special Order Length: 10′
	488		2″ (w) x 2″ (h) Deflection Head Track   BMT: 0.70 | Stock Pack: 50 | Sub Pack: 10 Available Length: 10′
	489		2″ (w) x 1 1/2″ (h) Steel Stud BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Special Order Length: 10′
	490		2″ (w) x 1″ (h) Wall Track with Hem BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Special Order Length: 10′
	491		1 1/2″ (w) x 1 1/2″ (h) Steel Stud BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 8′, 9′, 10′, 12′, 14′
	492		2 1/2″ (w) x 1″ (h) Wall Track with Hem BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 10′
	493		3″ (w) x 1 1/2″ (h) Steel Stud BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 8′, 9′, 10′, 12′, 14′ Special Order Length: 20′
	494		3″ (w) x 1″ (h) Wall Track with Hem BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 10′
	495		3 5/8″ (w) x 1 1/2″ (h) Steel Stud BMT: 20 GA | Stock Pack: 80 | Sub Pack: 10 Available Lengths: 8′, 9′, 10′, 12′, 13′, 14′, 20′
	496		3 5/8″ (w) x 1″ (h) Wall Track with Hem BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 10′
	497		2 1/2″ (w) x 1″ (h) Deflection Head Track   BMT: 25 GA | Stock Pack: 50 | Sub Pack: 10 Available Length: 10′
	498		3″ (w) x 2″ (h) Deflection Head Track   BMT: 20 GA | Stock Pack: 50 | Sub Pack: 10 Available Length: 10′
	499		3 5/8″ (w) x 2″ (h) Deflection Head Track   BMT: 20 GA | Stock Pack: 50 | Sub Pack: 10 Available Length: 10′
	501		Continuous Nogging Bracket BMT: 20 GA | Stock Pack: 100 | Sub Pack: 1 Available Length: 8′
	503		2″ (w) Nogging Track  BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′  Special Order Centres: 18″, 24″
	504		2 1/2″ (w) Nogging Track  BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′ Special Order Centres: 18″, 24″
	505		3″ (w) Nogging Track BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Length: 12′ Centres: 18″, 24″
	506		3 5/8″ (w) Nogging Track BMT: 20 GA | Stock Pack: 100 | Sub Pack: 10 Available Lengths: 12′ Centres: 18″, 24″
	507		6″ (w) Nogging Track BMT: 20 GA | Stock Pack: 60 | Sub Pack: 10 Available Lengths: 12′ | 18″ Centres, 24″ Centres
	510		6″ (w) x 2″ (h) Deflection Head Track   BMT: 20 GA | Stock Pack: 30 | Sub Pack: 10 Available Length: 10′
	511		6″ (w) x 1 1/2″ (h) Wall Stud  BMT: 0.75 | Stock Pack: 30 | Sub Pack: 1 Available Lengths: 12′, 14′, 20′ Special Order Length: 26′

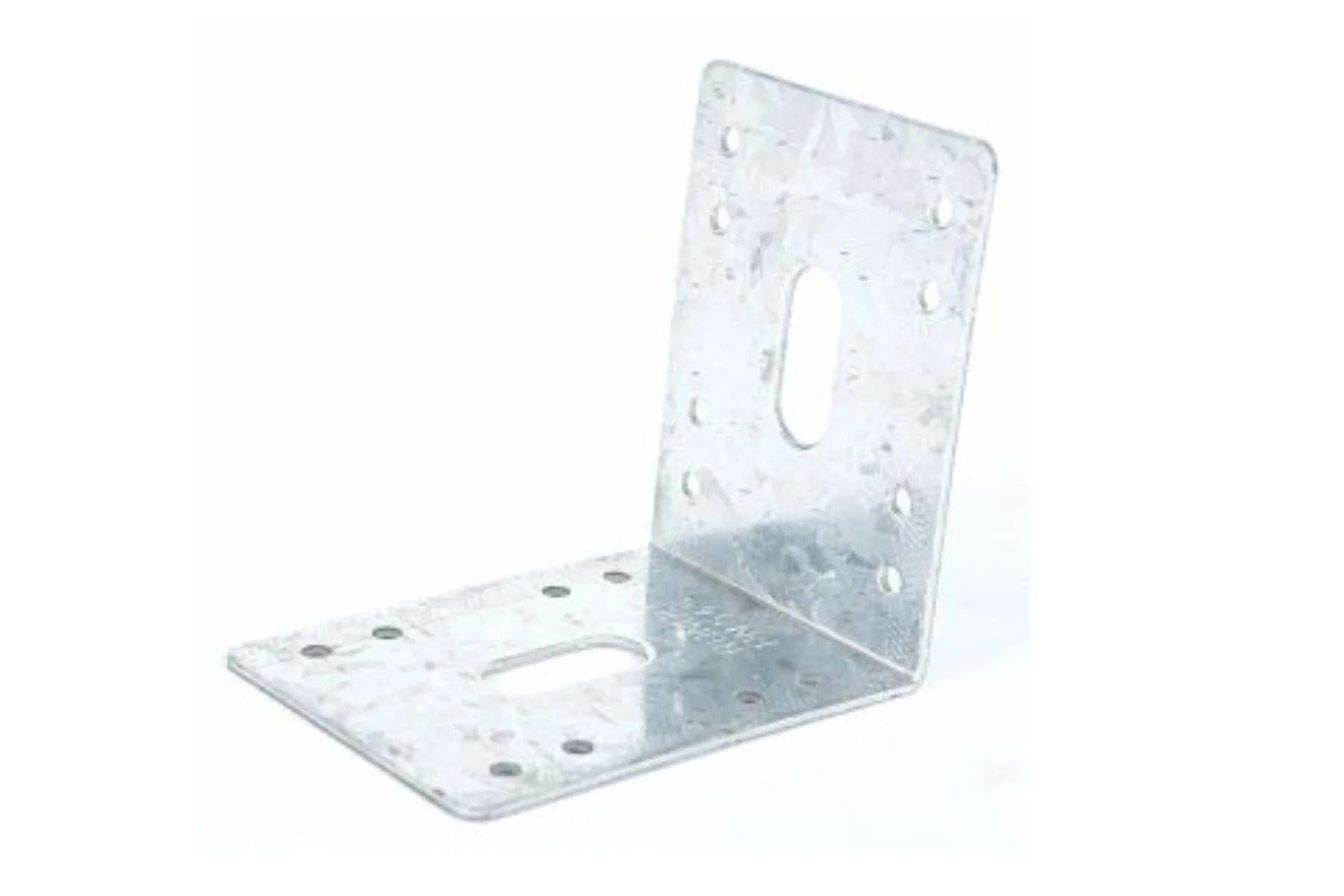

	545		3″ (h) x 3″ (w) x 2″ (l) ‘L’ Bracket  BMT: 18 GA | Stock Pack: 200 | Sub Pack: 200 *Special Order
	559		2″ (w) x 2″ (h) Angle suitable for Speedpanel BMT: 18 GA | Stock Pack: 100 | Sub Pack: 1 Special Order Length: 12′
	660		2 1/2″ (w) x 1 1/2″ (h) Wall Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	661		2 1/2″ (w) x 1 1/2″ (h) Wall Stud BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Lengths: 8′, 10′, 12′
	663		2 1/2″ (w) x 2″ (h) Deflection Head Track  BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	670		3″ (w) x 1 1/2″ (h) Wall Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	671		3″ (w) x 1 1/2″ (h) Steel Stud BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Lengths: 8′, 10′, 12′, 14′, 20′ Special Order Length: 2400mm
	673		3″ (w) x 2″ (h) Deflection Head Track  BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	680		3 5/8″ (w) x 1 1/2″ (h) Wall Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	681		3 5/8″ (w) x 1 1/2″ (h) Steel Stud BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Lengths: 8′, 10′, 12′, 14′, 16′, 20′, 7200mm
	683		3 5/8″ (w) x 2″ (h) Deflection Head Track  BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	690		6″ (w) x 2″ (h) Deflection Head Track  BMT: 18 GA | Stock Pack: 30 | Sub Pack: 1 Available Length: 10′
	691		6″ (w) x 1 1/2″ (h) Steel Stud BMT: 18 GA | Stock Pack: 30 | Sub Pack: 1 Available Lengths: 12′, 14′, 20′, 23′
	810		2 1/2″ (w) x 2″ ‘C’ Channel suitable for Speedpanel  BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Special Order Length: 12′
	820		3 1/4″ (w) x 2″ ‘C’ Channel suitable for Speedpanel BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Special Order Length: 12′
	888		SNAP-LOCK Nogging® BMT: 18 GA | Stock Pack: 100 | Sub Pack: 1 Available Length: 12′ | Centres: 10″, 18″, 20″, 26″
	RQ75		3 5/8″ (w) x 1 3/4″ (h) JUDAH QUIET STUD® BMT: 18 GA | Stock Pack: 50 | Sub Pack: 50 Special Order Lengths: 9′, 10′, 12′, 14′
	RQST		3 5/8″ (w) x 1 3/4″ (h) Acoustic Stud System  BMT: 22 GA | Stock Pack: 50 | Sub Pack: 50 Available Lengths: 10′, 12′ Special Order: 9′
	S497		2 1/2″ (w) x 2″ (h) Slotted Deflection Track BMT: 20 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	S498		3″ (w) x 2″ (h) Slotted Deflection Track BMT: 20 GA | Stock Pack: 50 | Sub Pack: 1 Special Order Length: 10′
	S499		3 5/8″ (w) x 2″ (h) Slotted Deflection Track BMT: 20 GA | Stock Pack: 50 | Sub Pack: 1 Available Length: 10′
	S663		2 1/2″ (w) x 2″ (h) Slotted Deflection Head Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Special Order Length: 10′
	S673		3″ (w) x 2″ (h) Slotted Deflection Head Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Special Order Length: 10′
	S683		3 5/8″ (w) x 2″ (h) MAXItrack® Slotted Deflection Head Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Available Lengths: 10′
	S690		6″ (w) x 2″ (h) MAXItrack® Slotted Deflection Head Track BMT: 18 GA | Stock Pack: 50 | Sub Pack: 1 Special Order Length: 10′
