ALUMINIUM GRID CEILING SYSTEM
The Judah Aluminium Grid Ceiling System is an alternative to the JUDAH® Exposed Grid Ceiling System.
Unlike the JUDAH® Exposed Grid Ceiling System, the Aluminium main tee to cross tee intersection is a butt joint, which provides a flat, ghost free surface to fit the ceiling panel.
The cross tees have integrated locking tags enabling them to snap together positively at intersections whilst the main tee has a separate splicing plate to join lengths of the main tee together.
PRODUCT FEATURES
PRE-FINISHED
Available in pre-finished powder-coated whiteCOMPATIBILITY
Compatible with other Judah Steel componentsGHOST-FREE SURFACE
Intersection butt joint for ghost-free surface
INTRODUCTION TO OUR ALUMINIUM GRID CEILING SYSTEM
The JUDAH Aluminium Grid Ceiling System is an alternative to the JUDAH® Exposed Grid Ceiling System.
Unlike the JUDAH® Exposed Grid Ceiling System, the Aluminium main tee to cross tee intersection is a butt joint, which provides a flat, ghost free surface to fit the ceiling panel.
The cross tees have integrated locking tags enabling them to snap together positively at intersections whilst the main tee has a separate splicing plate to join lengths of the main tee together.
WHAT YOU’LL LIKE ABOUT OUR ALUMINIUM GRID CEILING SYSTEM
- Available in pre-finished powder-coated white
- Intersection butt joint for ghost-free surface
- Compatible with other Judah® components including hanger brackets, aluminium angle and shadowline perimeter trims
- Accepts both mineral fibre and plasterboard ceiling panels
| IMAGE | PART NUMBER | CAD FILE | DESCRIPTION |
|---|---|---|---|
 |
121 |  |
Ø5.0mm Soft Galvanized Suspension Rod |
 |
122 | |
Ø5.3mm Soft Galvanized Suspension Rod – M6 Thread at one end |
 |
188 | |
3/4″ (h) x 3/4″ (w) x 5/8″ (l) Wall Angle Bracket |
 |
247 | |
2 1/2″ (h) x 1″ (w) x 1″ (l) Bracket – 121 Rod to Masonry/ Concrete |
 |
274 | |
3″ (h) x 1″ (w) Bracket – 121 Rod to Timber/Steel |
 |
321 | |
Aluminium Direct Fix Bulkhead Trim for 1/2″ Plasterboard – Tile White |
|
|
356 | |
Spring Adjustable Suspension Clip to suit 359 Aluminium Main Tee |
|
|
357 | |
1 1/2″ (h) x 1″ (face) Aluminium Lightweight Cross Tee |
|
|
358 | |
359 Aluminium Main Tee Joiner |
|
|
359 | |
1 1/2″ (h) x 1″ (face) Aluminium Lightweight Main Tee |
 |
371 | |
1″ (h) x 5/8″ (w) Concealed T-Spline – suits DUO1 Main Tee |
 |
534 | |
4″ (h) x 1 1/2″ (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel |
 |
547 | |
3″ (h) x 1 1/2″ (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete |
 |
772 |
For Steel and Aluminium Grid (150g can) |
|
 |
826 |
M6 Nut – Suits 122 Threaded Rod |
|
 |
DUO7 | |
5/8″ (h) x 3/8″ (w) x 3/8″ (h) x 5/8″ (w) Aluminium Shadowline Wall Angle – Tile White |
 |
DUO8 | |
1 1/2″ (h) x 5/8″ (w) Aluminium Wall Angle – Tile White |
 |
DUO9 | |

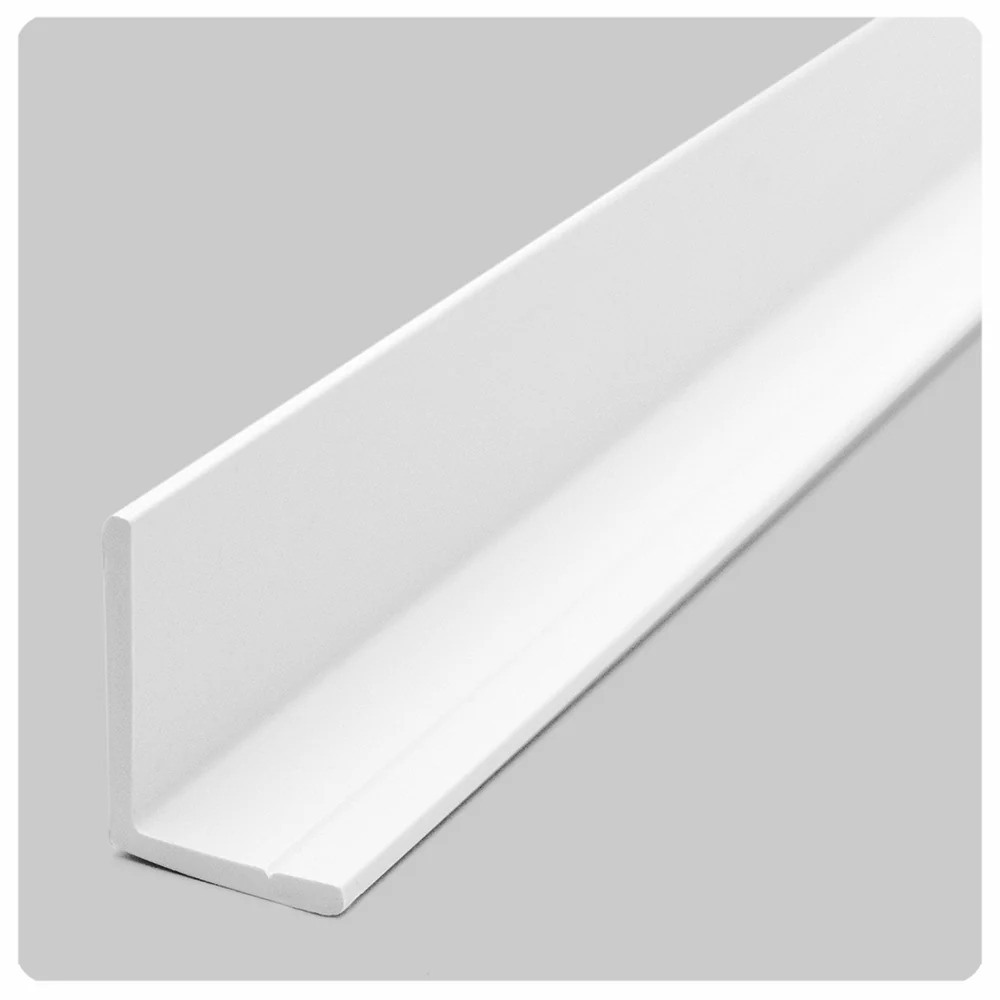

5/8″ (h) x 3/8″ (w) x 3/8″ (h) x 5/8″ (w) Seismic Aluminium Shadowline Wall Angle – Tile White |
 |
MACS6 | |
2 1/2″ M6 Adjustable Anchor Bolt |
