TOP HATS AND STEEL ANGLES
Judah® Top Hats can be used internally or externally and on vertical fascias and soffits. They are often used where there is a higher wind loading or where heavy duty sheeting is to be installed.

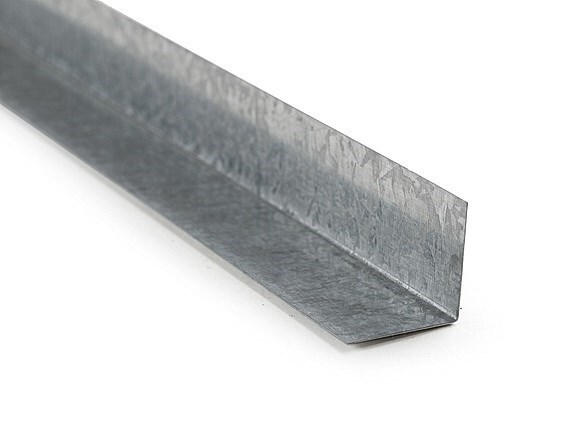

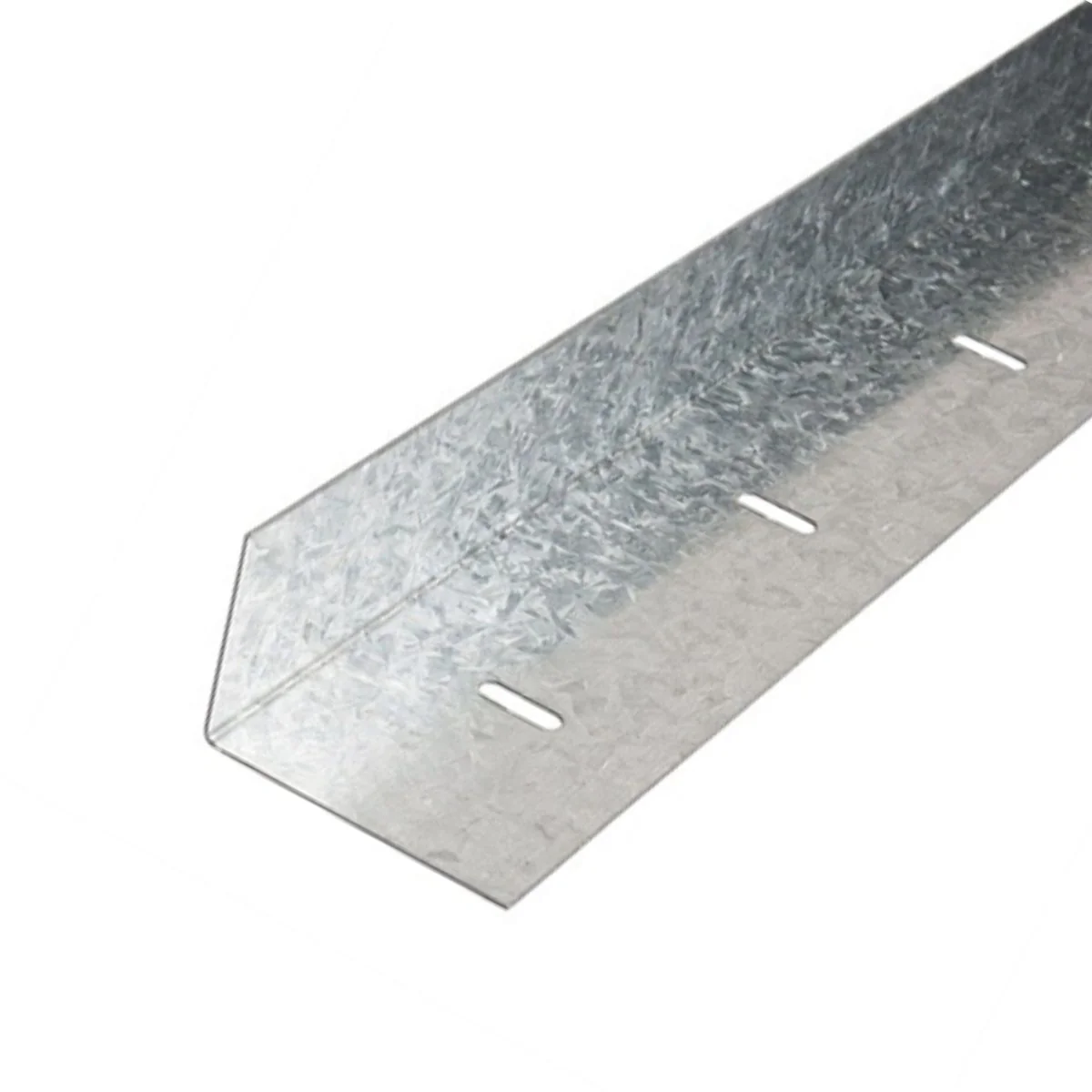

Steel Angles can be used to strengthen internal corners of façade systems and steel framing requirements for facade systems.
PRODUCT FEATURES
G200 Z275 GALVANIZED STEEL
Manufactured from G200 Z275 Galvanized SteelVERSATILE
Suits most external and internal applications20 GA AND 18 GA
Heavy Duty Angles are available in 20 and 18 GA steel thicknesses
ADVANTAGES
- Wide variety of Top Hat profiles to suit most external and internal applications and can be installed either vertically or horizontally
- Top Hats and Heavy Duty Angles are manufactured from G200 Z275 Galvanized Steel
- Heavy Duty Angles are available in 20 and 18 GA steel thicknesses
| IMAGE | PART NUMBER | CAD FILE | DESCRIPTION |
|---|---|---|---|
|
|
M515 |  |
2 inch (face) x 9/16 inch (h) x 11/16 inch (flange) Top Hat |
|
|
M525 | |
2 inch (face) x 1 inch (h) x 3/4 inch (flange) Top Hat |
|
|
M535 | |
2 inch (face) x 1 3/8 inch (h) x 3/4 inch (flange) Top Hat |
|
|
M545 | |
2 inch (face) x 1 3/8 inch (h) x 11/16 inch (flange) Top Hat |
|
|
M550 | |
2 inch (face) x 2 inch (h) x 3/4 inch (flange) Top Hat |
|
|
M560 | |
2 inch (face) x 2 3/8 inch (h) x 11/16 inch (flange) Top Hat |
|
|
M715 | |
3 inch (face) x 9/16 inch (h) x 13/16 inch (flange) Top Hat |
|
|
M725 | |
3 inch (face) x 1 inch (h) x 3/4 inch (flange) Top Hat |
|
|
M735 | |
3 inch (face) x 1 3/8 inch (h) x 3/4 inch (flange) Top Hat |
|
|
M750 | |
3 inch (face) x 2 inch (h) x 13/16 inch (flange) Top Hat |
