JUDAH® DRYWALL GRID CEILING SYSTEM
The Judah® Drywall Grid Ceiling System is light-weight and simple to install.
The Main Tee and Cross Tee connection uses the same patented QRC clip technology that is known and preferred by installers.
With an ability to be used in acoustic, seismic and fire-rated applications, the Judah® Drywall Grid Ceiling System offers design flexibility for flush plasterboard ceilings, bulkheads and boxed soffits.
PRODUCT FEATURES
SEISMIC DESIGN
Available for Seismic applicationsFIRE-RATED AND ACOUSTIC DESIGN
Available for Non Fire-rated, Fire-rated and Acoustic applicationsSIMPLE INTEGRATION
For Light fixtures, Air conditioning services and Access panels
WHAT YOU’LL LIKE ABOUT OUR JUDAH® CEILING SYSTEM
- Surface Finish: Z275 galvanized
- Low profile with 1 1/2″ wide face
- Integration with JUDAH® Exposed Grid Ceiling System
- Simple Integration of conventional light fixtures, air conditioning services and access panels
- Main Tee and Cross Tee clips have a secure connection and are easy to remove and relocate
WHAT IS THE JUDAH® CEILING SYSTEM IS SUITABLE FOR
- Concealed ceiling systems
- Plasterboard, fibrous plaster and fibre cement linings
- Direct fix or fully suspended applications
- Seamless transition from a concealed to exposed grid ceiling
- Bulkheads and boxed soffits
- Corridors, without the use of suspension hangers
- Fire-rated applications
- Seismic requirements
- Acoustic ceiling solutions
| IMAGE | PART NUMBER | CAD FILE | DESCRIPTION |
|---|---|---|---|
 |
121 |  |

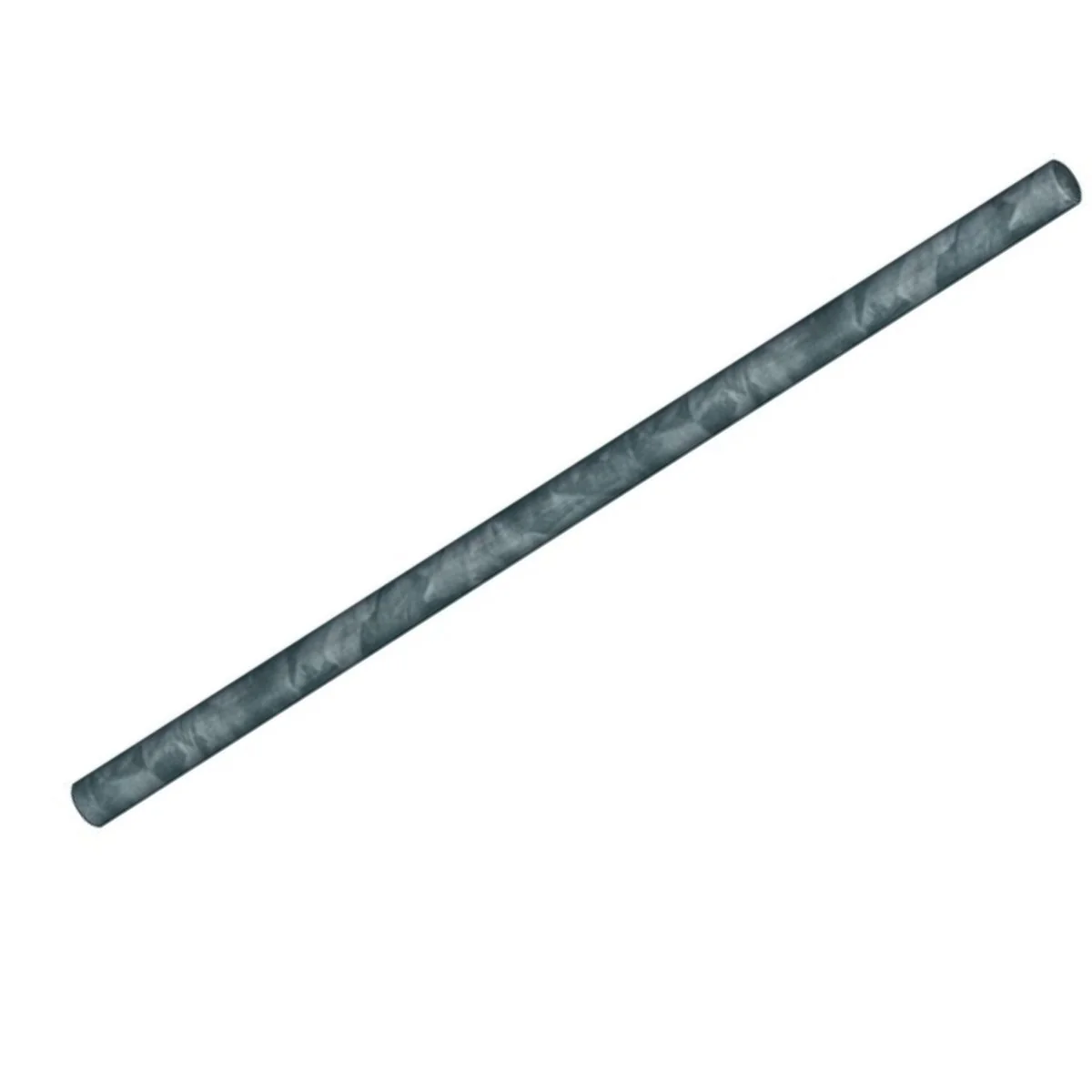

Ø5.0mm Soft Galvanised Suspension Rod |
 |
122 | |

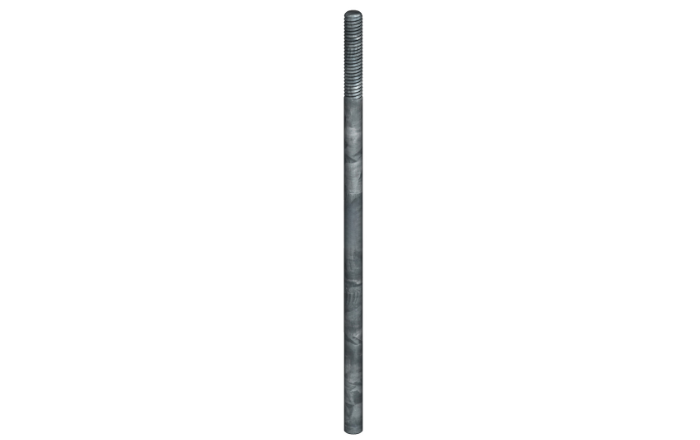

Ø5.3mm Soft Galvanised Suspension Rod – M6 Thread at one end |
 |
247 | |

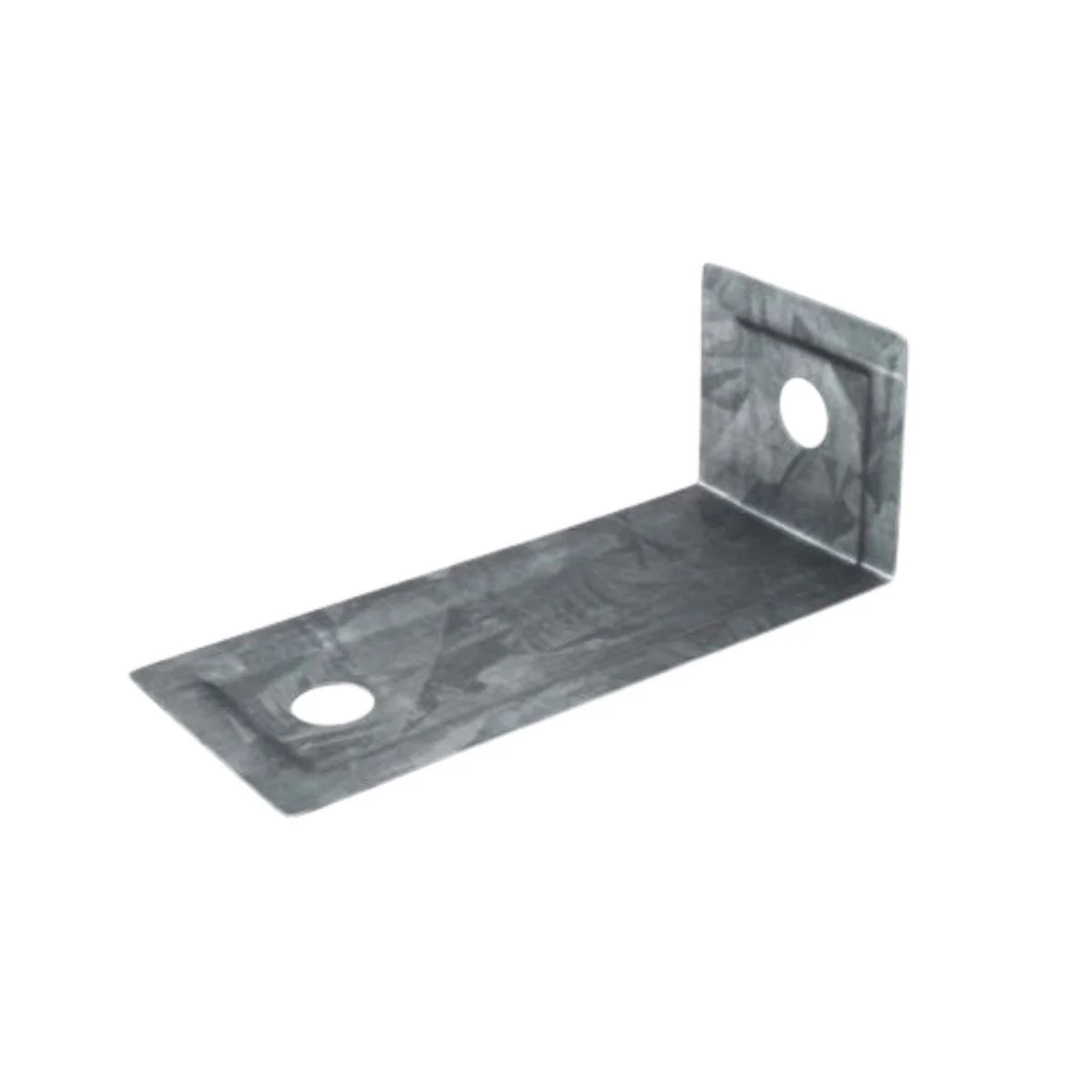

2 1/2″ (h) x 1″ (w) x 1″ (l) Bracket – 121 Rod to Masonry/ Concrete |
 |
274 | |

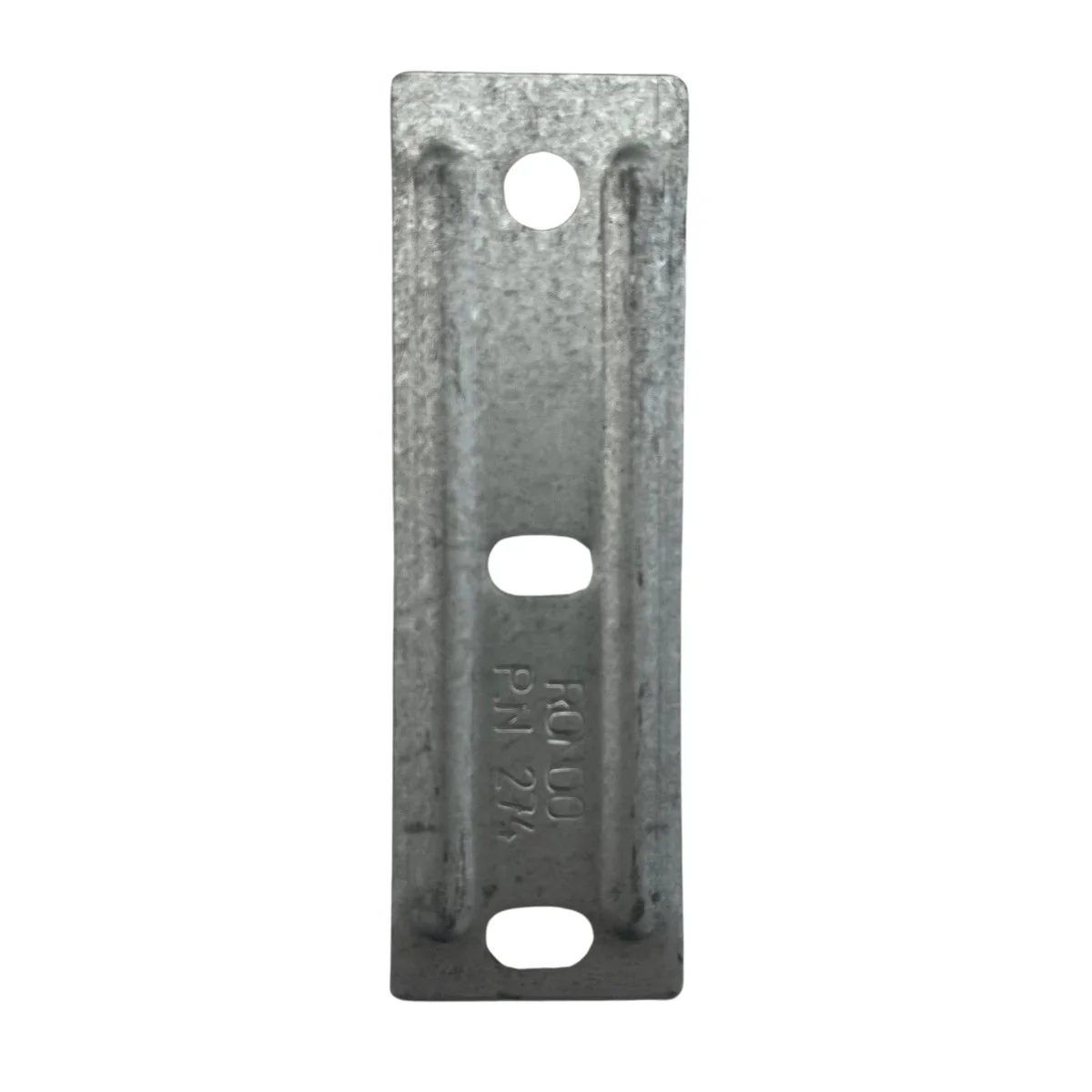

3 1/4″ (h) x 1″ (w) Bracket – 121 Rod to Timber/Steel |
 |
534 | |

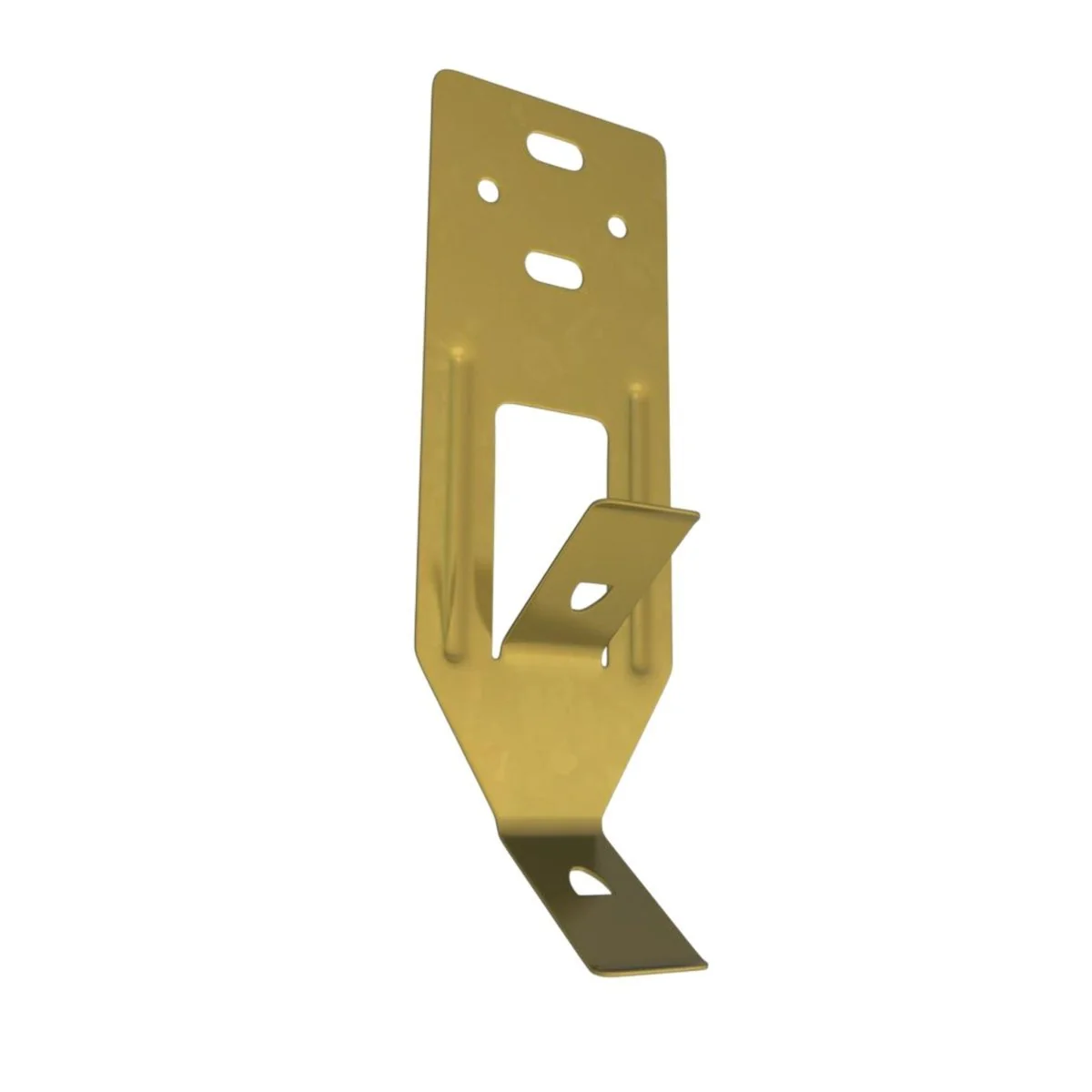

4″ (h) x 1 1/2″ (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel |
 |
547 | |

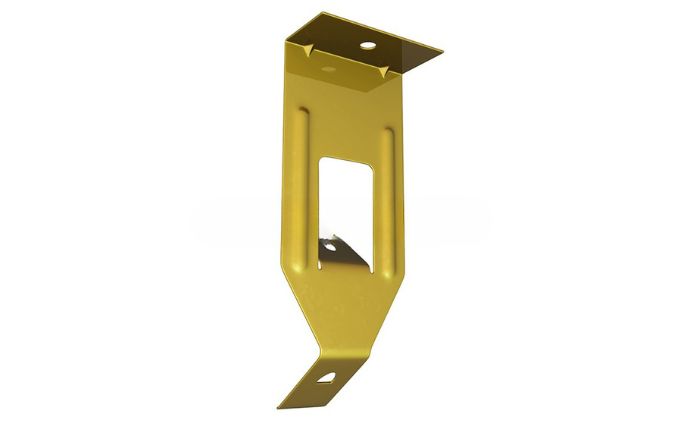

3″ (h) x 1 1/2″ (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete |
 |
553 |

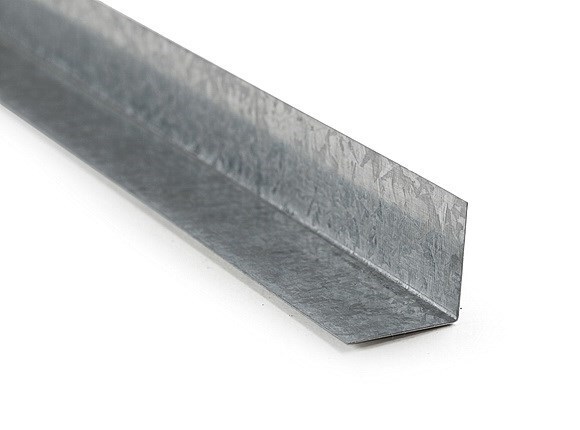

1 1/2″ (h) x 1 1/2″ (w) Wall Angle |
|
 |
826 |

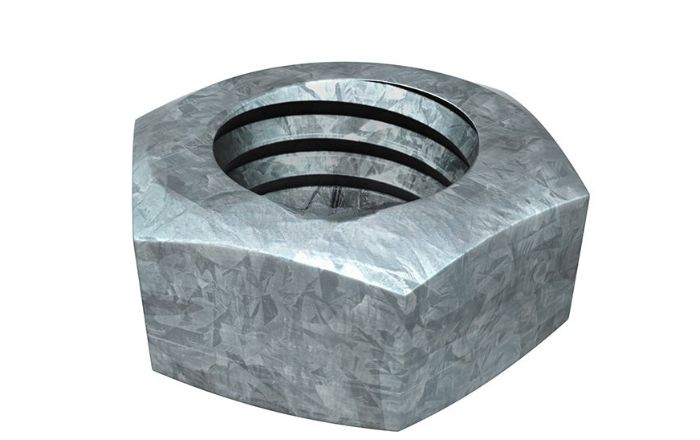

M6 Nut – Suits 122 Threaded Rod |
|
 |
DXCL | |

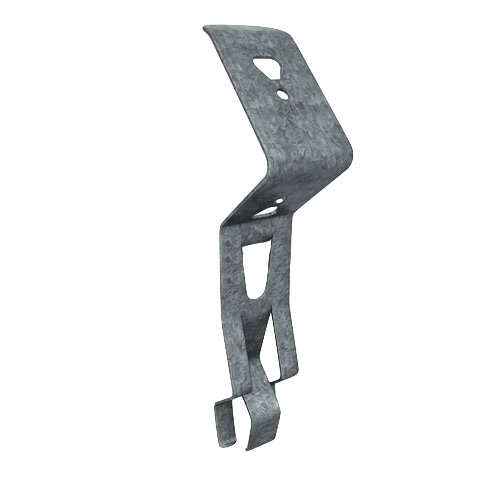

Adjustable Suspension Clip – 121 Rod to Main Tee |
 |
DXDF |

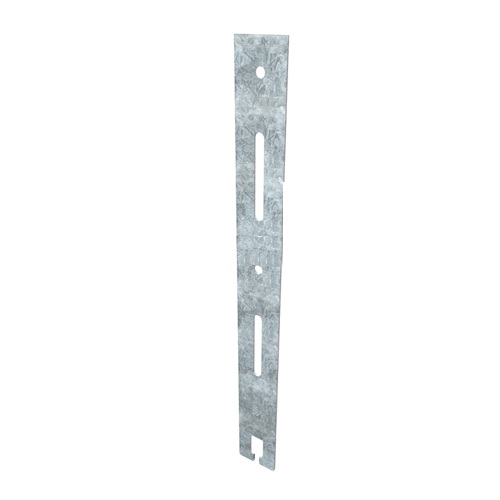

Direct Fix Strap |
|
 |

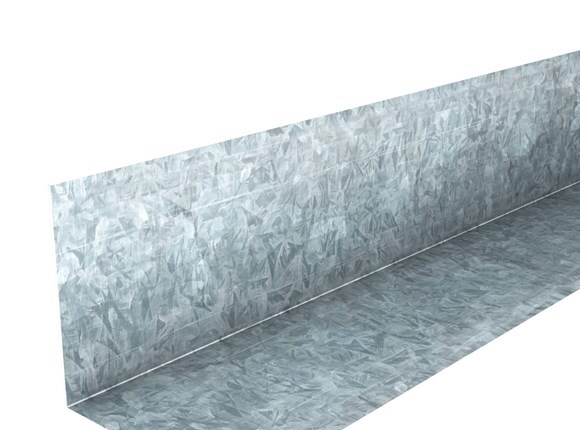

SA12 | |
1 3/4″ (h) x 1 3/4″ (w) Wall Angle |
 |

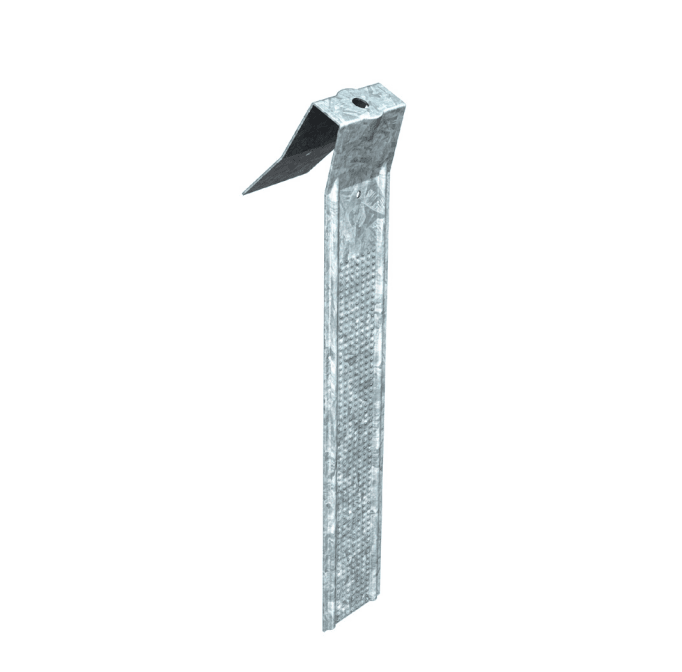

THE-Clip® (275) |
Direct Fixing Clip – ‘THE-Clip®’ to Concrete – 220mm (h) |
|
 |

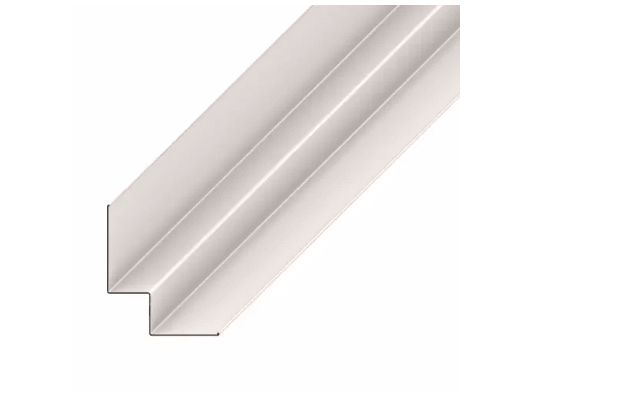

WASL | |
1″ (h) x 3/8″ (w) x 3/8″ (h) x 1″ (w) Shadowline Long Leg Wall Angle |
 |
XD1 | |
1 1/2″ (h) x 1 1/2″ (face) Main Tee |
 |

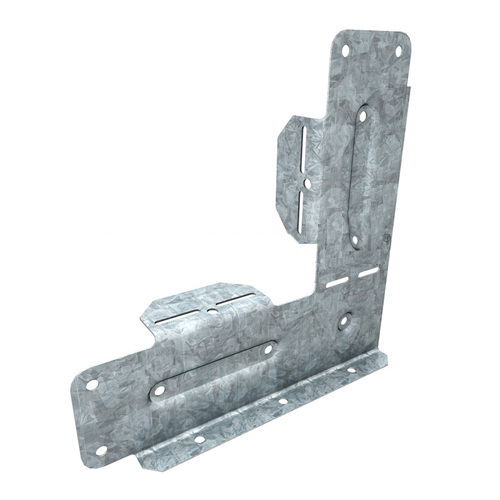

XD10 |
Transition Clip – 90° |
|
 |
XD11 |

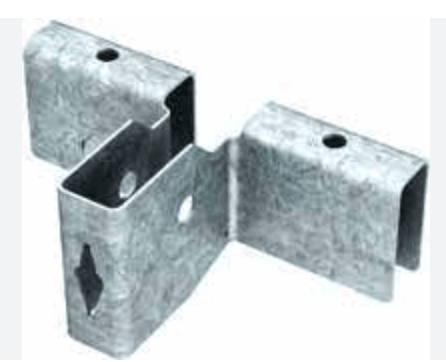

Acoustical Transition Clip – Rondo XPRESS® to Rondo DONN® |
|
 |
XD12 |

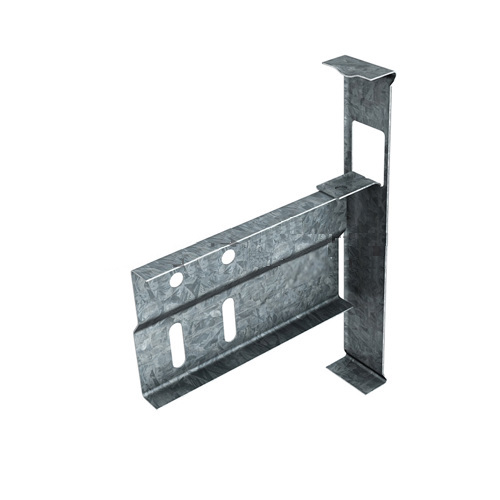

4″ Fascia Drywall Clip |
|
 |
XD13 |
6″ Fascia Drywall Clip |
|
 |
XD14 |
8″ Fascia Drywall Clip |
|
 |

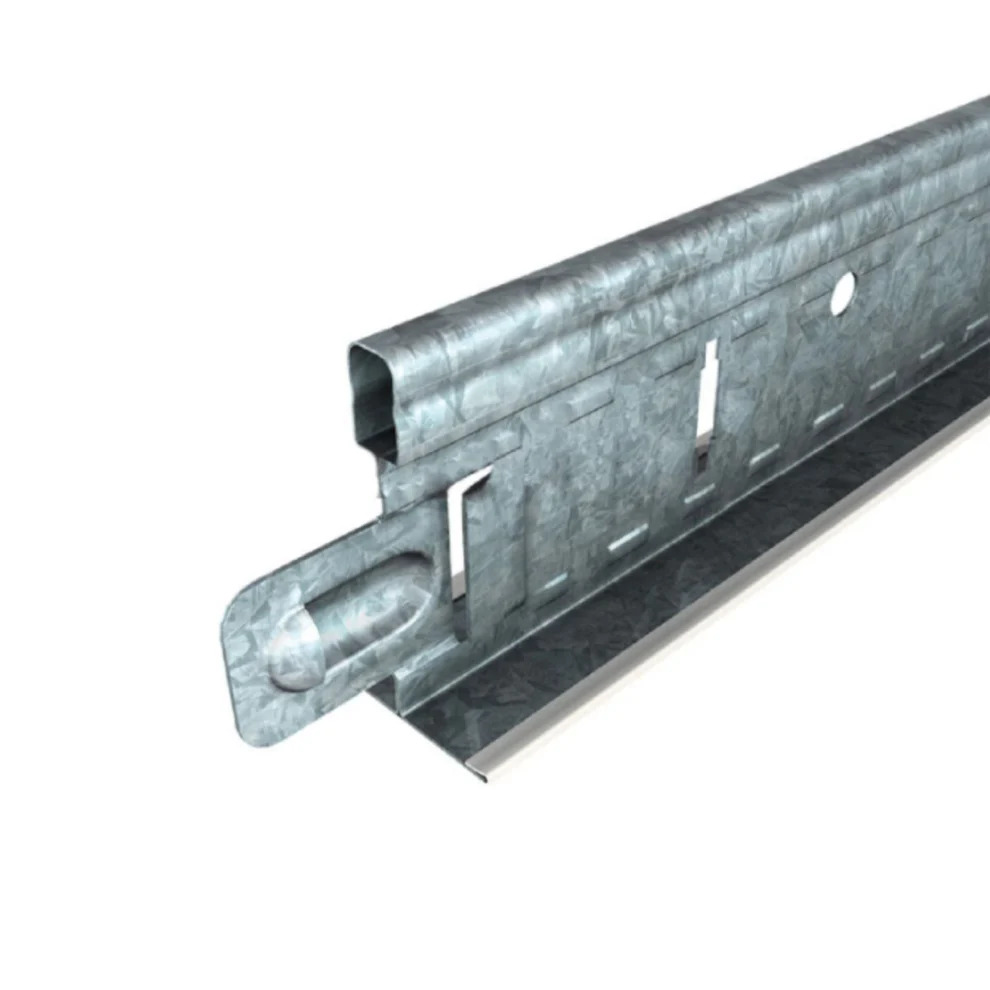

XD16 | |
Main Tee Separation Joint Clip |
 |
XD17 | |
Seismic Clip |
 |
XD19 |

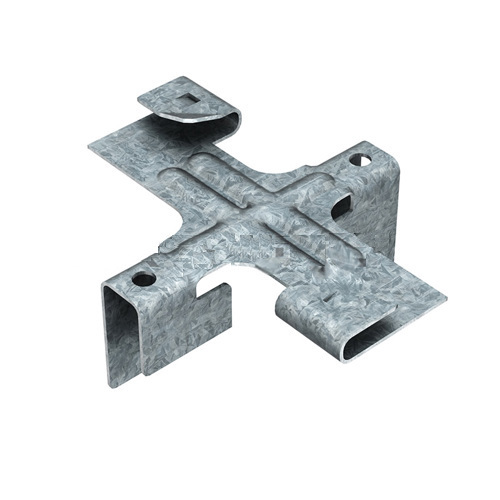

Strongback Clip |
|
|
|
XD1H | |

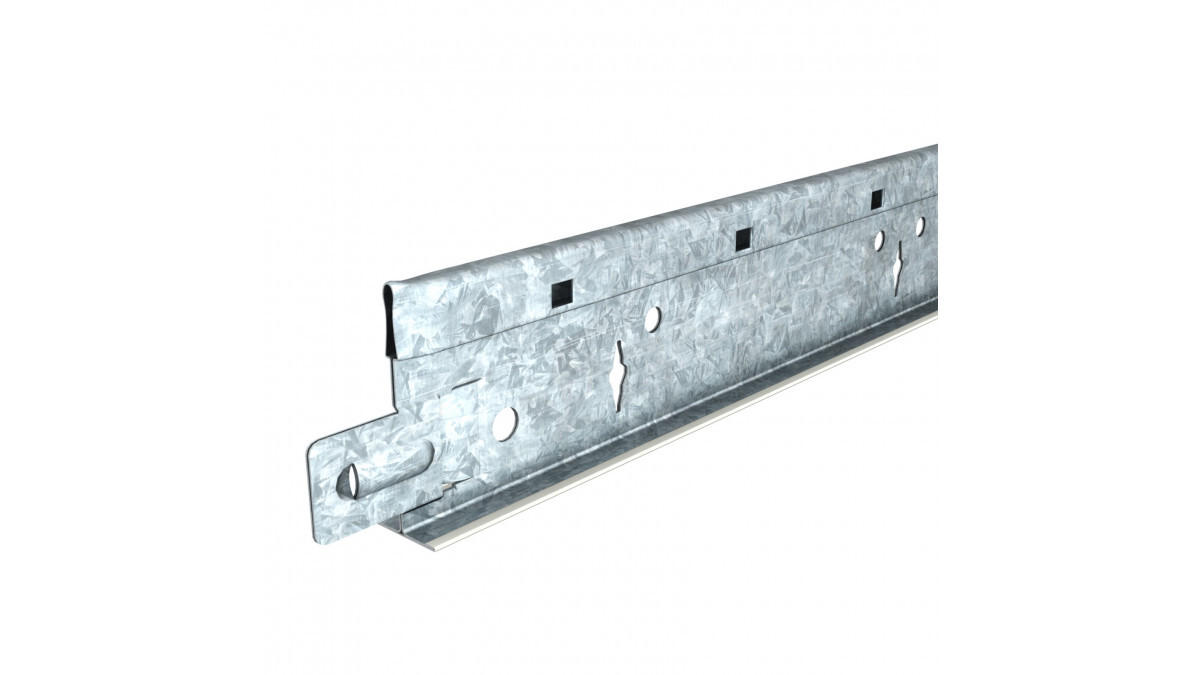

1 1/2″ (h) x 1 1/2″ (face) Heavy Gauge Main Tee |
 |

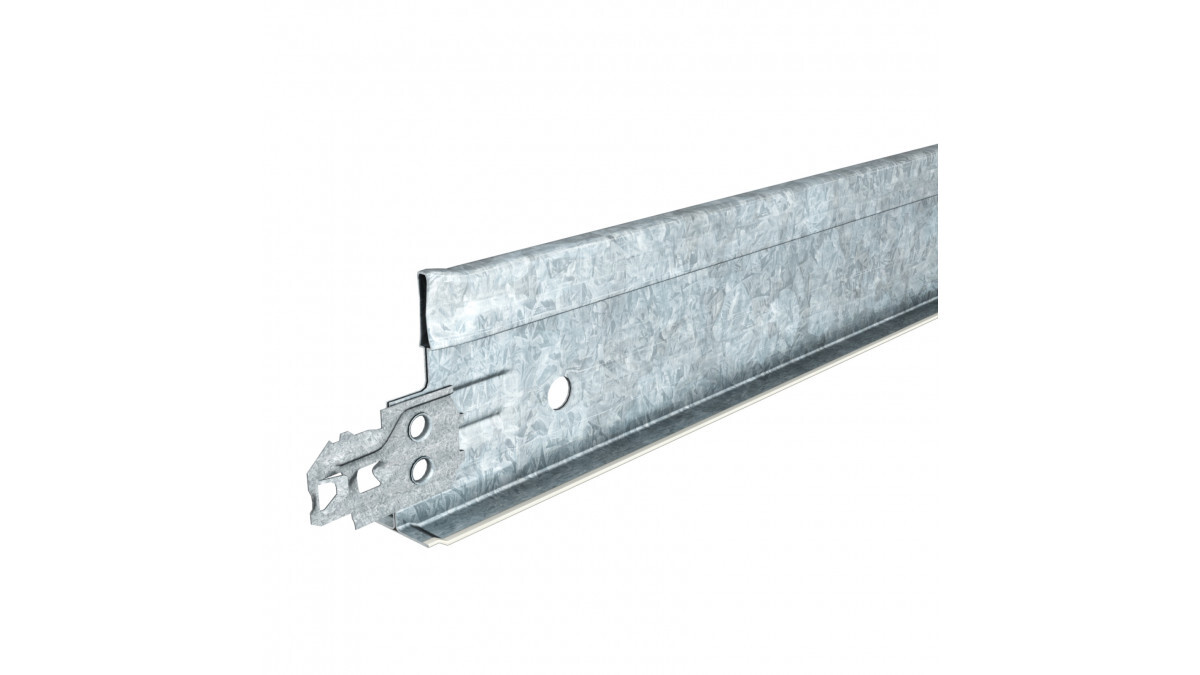

XD2 | |
1 1/2″ (h) x 1 1/2″ (face) Cross Tee |
 |
XD3 | |

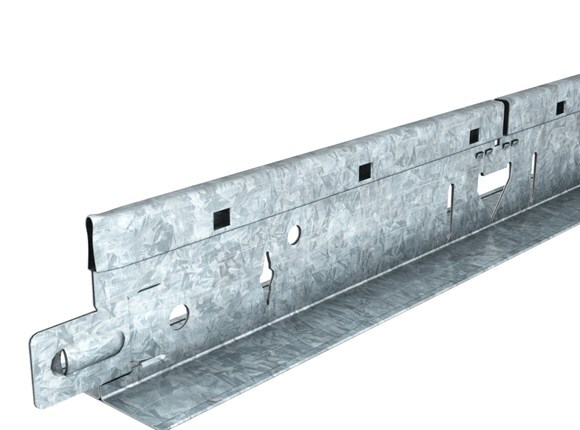

1 1/2″ (h) x 1″ (face) Main Tee |
 |

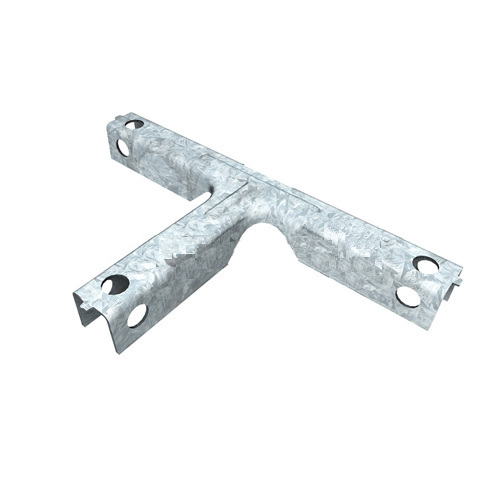

XD36 |
3-Way Off-Module Connector |
|
 |

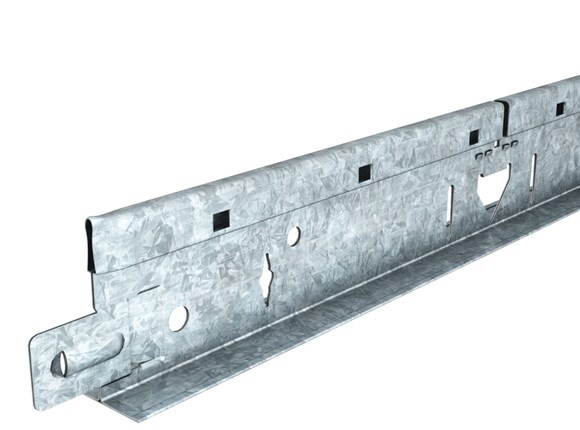

XD3H | |
1 1/2″ (h) x 1″ (face) Heavy Gauge Main Tee |
 |
XD5 | |

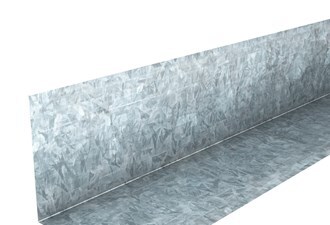

1 3/4″ (h) x 1 3/4″ (w) Wall Angle |
 |
XD6 | |

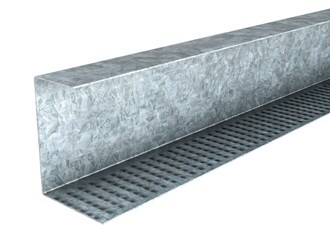

1 3/4″ (h) x 1 1/2″ (w) x 5/8″ (w) Perimeter Channel |
 |
XDSC |
Splice Clip – 180° |
|
 |
XDWH | |

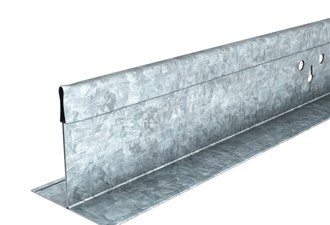

1 1/2″ (h) x 1 1/2″ (face) Heavy Gauge Wall to Wall Main Tee |
 |
XDWS | |

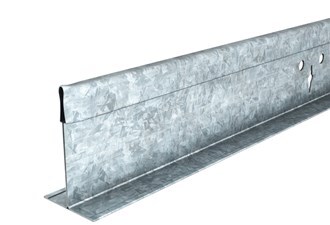

1 1/2″ (h) x 1 1/2″ (face) Wall to Wall Main Tee |
