JUDAH® DIRECT FIX CEILING SYSTEM
Our Judah® Concealed Direct Fix Ceiling System is designed to produce a high-quality structure for a flush or featured finish to your plasterboard ceiling.Available for non fire-rated and fire-rated applications, bulkhead and acoustic designs, it is strong enough to hold multiple layers of plasterboard.
The components within our Judah® ceiling system have been expertly designed to simply snap into sections, without the aid of mechanical tools. Offering an easy to install ceiling system, speeding up valuable time on site.Our Judah® Ceiling System can be installed with our Acoustic Mounts to improve airborne sound and impact sound transmitted between floors particularly important in multi-residential projects. Additionally, our Technical Team can provide seismic design solutions using our Judah® Ceiling System, which have been tested to meet The International Building Codes IBC.
PRODUCT FEATURES
FIRE-RATED AND ACOUSTIC DESIGN
Available for Non Fire-rated, Fire-rated and Acoustic applicationsEXPERTLY DESIGNED
To simply snap into sections, without the aid of mechanical tools.CURVED CEILING SYSTEMS
Using pre-curved furring channel and top cross rail
Introduction to our Judah® Ceiling System
Our Judah® Concealed Direct Fix Ceiling System is designed to produce a high-quality structure for a flush or featured finish to your plasterboard ceiling.
Available for non fire-rated and fire-rated applications, bulkhead and acoustic designs, it is strong enough to hold multiple layers of plasterboard.
The components within our Judah® ceiling system have been expertly designed to simply snap into sections, without the aid of mechanical tools. Offering an easy to install ceiling system, speeding up valuable time on site.
Our Judah® Ceiling System can be installed with our Acoustic Mounts to improve airborne sound and impact sound transmitted between floors particularly important in multi-residential projects. Additionally, our Technical Team can provide seismic design solutions using our Judah® Ceiling System, which have been tested to meet The international building codes.
WHAT YOU’LL LIKE ABOUT OUR Judah® Ceiling System
- Ceiling Battens and Top Cross Rails can be ordered in special lengths
- Able to be engineered designed for external ceiling use, e.g. Soffits
- Base Material is engineered from G2 BlueScope Steel for strength and reliability
- Rondo range of ceilings can interlock with each other in the same ceiling area, providing specialized ceilings after partitioning
- Allows easy, economical and true bulkhead corner ceiling finishes to be achieved by using furring channel along with concealed support clips and fixings
Advantages of our Metal Ceiling Battens
Using our metal Ceiling Battens in residential applications will cut back on the cost of call-back maintenance as they help control movement, reducing the chance of lining board cracks. We have a range of ceiling batten systems which are suitable for truss spacings from 24″ to 48″ and for use in cyclonic and high wind areas.
Our Ceiling Battens and accompanying clips have been load tested to ensure they meet all relevant standard requirements and can be purchased from our Judah® Partner Network.
Two of our most popular clips are the 314 Direct Fixing Clip and the 390 Batten Swivel Clip.

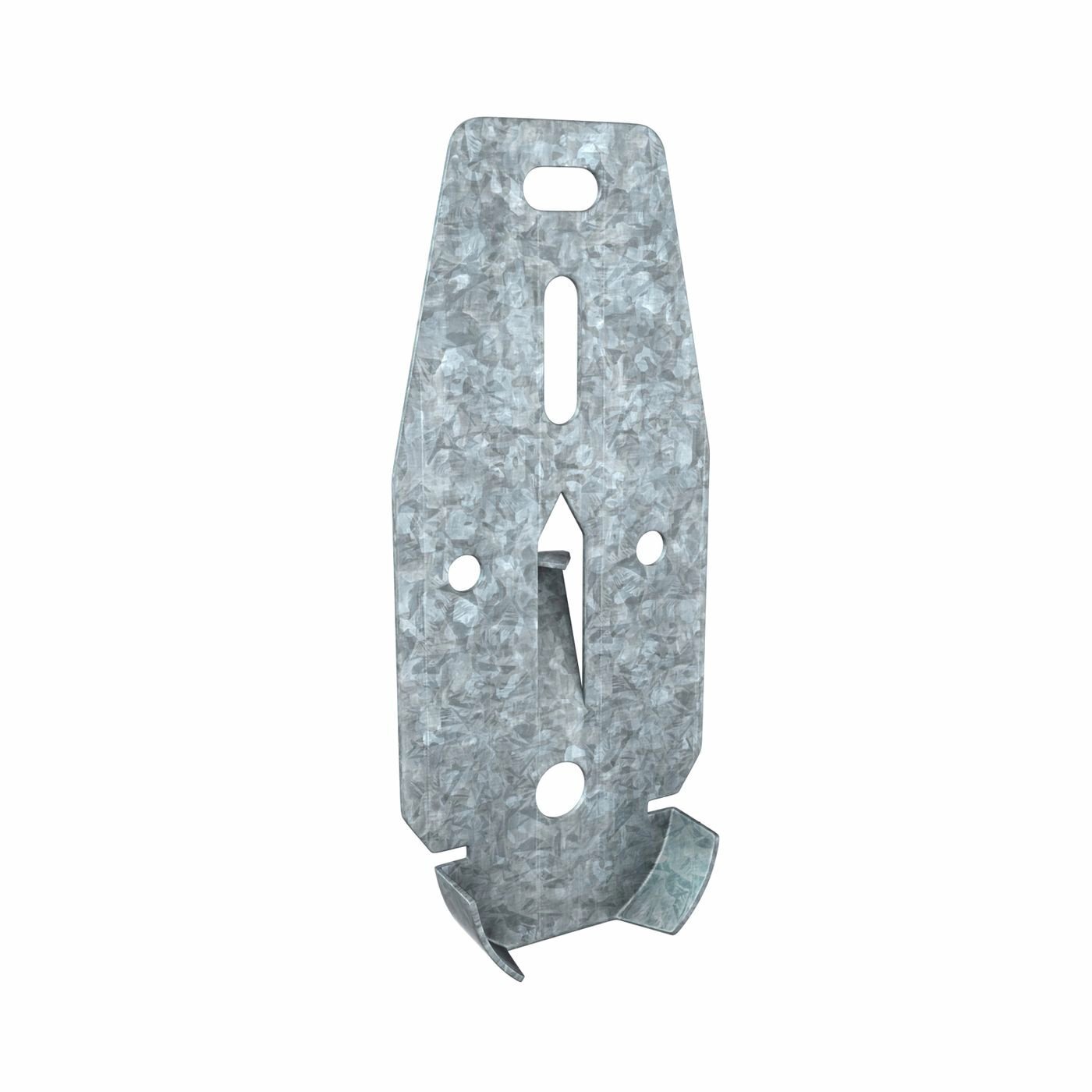

314 Direct Fixing Clip – to accommodate the increasing use of timber “I” beams, the 314 Clip has two extra nail or screw slots lower down on the clip, with an additional holding tab to assist installation.
Cleverly, the temporary holding tab is tapped into the timber beam when the clip is at the right level freeing up both your hands to secure the clip.
390 Batten Swivel Clip – with the ability to rotate 360°, the swivel clip can easily turn the ceiling batten on an angle that suits the change in roof truss direction. It also incorporates the temporary holding tab for quick and easy installation.
WHAT IS THE JUDAH® Ceiling System SUITABLE FOR?
- Flush plasterboard ceilings
- Fire Rated Ceiling System Applications
- Raked and Cantilevered Ceilings
- Bulkheads as an architectural feature or concealing services
- Wall Framing for masonry walls – battening out irregular walls or providing a cavity for cables and plumbing
- Acoustic Ceiling Design available
PROJECTS THAT HAVE BENEFITED FROM THE USE OF OUR JUDAH® Ceiling System
Since its initial introduction over 60 years ago, the JUDAH® Concealed Ceiling System has seen its use around the world in some remarkable projects around the world from the Setia City Mall in Malaysia, to Australia’s largest tertiary institution, RMIT University in Melbourne.
Specialized JUDAH® Concealed Ceiling Systems have also been designed and produced, including those with a specific radius to create vaulted ceilings or curved ceilings, such as in the Pod Pavilion in Malaysia, the Aquatic Centre in Adelaide, as well as the famous “sky ceilings” at Venetian Casino in Macau.
| IMAGE | PART NUMBER | CAD FILE | DESCRIPTION |
|---|---|---|---|
 |

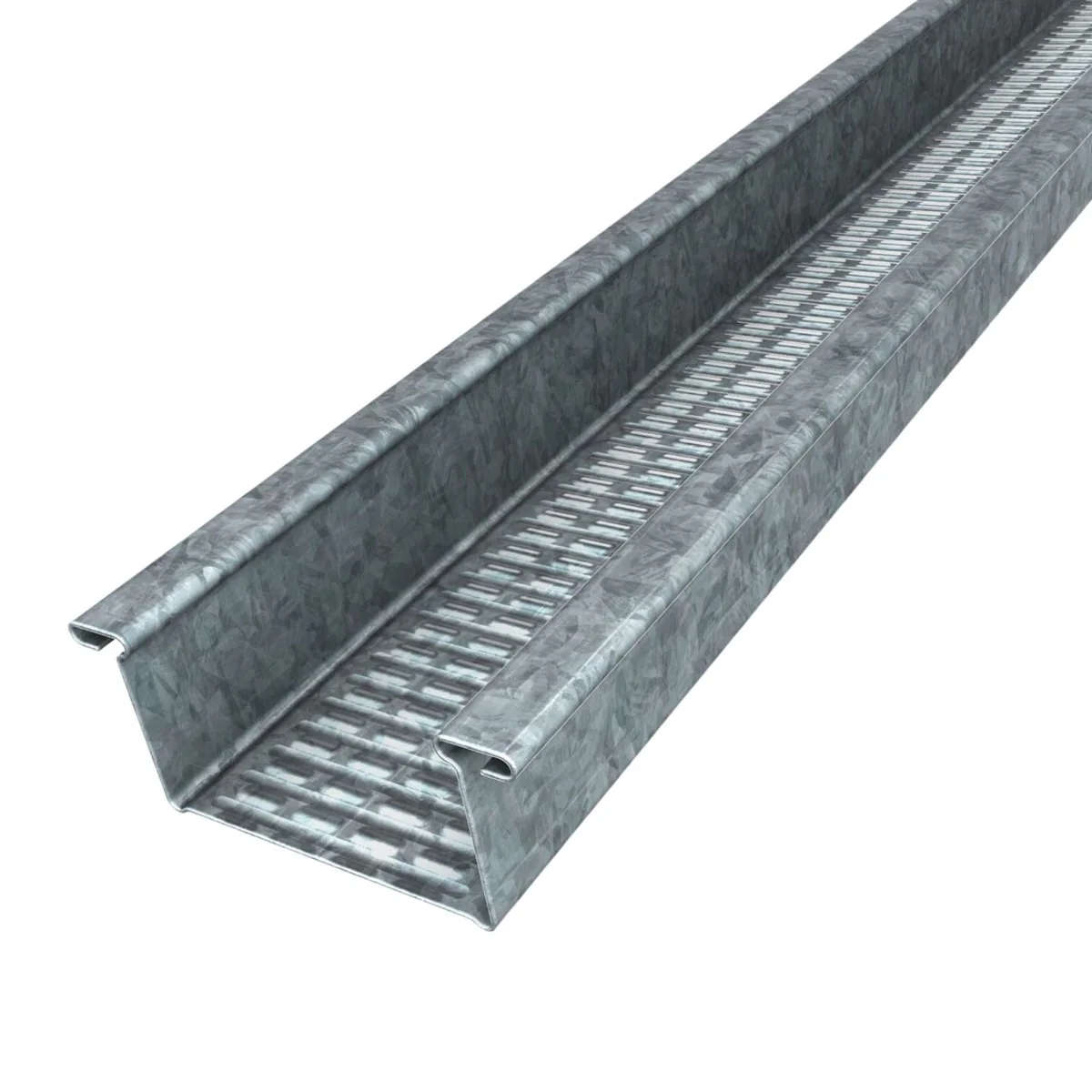

129 |  |
1″ (h) x 1 1/2″ (face) Furring Channel |
 |

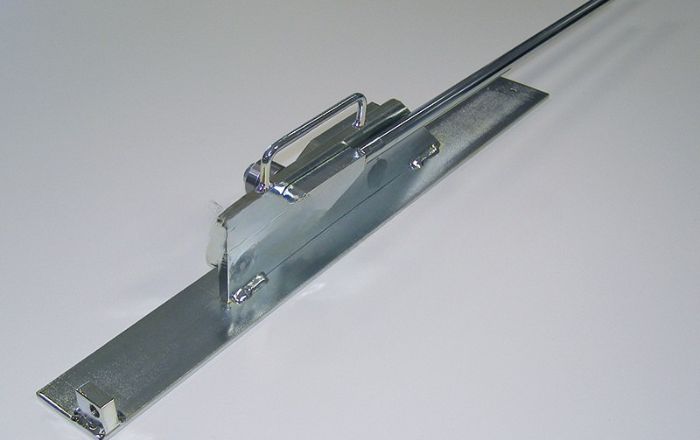

130 |
Rod Bending Tool |
|
 |

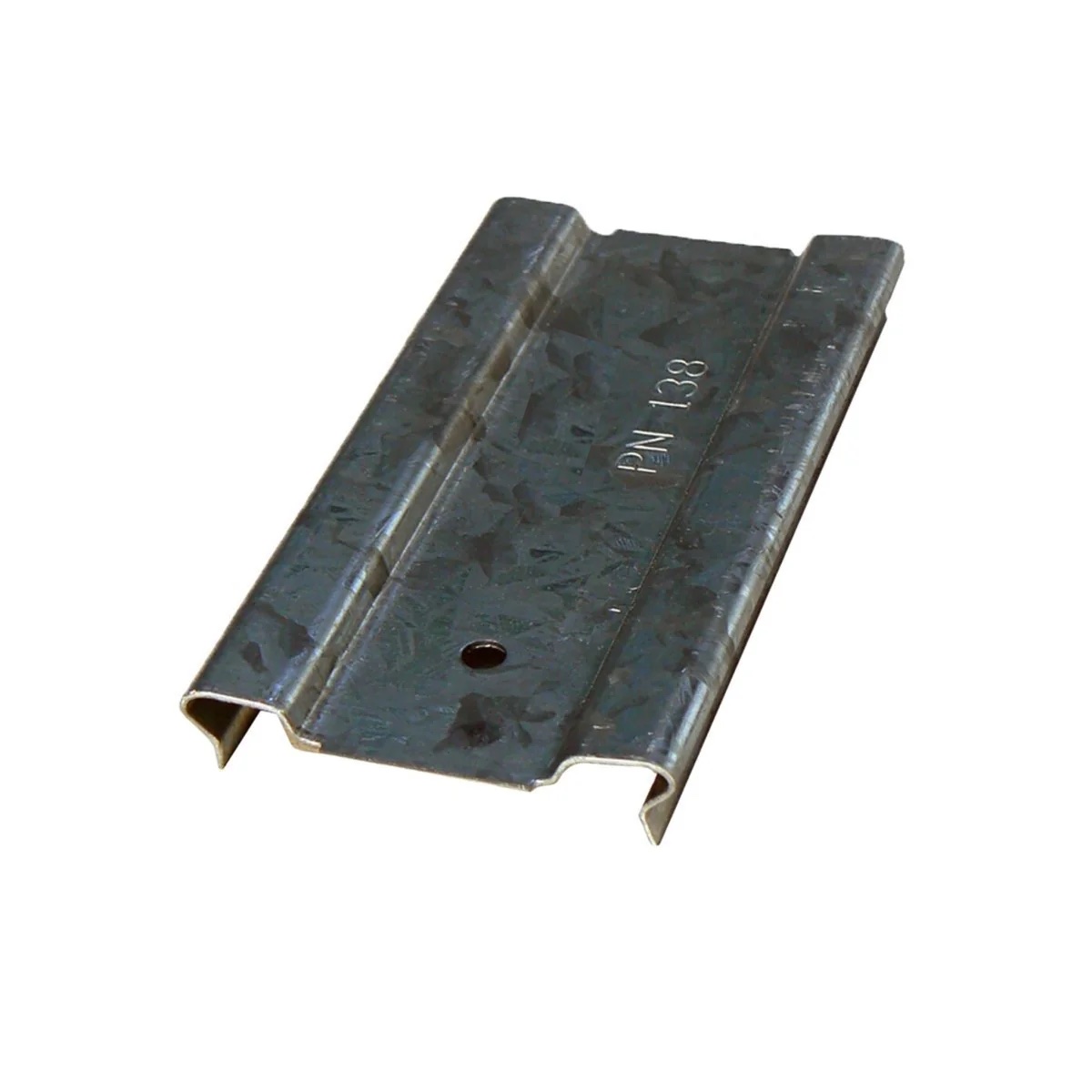

138 | |
4″ (l) x 2″ (w) Section Joiner – suits 129/308/309A Furring Channel |
 |

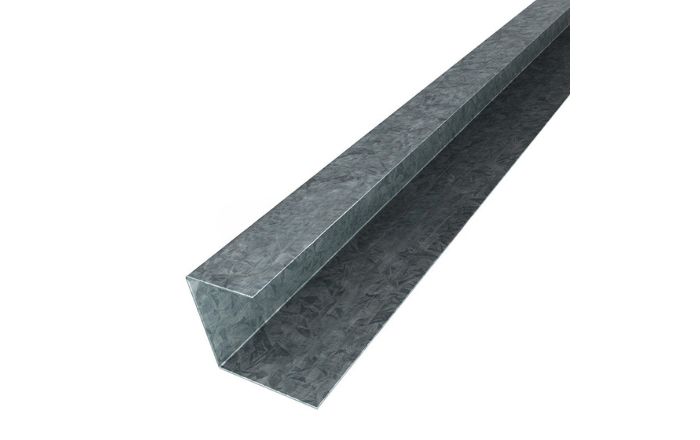

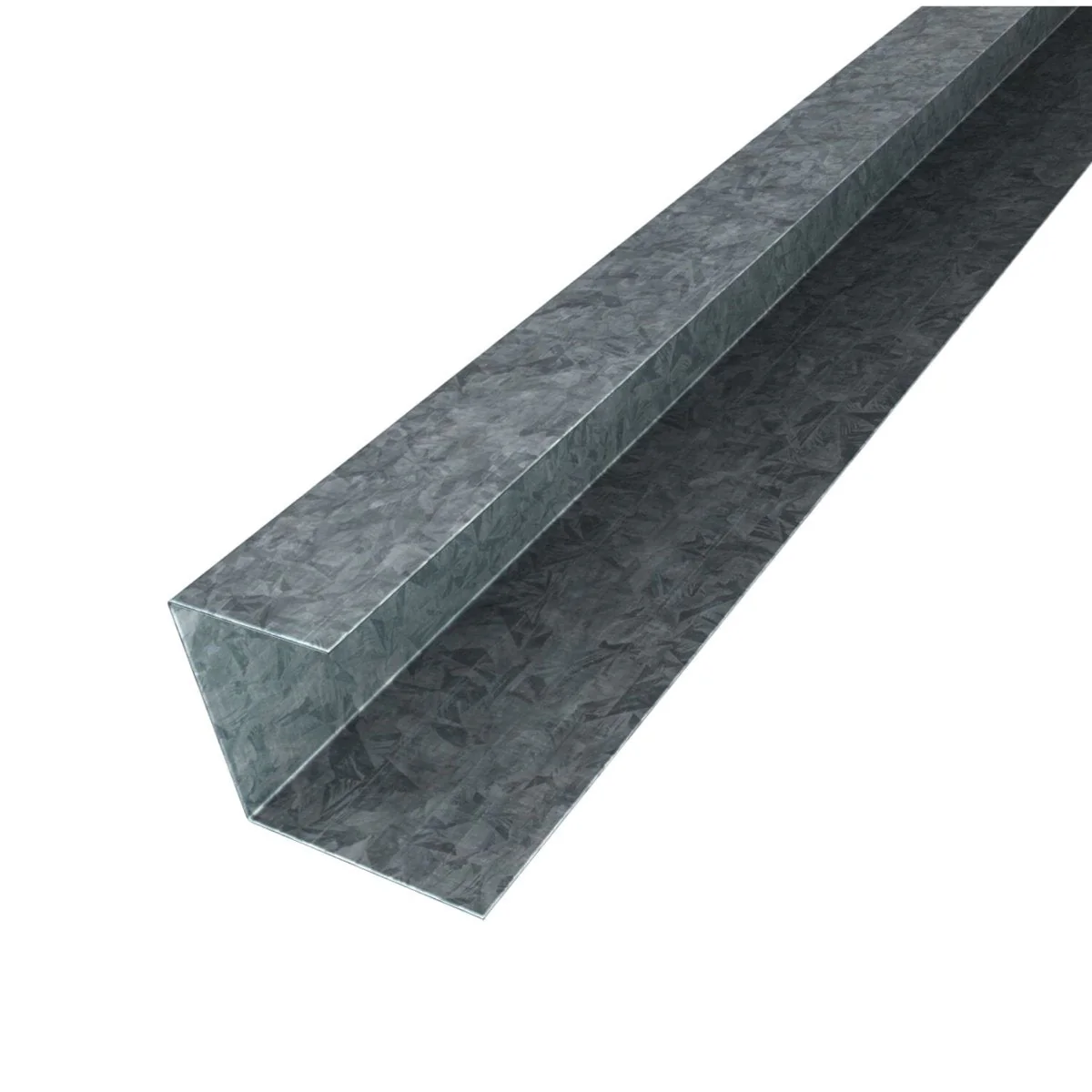

140 | |
1″ (h) x 1″ & 1 1/2″ (uneven leg) Wall Track – suits 129/155 Furring Channel |
 |
141 | |
1″ (h) x 1″ & 1 1/2″ (uneven leg) Seismic Wall Track – suits 129/155 Furring Channel |
 |

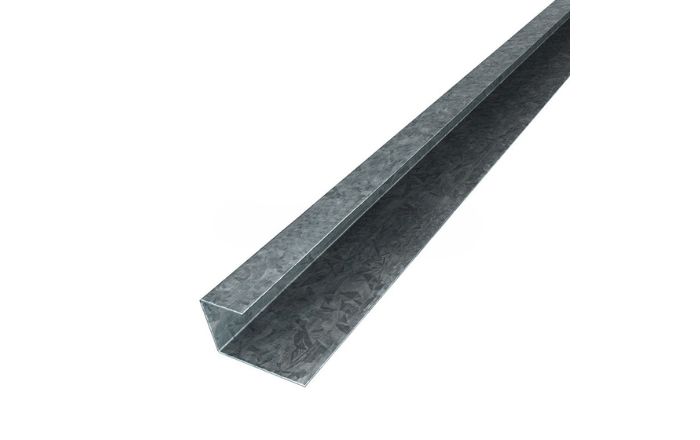

142 | |
5/8″ (h) x 1/2″ & 1″ (uneven leg) Wall Track – suits 308 Furring Channel |
|
|
143 |
1″ (h) x 1″ & 1 1/2″ (uneven leg) Wall Track – suits 309A Furring Channel |
|
 |

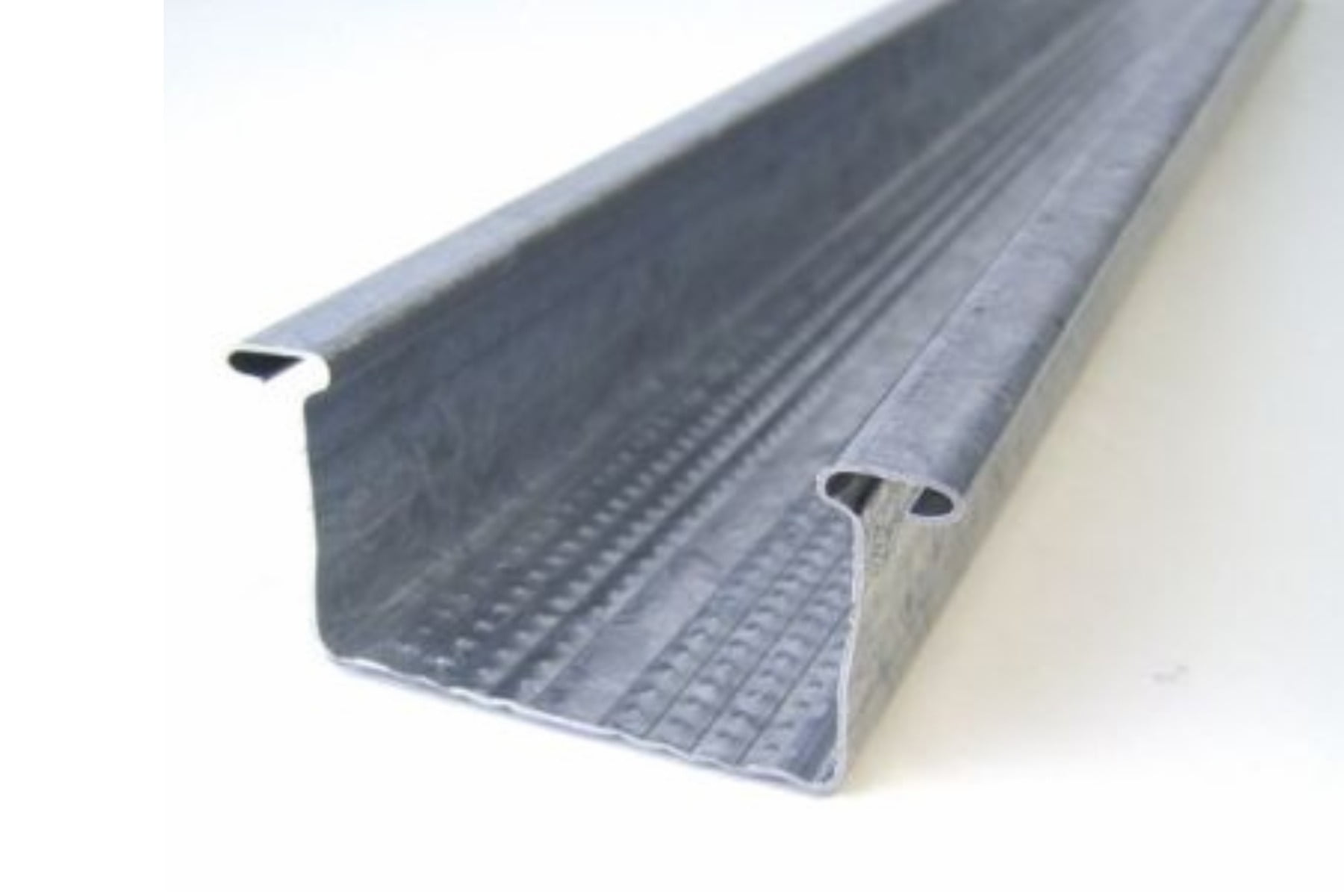

155 | |
1″ (h) x 2″ (face) Furring Channel |
 |
156 | |
3 5/8″ (h) x 3″ (w) DFC – 155 Furring Channel to Timber/Steel |
 |

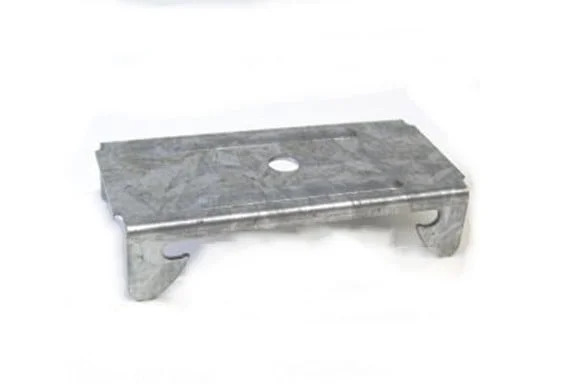

157 | |
5/8″ (h) x 3″ (w) DFC – 155 Furring Channel to Masonry/ Concrete |
 |

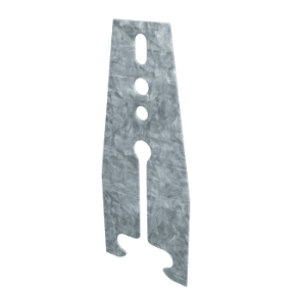

166 | |
3 5/8″ (h) x 1 1/2″ (w) DFC – 125/127/128 Top Cross Rail to Timber/Steel |
 |

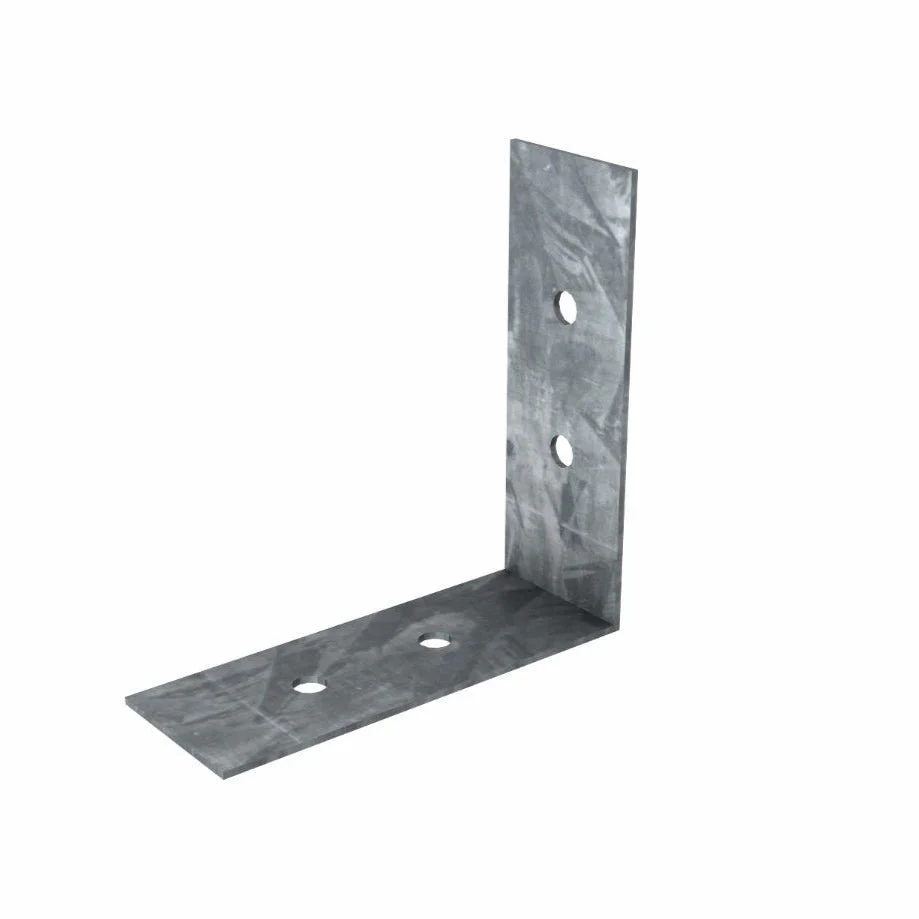

188 | |
3/4″ (h) x 3/4″ (w) x 5/8″ (l) Wall Angle Bracket |
 |

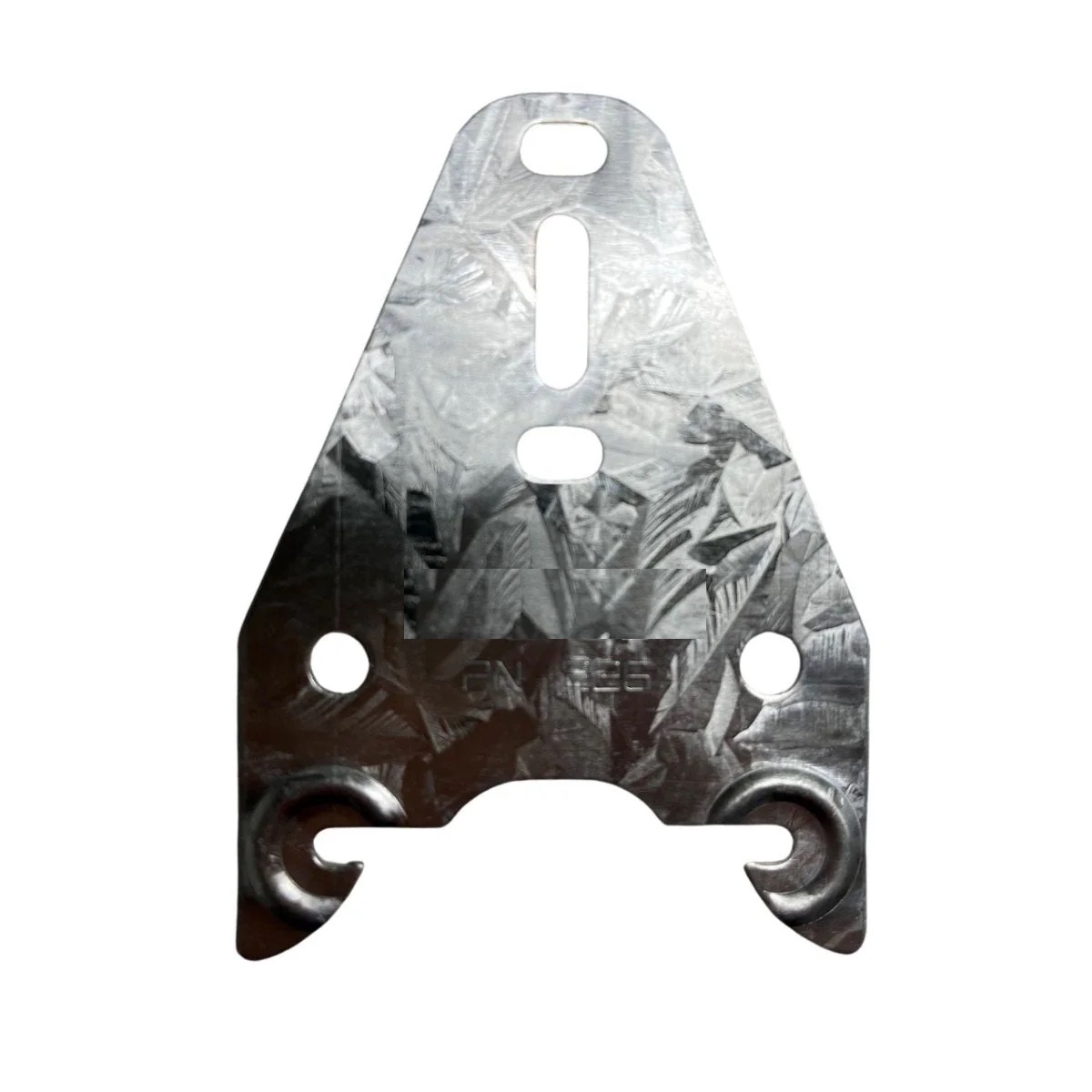

226 | |
3 5/8″ (h) x 2 1/2″ (w) DFC – 129/308/309A Furring Channel to Timber/Steel |
 |
237 | |
5/8″ (h) x 2 1/2″ (w) DFC – 129/308/309A Furring Channel to Masonry/Concrete |
 |

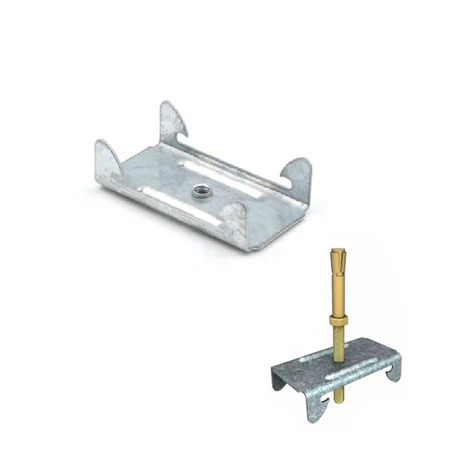

239 | |
5/8″ (h) x 2 1/2″ (w) DFC – 129/308/309A Furring Channel to Masonry/Concrete – M6 Thread |
 |

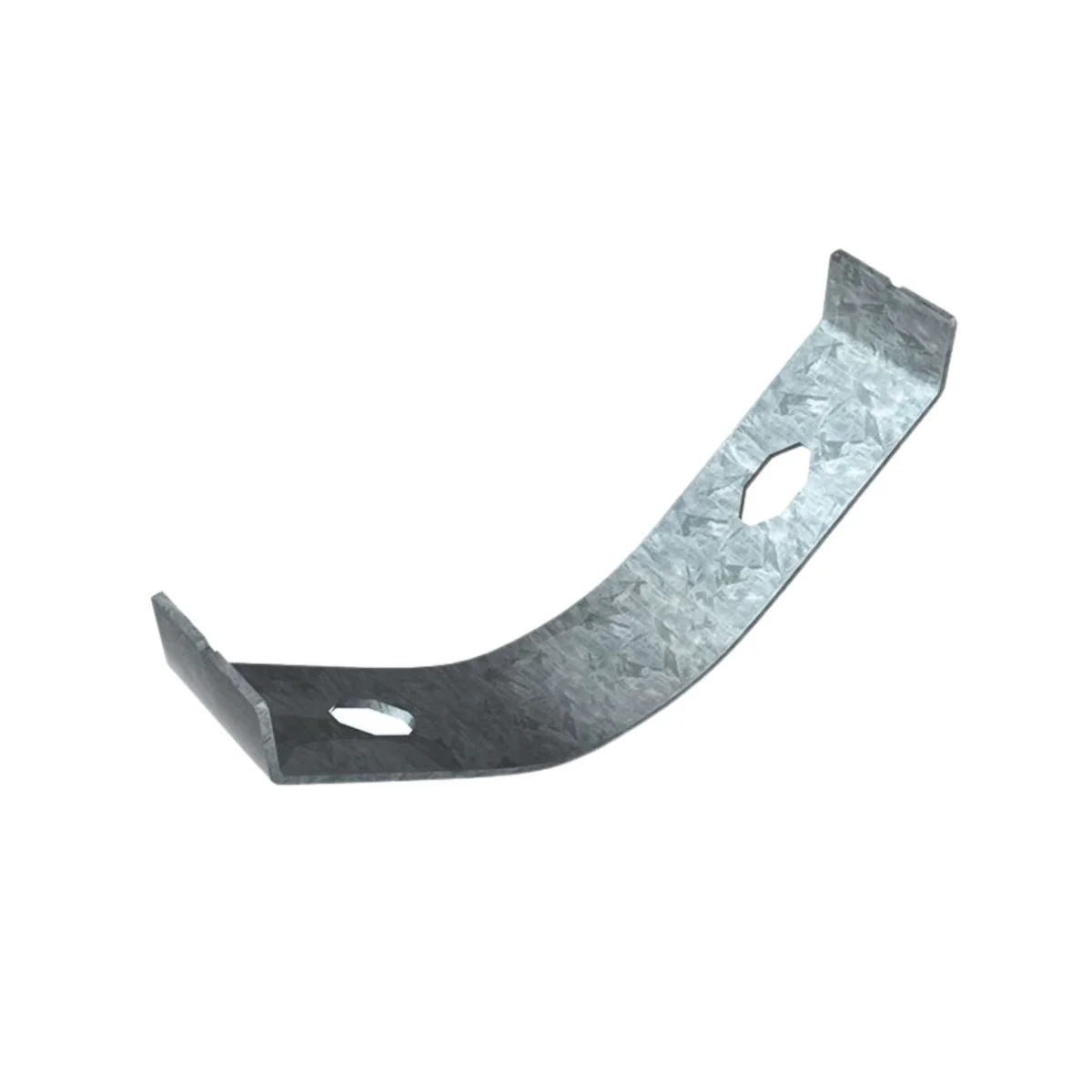

254 | |
3 1/4″ (h) x 3/4″ (w) Spring Adjustable Rod Joiner – suits 121 Rod & 122 Threaded Rod |
 |
272 | |
8″ (l) x 1″ (w) Section Joiner – suits 125/127/128 Top Cross Rail |
 |

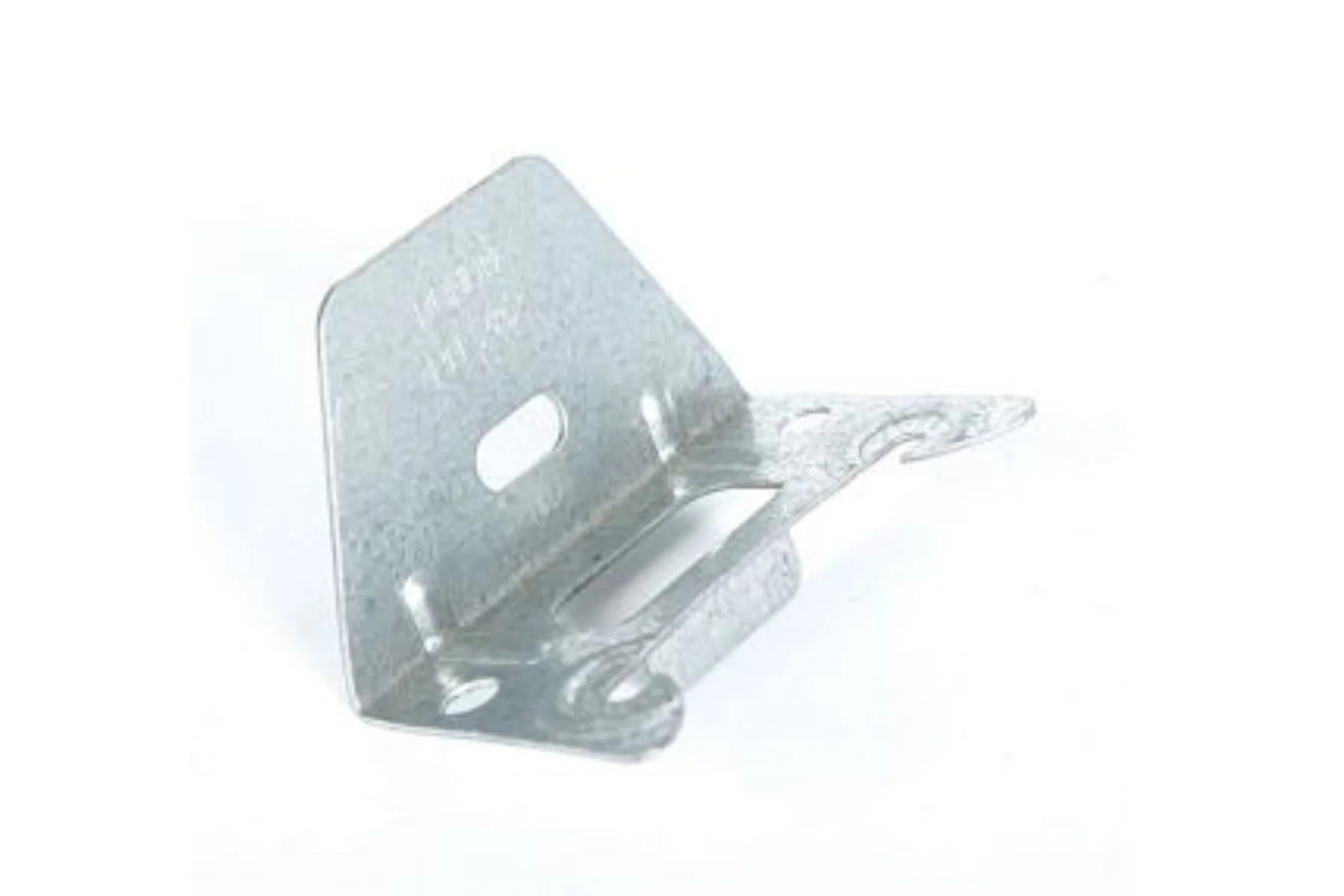

282 | |
3″ (h) x 2 1/2″ (w) DFC – 129/308/309A Furring Channel to Timber/Steel – Membrane Insulation |
 |
301 | |
5/8″ (h) x 1 1/2″ (w) Ceiling Batten |
 |

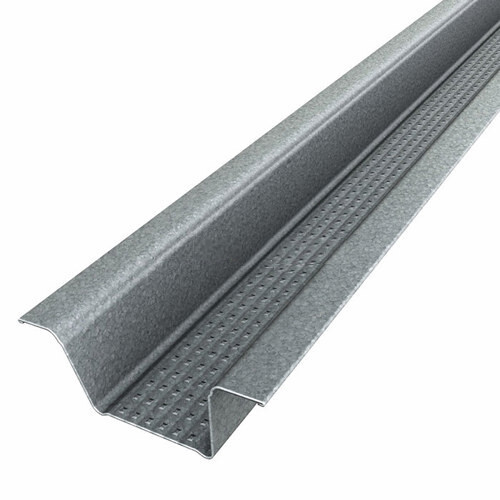

303 | |
1″ (h) x 1 1/2″ (face) Cyclonic Ceiling Batten |
 |

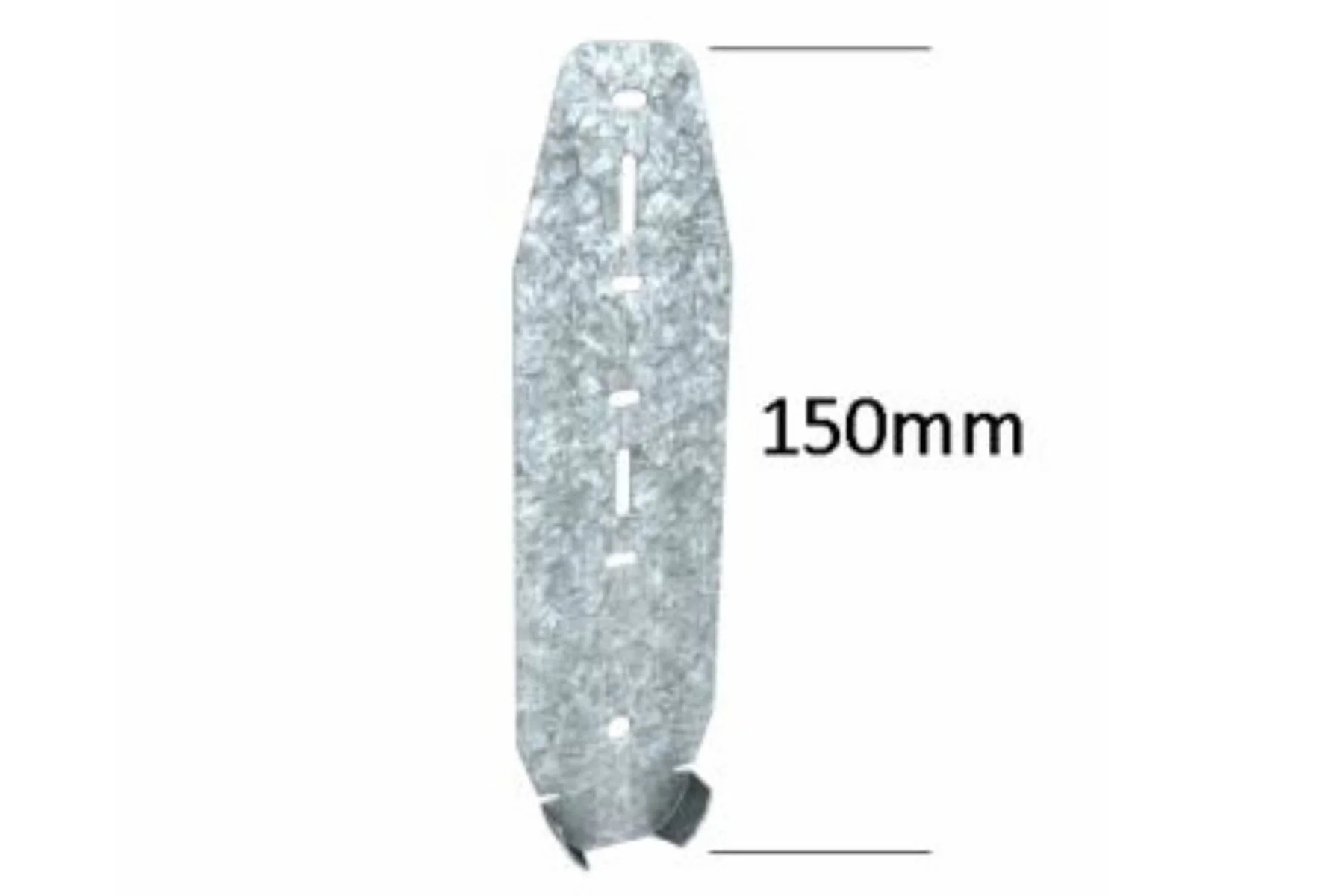

305 | |
6″ (h) x 1 3/4″ (w) DFC – 301 Ceiling Batten to Timber/Steel |
 |

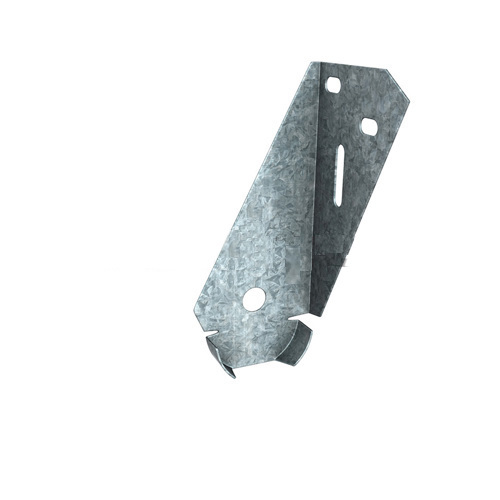

307 | |
3 5/8″ (h) x 1 3/4″ (w) DFC – 301 Ceiling Batten to Timber/Steel at 90° Angle |
 |

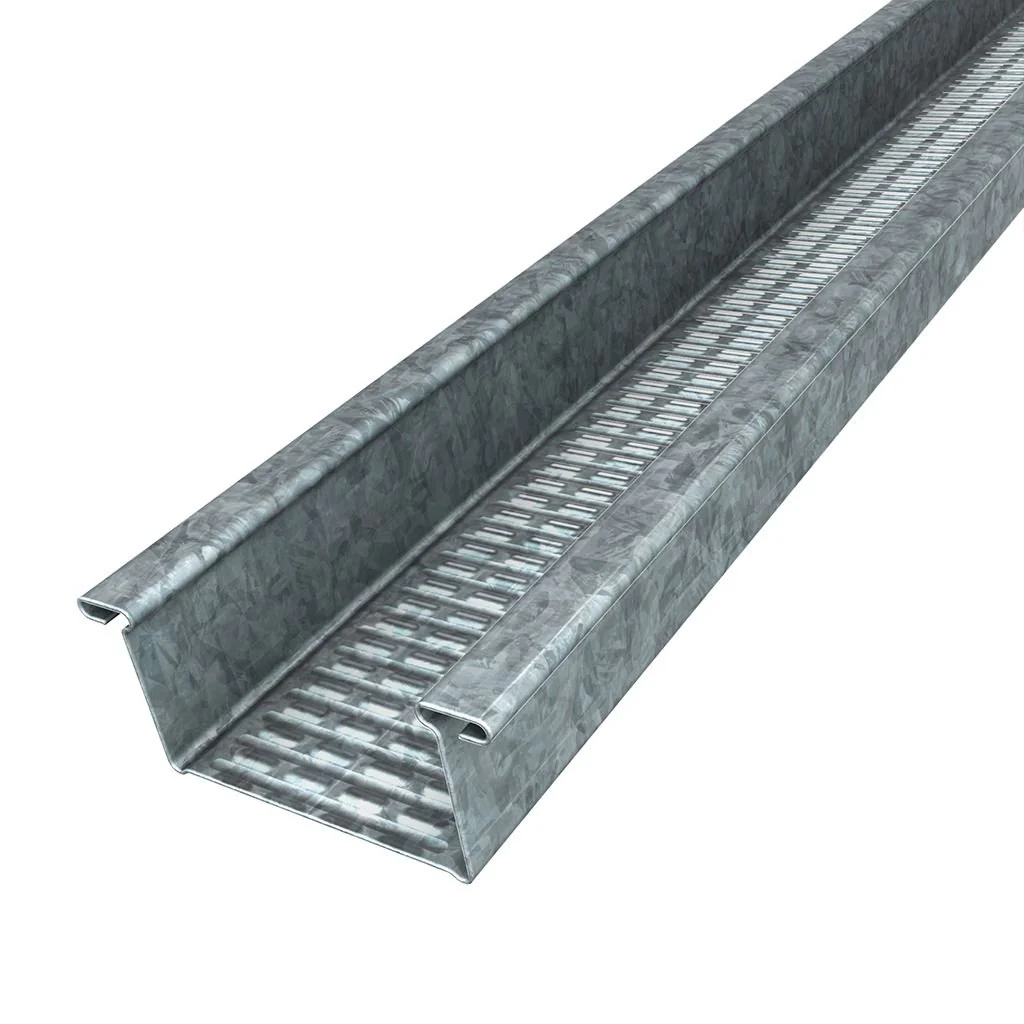

308 | |
5/8″ (h) x 1 1/2″ (face) Furring Channel |
 |
308R | |
5/8″ (h) x 1 1/2″ (face) Radiused Furring Channel |
 |

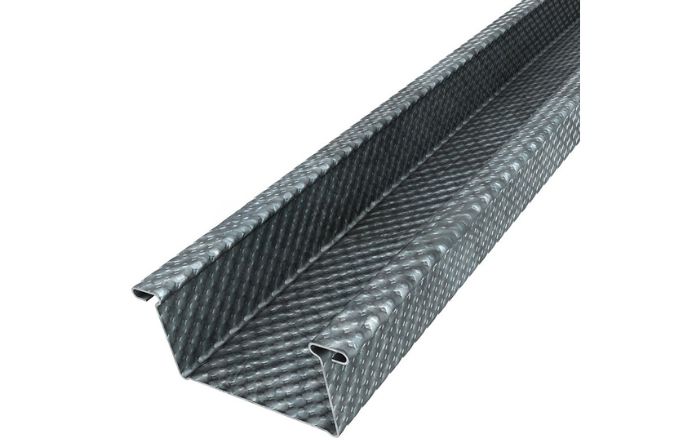

309A |
1″ (h) x 1 1/2″ (face) Judah ARMOUR® Furring Channel |
|
 |
310 | |
1 1/2″ (h) x 1 3/4″ (face) Ceiling Batten |
 |

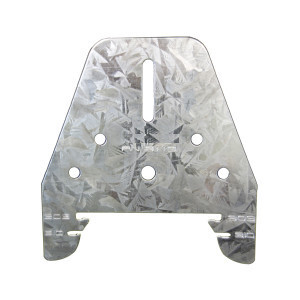

311D | |
3 5/8″ (h) x 3 5/8″ (w) Dual Purpose DFC – 310/303 Ceiling Batten to Timber/Steel |
 |

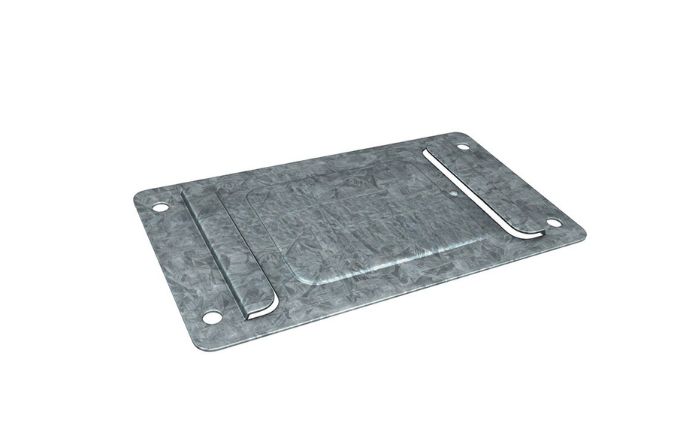

312 | |
2″ (l) x 1″ (w) Section Joiner – suits 310 Ceiling Batten |
 |

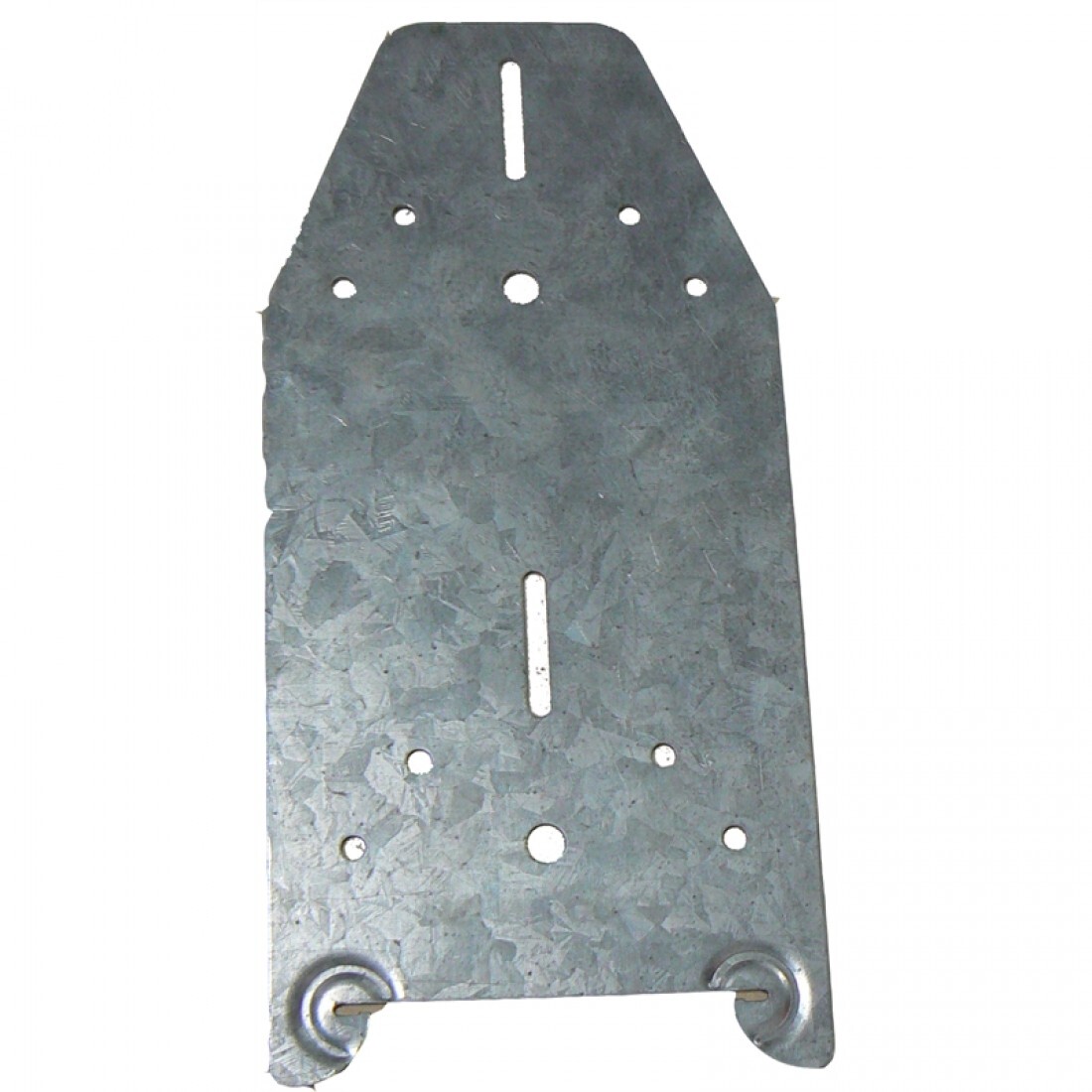

313 | |
8″ (h) x 3 5/8″ (w) Extended DFC – 310 Ceiling Batten to Timber/Steel |
 |
314 | |
3 5/8″ (h) x 1 3/4″ (w) DFC with Positioning Tab – 301 Ceiling Batten to Timber/Steel |
 |

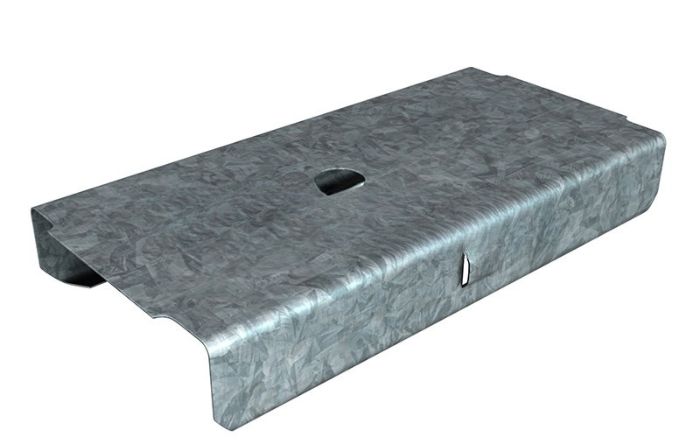

315 | |
4″ (l) x 1 1/2″ (w) Section Joiner – suits 301 Ceiling Batten |
 |

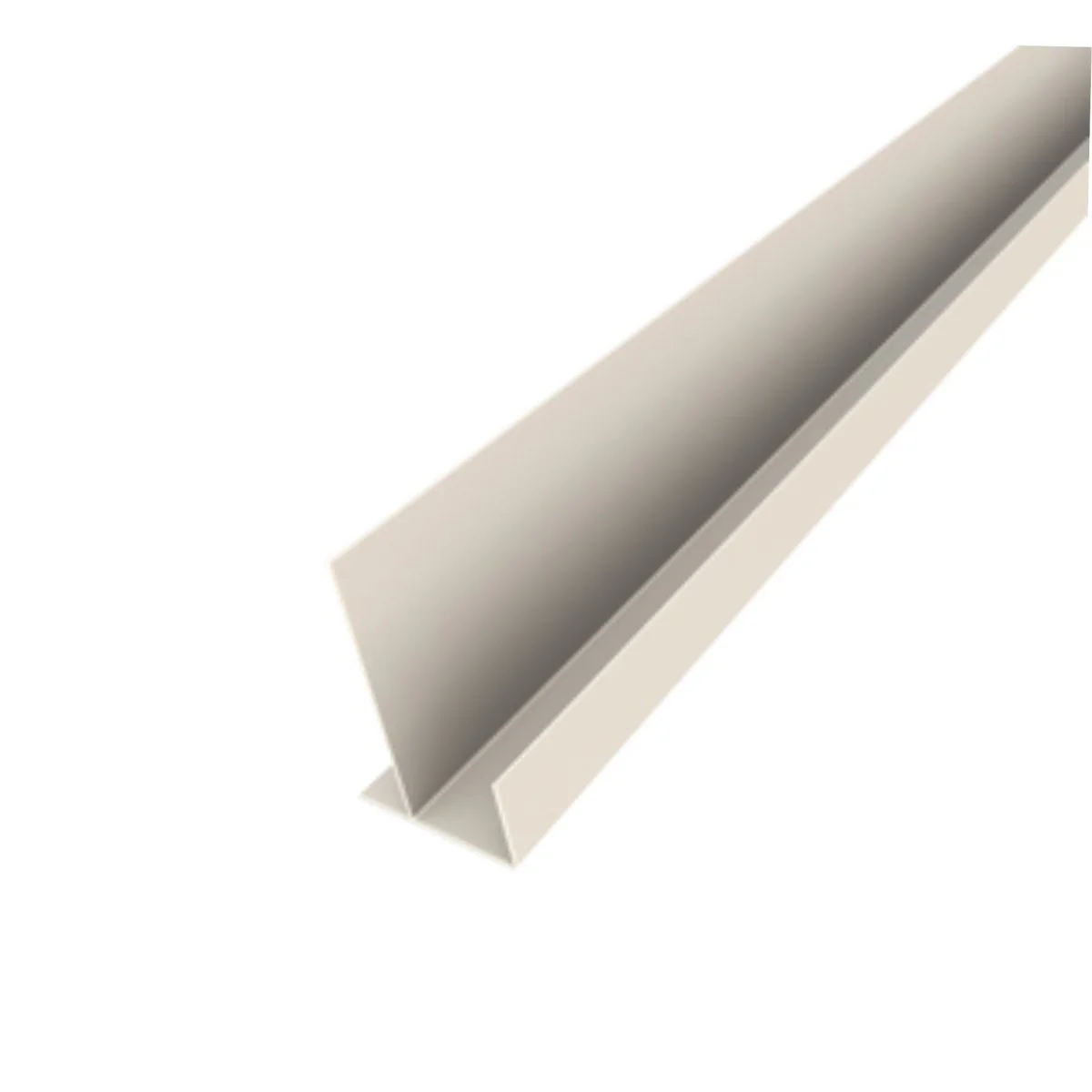

321 | |
Aluminium Direct Fix Bulkhead Trim for 13mm Plasterboard – Tile White |
 |

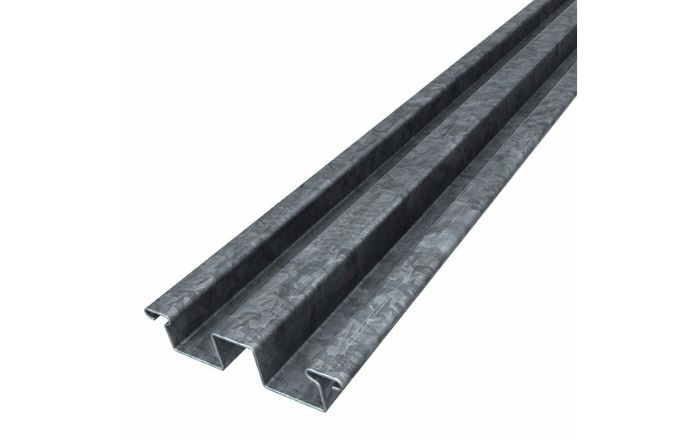

333 | |
1/2″ (h) x 2 1/2″ (w) Recessed Furring Channel |
|
|
340 | |
1 1/2″ (h) x 1″ & 1 1/2″ (uneven leg) Wall Track – suits 310 Ceiling Batten |
 |

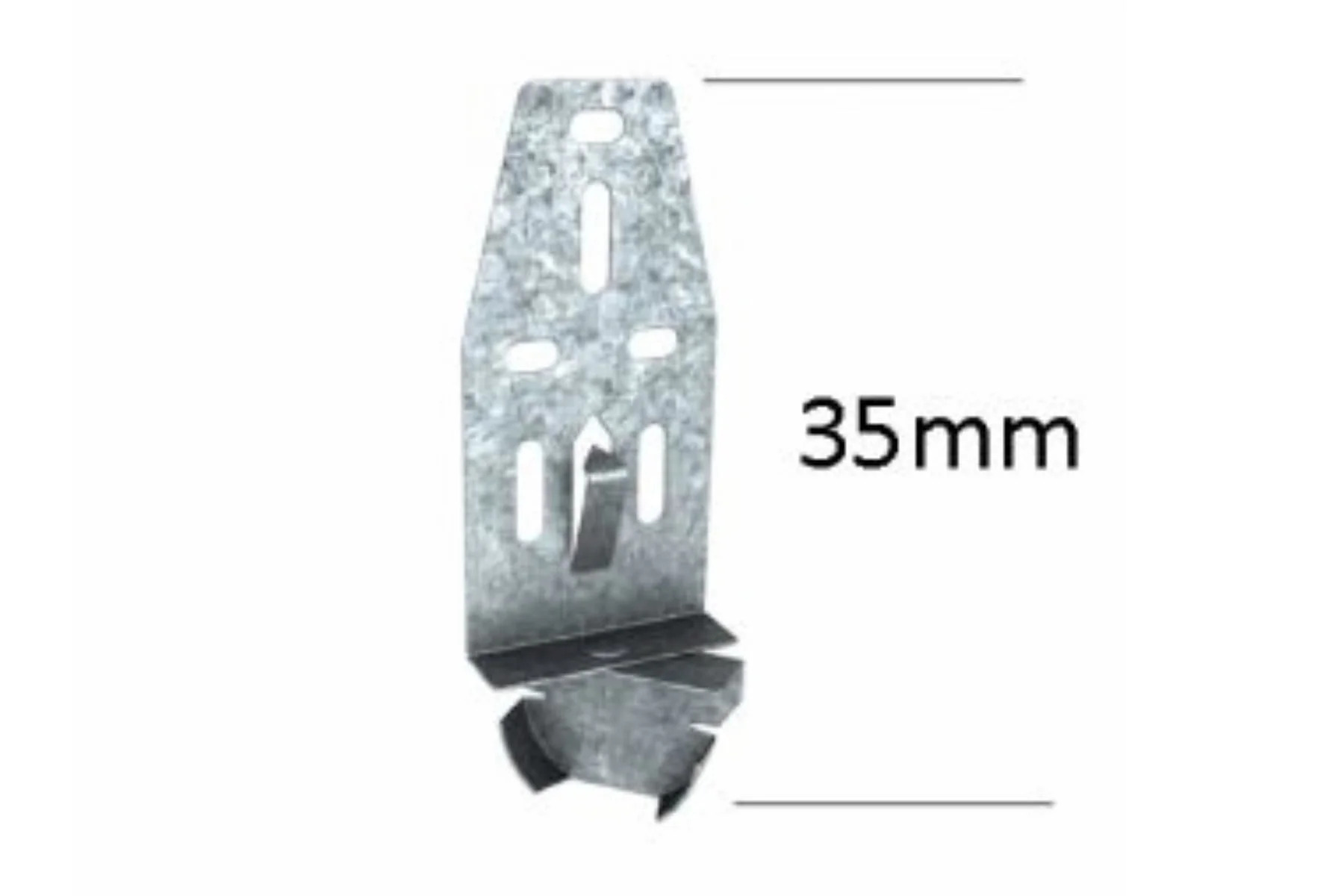

390 | |
4″ (h) x 1 3/4″ (w) Swivel DFC – 301 Ceiling Batten to Timber/Steel |
 |

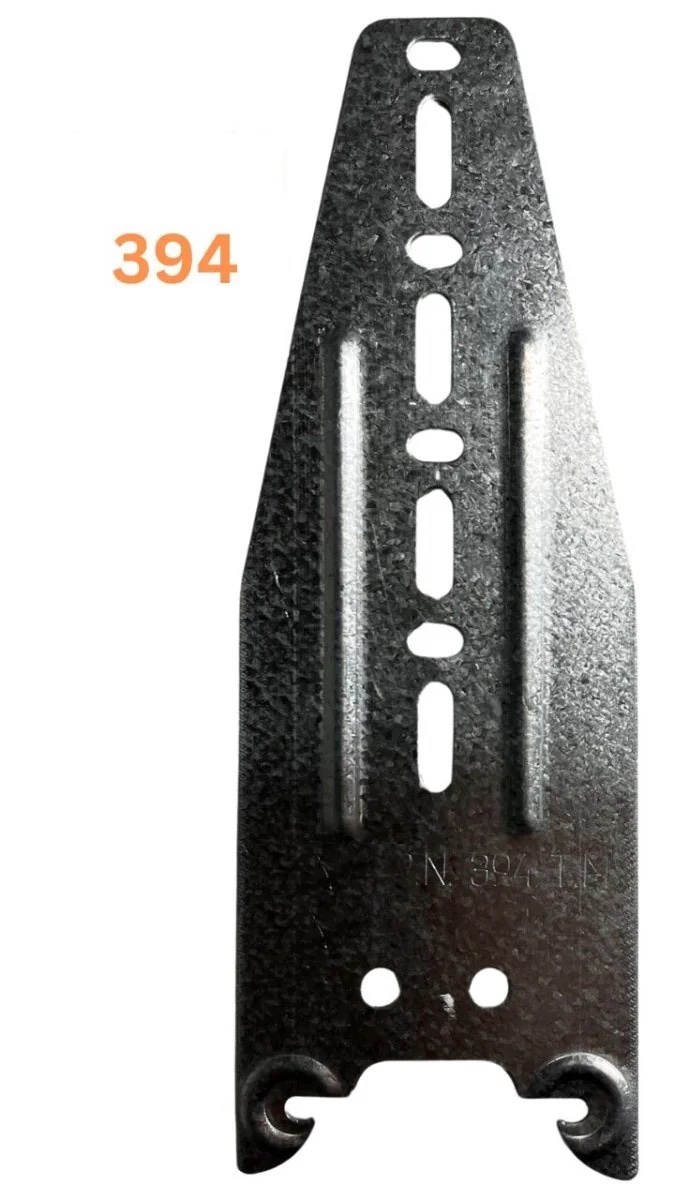

394 | |
8″ (h) x 2 1/2″ (w) DFC – 129/308/309A Furring Channel to Timber/Steel |
 |

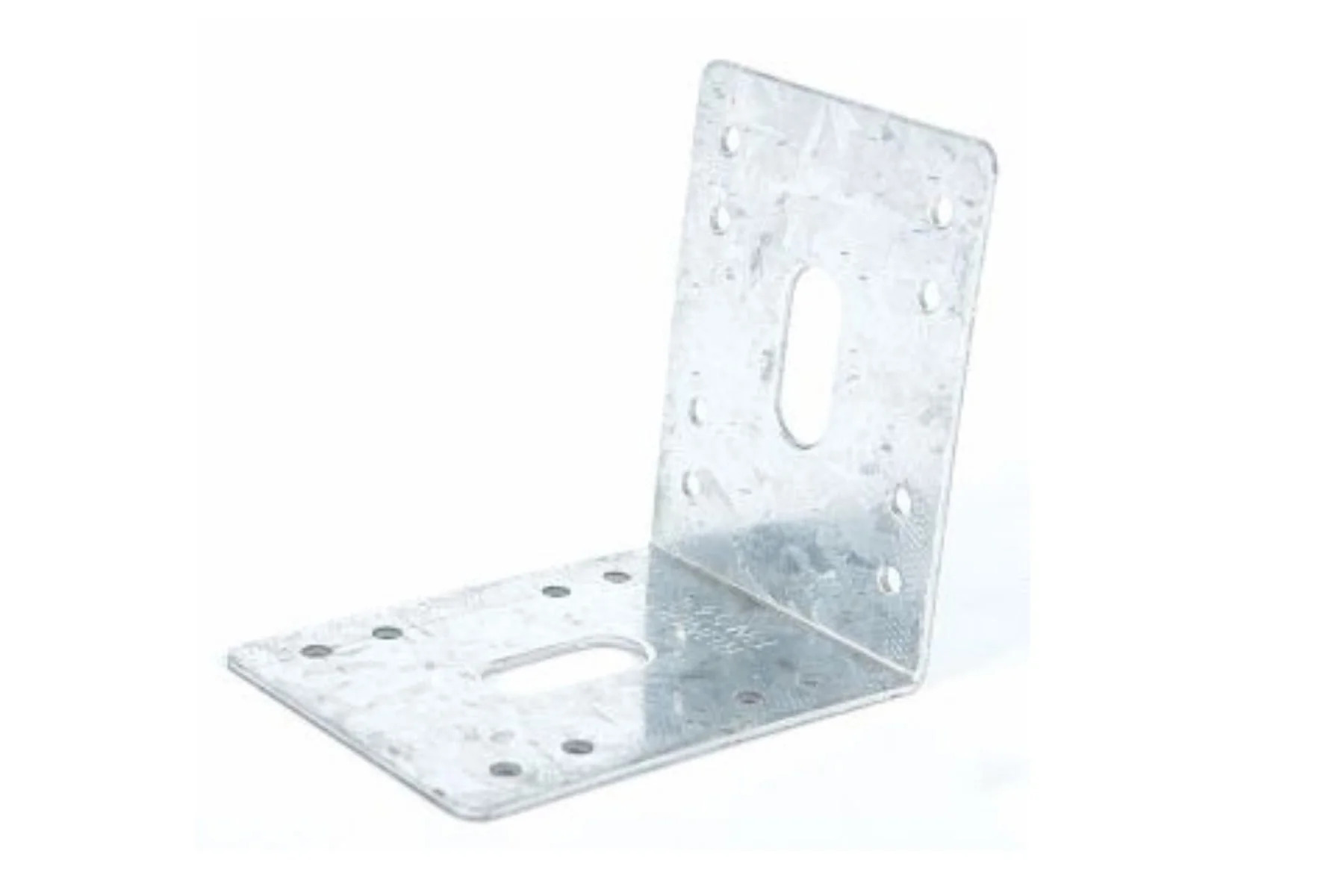

545 | |
3″ (h) x 3″ (w) x 2″ (l) ‘L’ Bracket |
 |

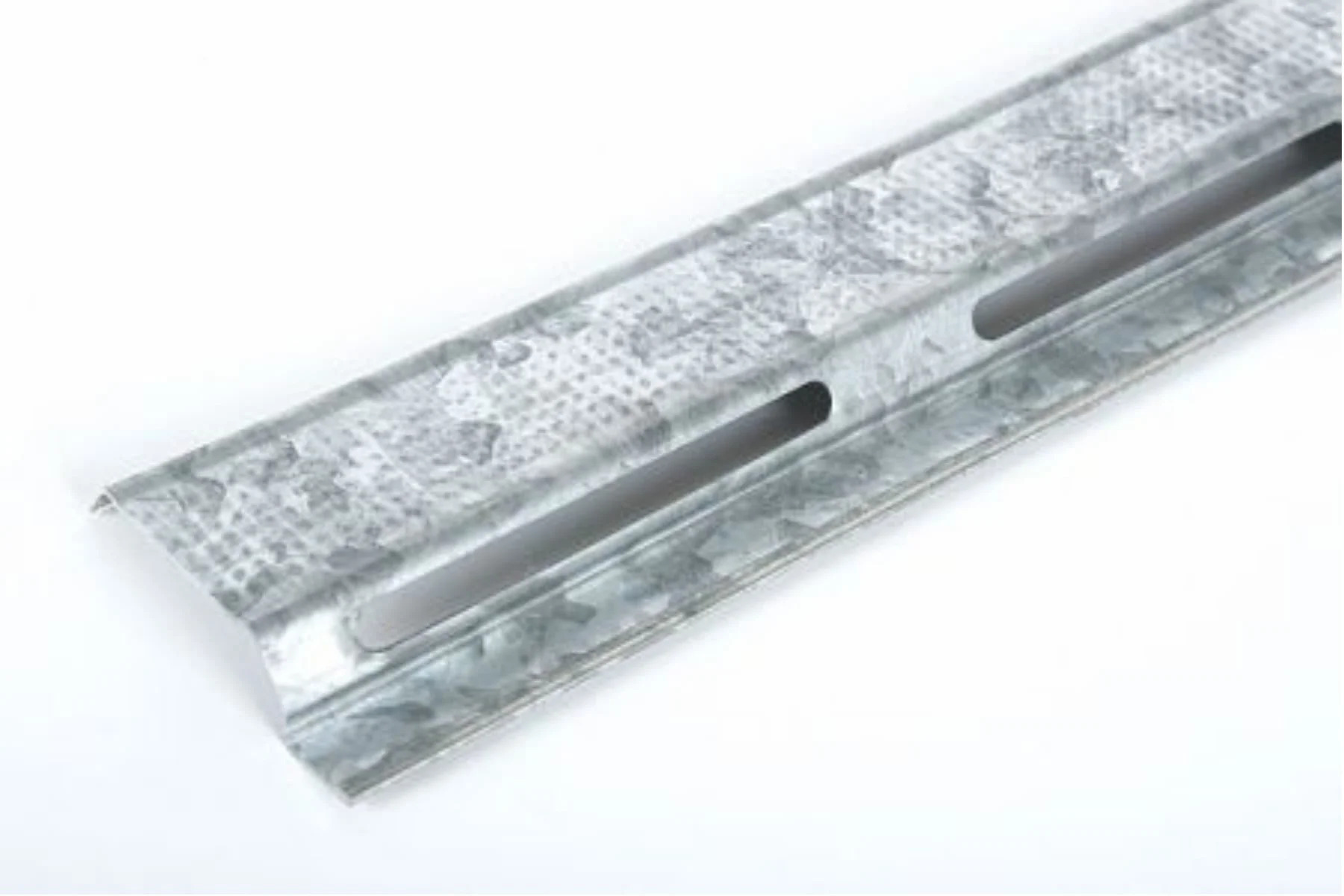

581 | |
5/8″ (h) x 2 1/2″ (w) Resilient Channel |
 |

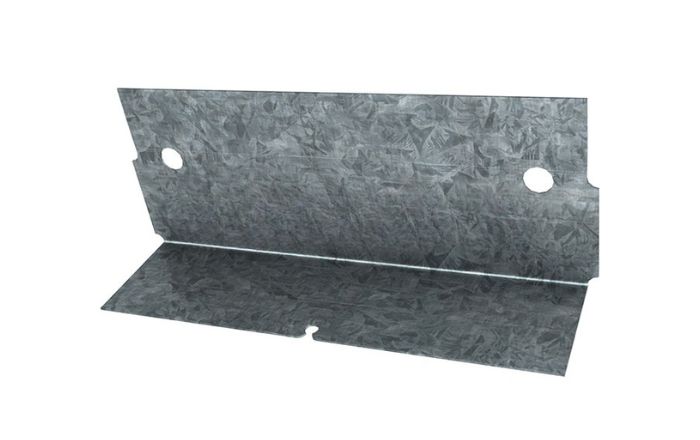

709 | |
1″ (h) x 5/8″ (w) x 2″ (I) Joiner – DUO5 Wall Angle |
 |

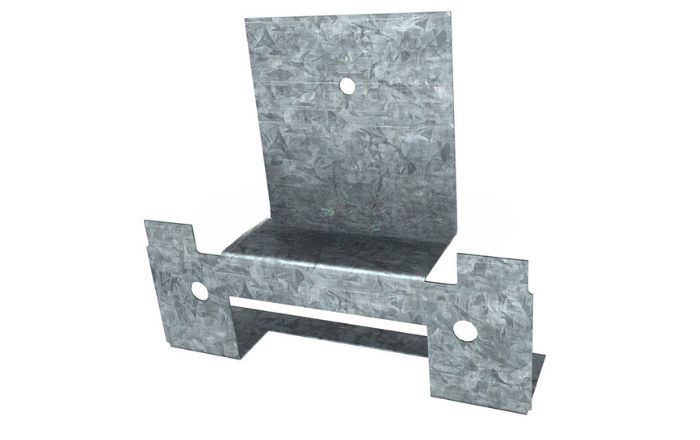

717 |
Bulkhead Clip – For use with DUO5 Wall Angle – suits 1/2″ Board |
|
 |

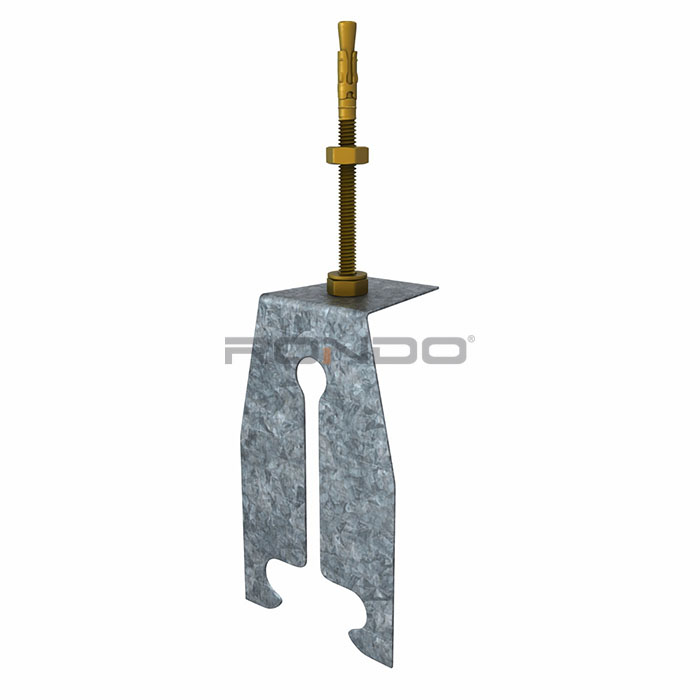

A124 | |
Top Cross Rail Assembly Clip with Adjustable Through Bolt |
|
|

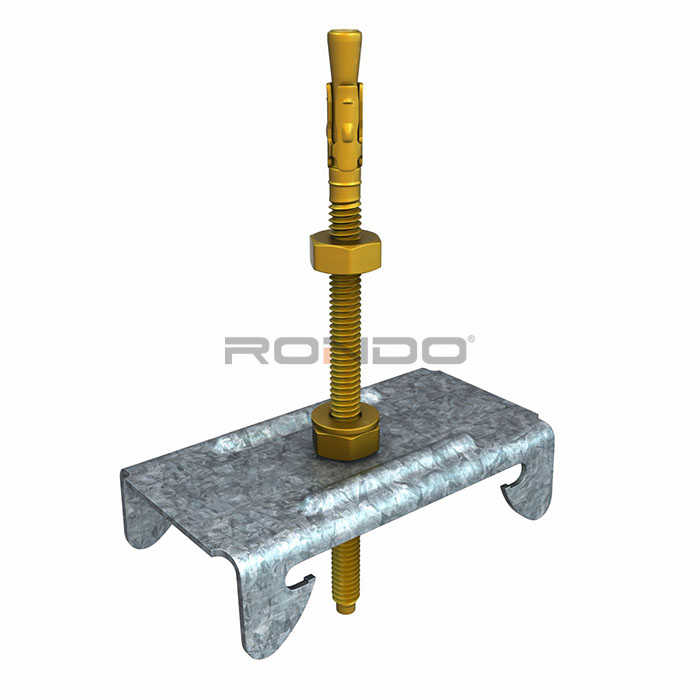

A239 |
DFC – 129/308/309A Furring Channel to Concrete/Masonry – M6 Adjustable Anchor Bolt |
|
 |

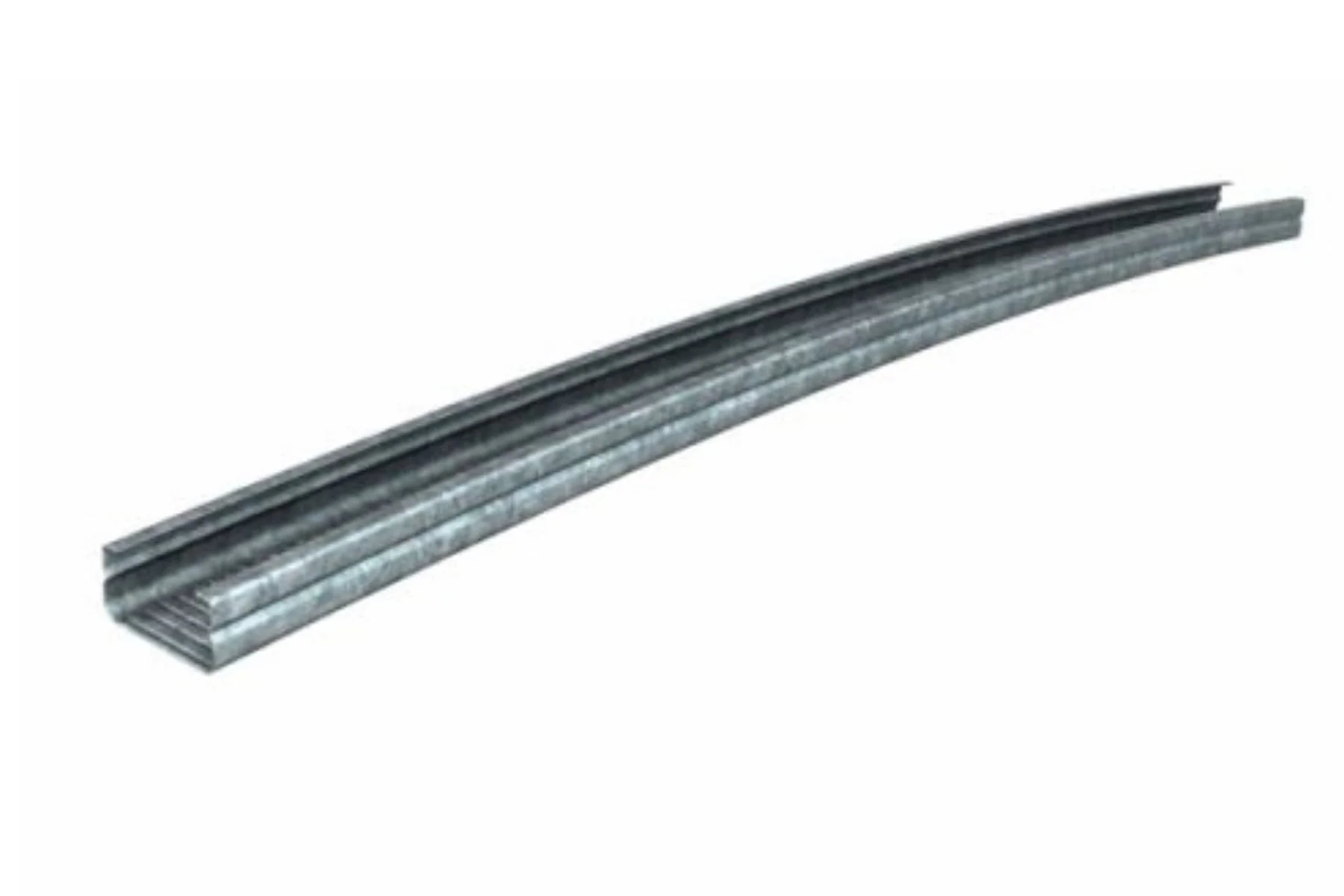

B005 | |
5/8″ (h) x 1 1/2″ (w) Back Blocking Batten |
 |

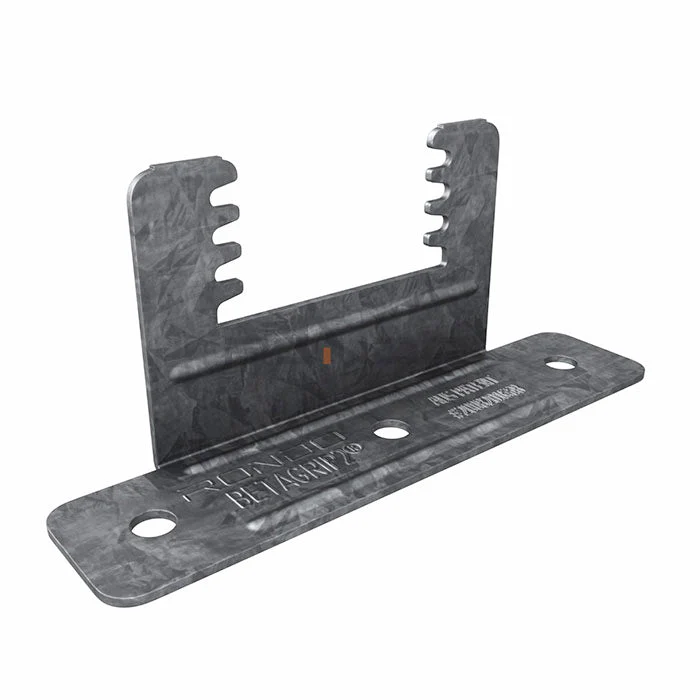

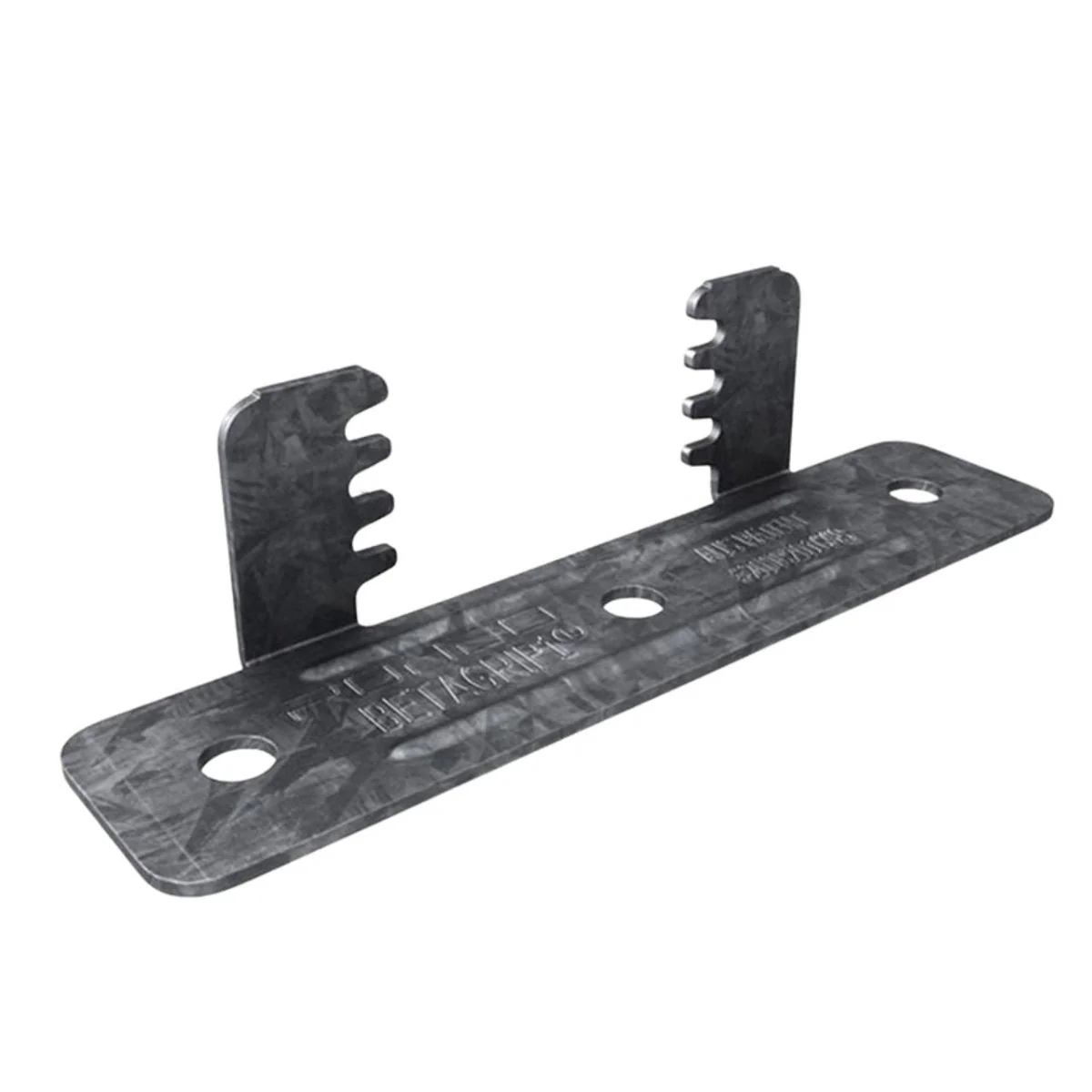

BG01 | |
1″ (h) BETAGRIP® Standard DFC – suits 129/308/309A Furring Channel |
 |

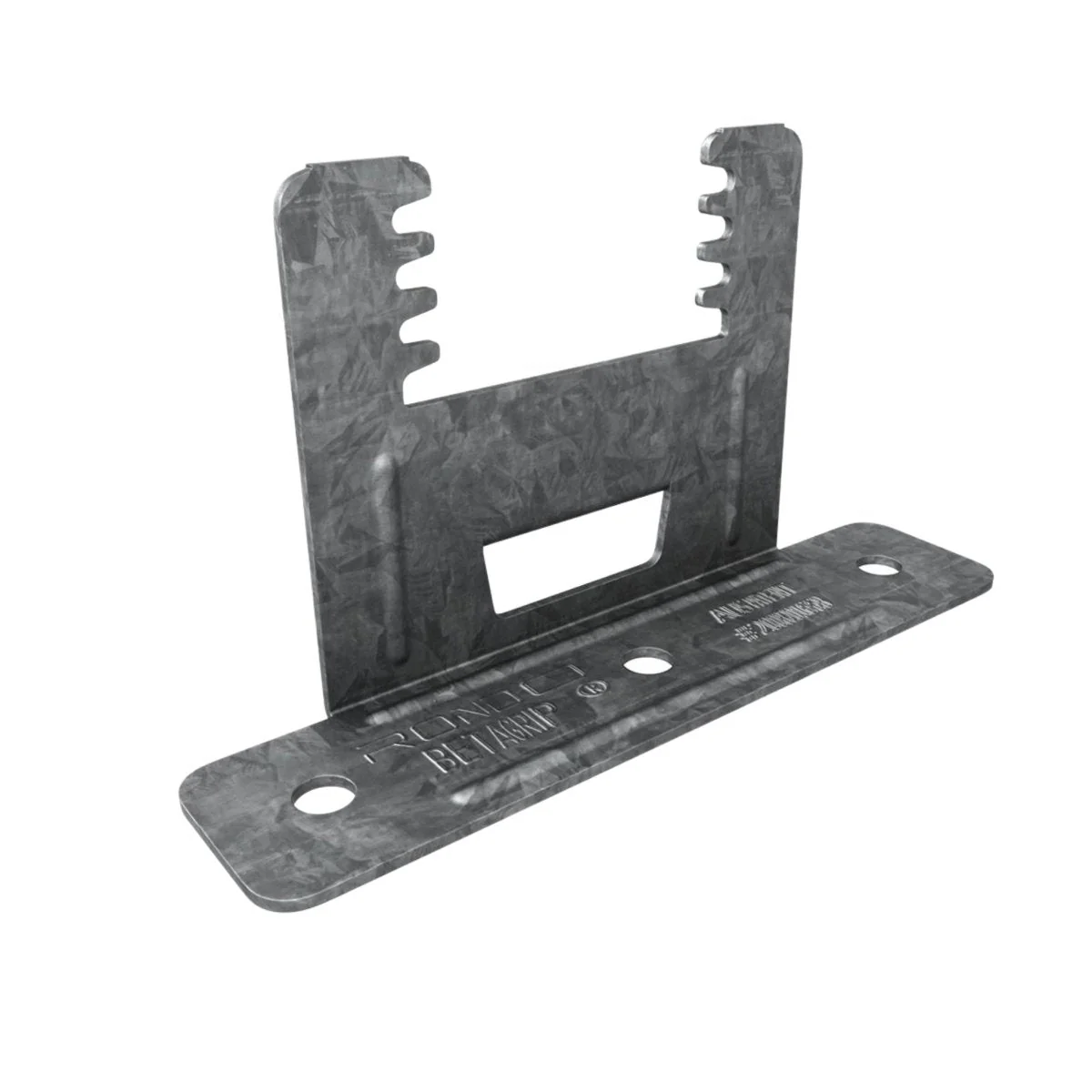

BG02 | |
2″ (h) BETAGRIP® Long DFC – suits 129/308/309A Furring Channel |
 |
BG05 | |
2 1/2″ (h) BETAFIL® Double Membrane Insulation DFC – suits 129/308/309A Furring Channel |
|
|
BG05K | |
2 1/2″ (h) BETAFIL® Semi–Rigid Insulation DFC – suits 129/308/309A Furring Channel |
 |

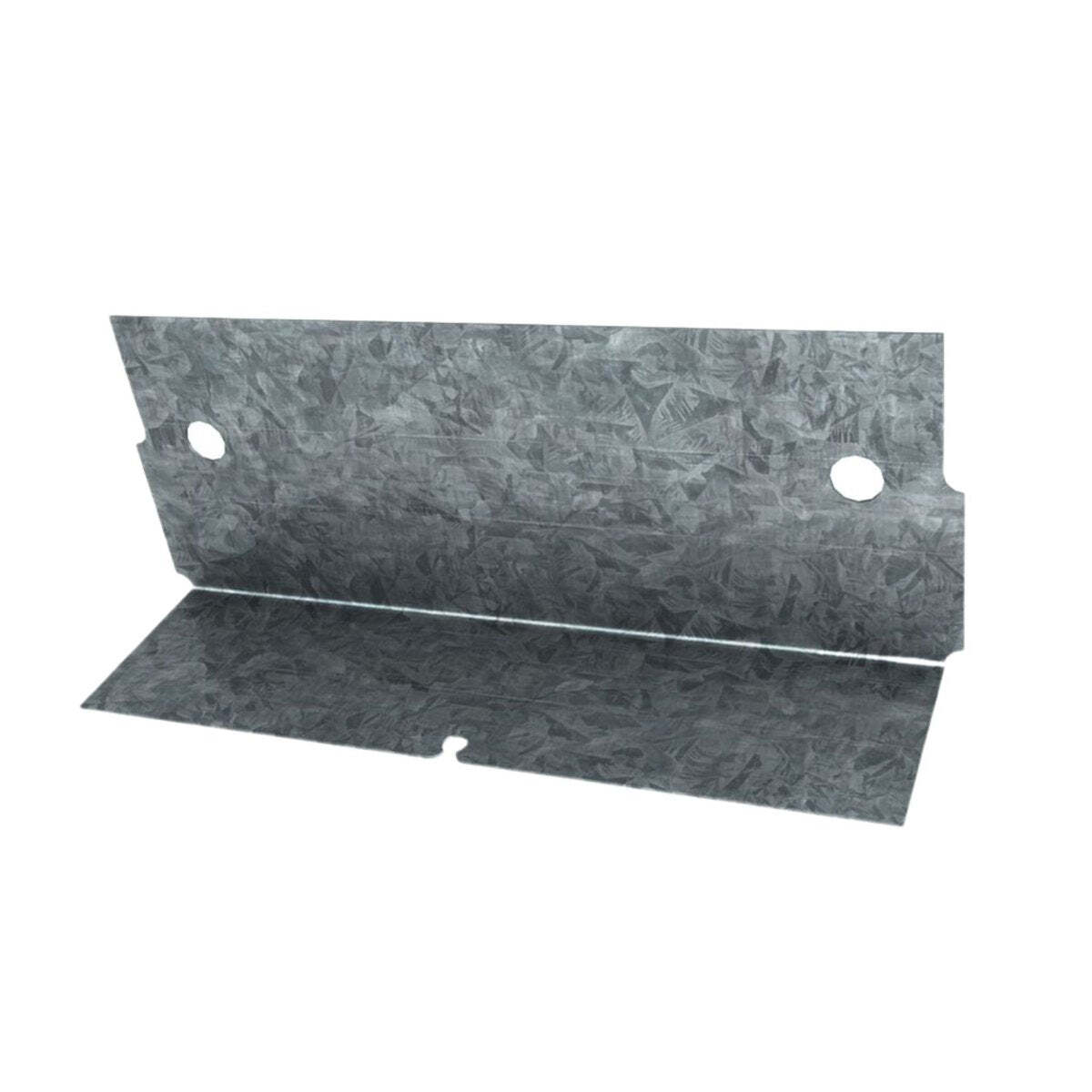

DUO5 | |
1″ (h) x 5/8″ (w) Steel Wall Angle – Tile White |
 |

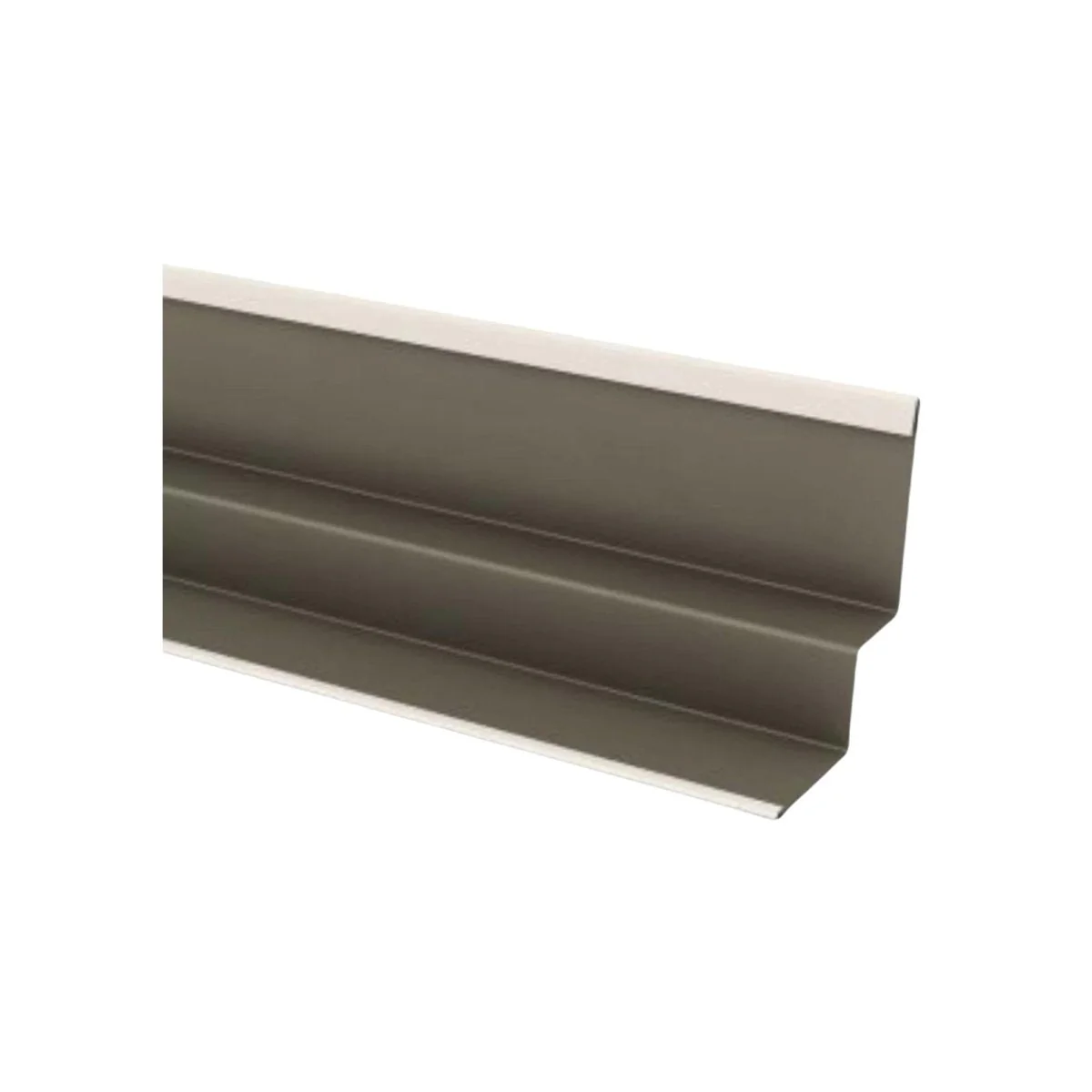

DUO6 | |
5/8″ (h) x 9mm (w) x 9mm (h) x 5/8″ (w) Steel Shadowline Wall Angle – Tile White |
 |

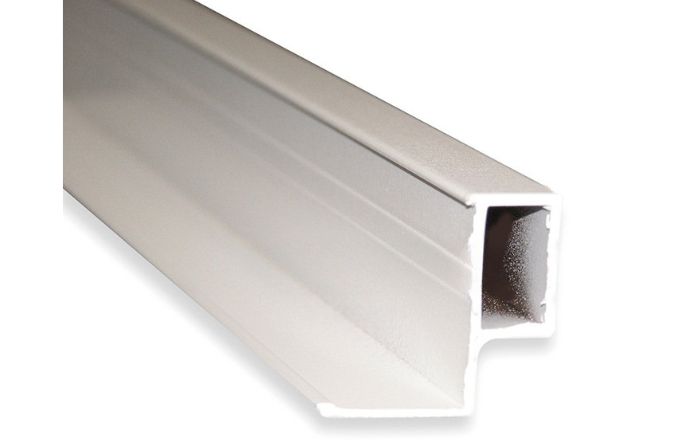

DUO7 | |
5/8″ (h) x 9mm (w) x 9mm (h) x 5/8″ (w) Aluminium Shadowline Wall Angle – Tile White |
 |

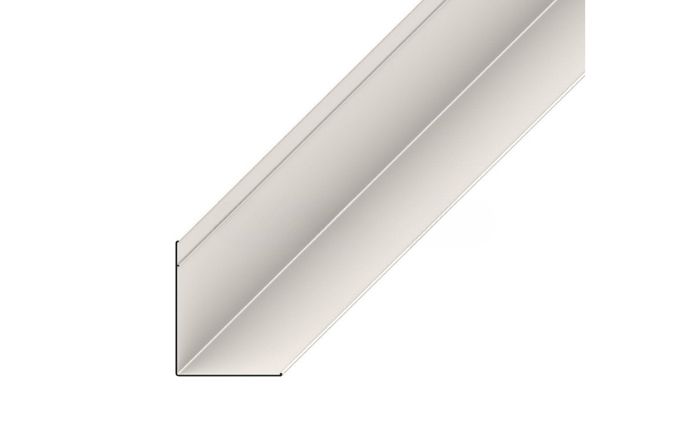

DUO8 | |
1 1/2″ (h) x 5/8″ (w) Aluminium Wall Angle – Tile White |
 |
FC-INFIN0030 | |
1 1/2″ (h) Sliding Adjustable DFC – suits 129/308/309A Furring Channel |
 |

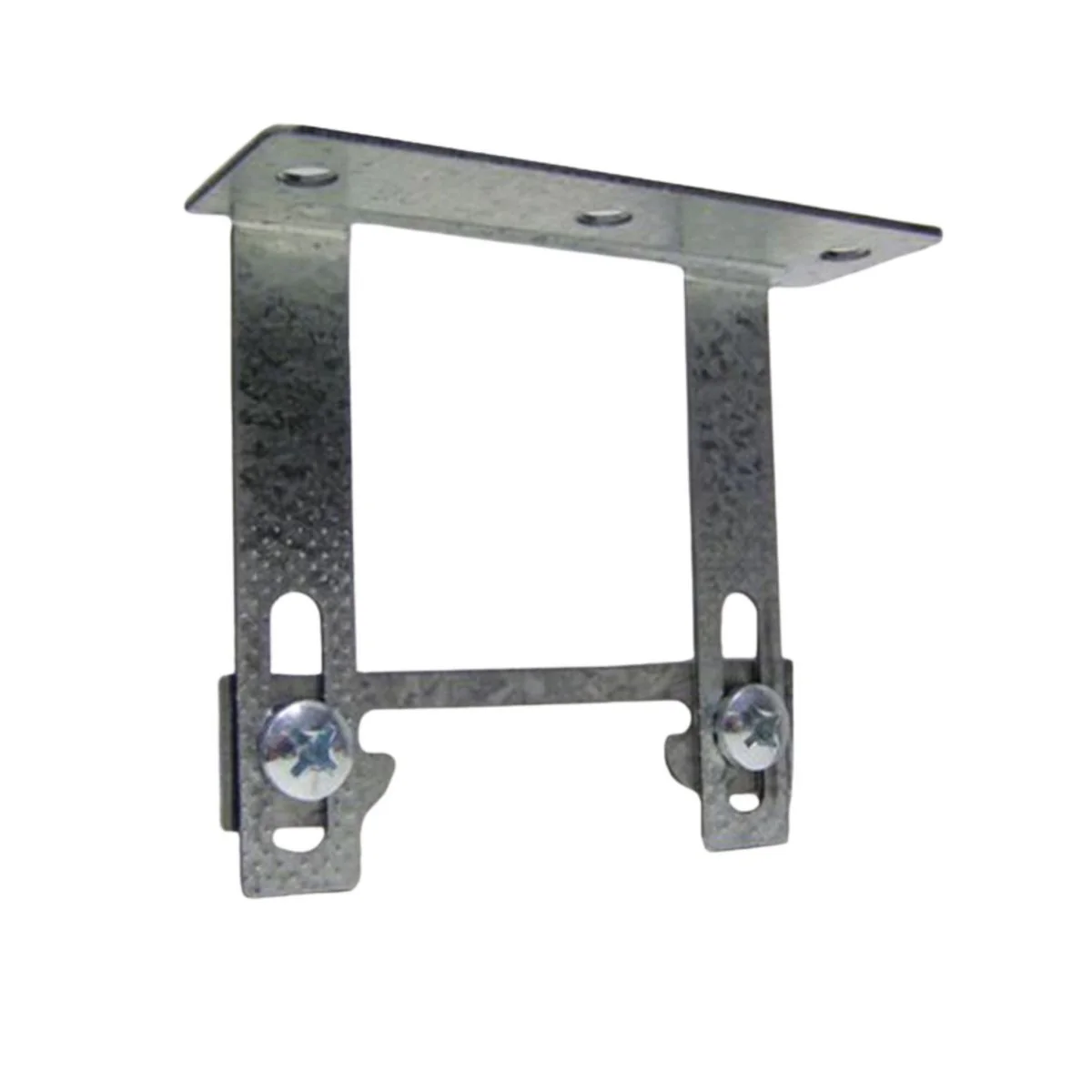

FC-INFIN0080 | |
3″ (h) Long Sliding Adjustable DFC – suits 129/308/309A Furring Channel |
 |

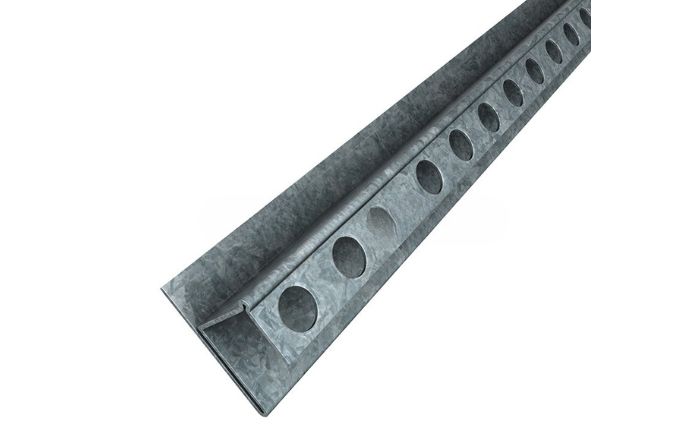

P51 | |
Shadowline Stopping Bead – 10mm Recess for 10mm Board |
|
|
P52 | |
Shadowline Stopping Bead – 10mm Recess for 1/2″ Board |
|
|
P53 | |
Shadowline Stopping Bead – 10mm Recess for 5/8″ Board |
 |

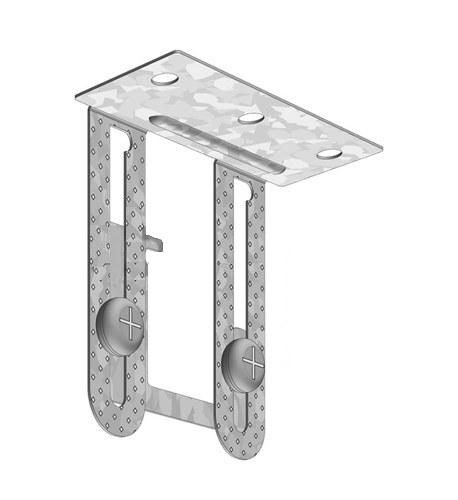

TCR-INFIN090 | |
2 1/2″ (h) Adjustable Height Sliding DFC – suits 125/127/128 Top Cross Rail |
