ACOUSTIC ASSEMBLIES

Judah^® offers a selection of Acoustic Mounts that complement our range of wall and ceiling systems and have been tested to comply with the requirements of The International Building Codes IBC.
Our new Acoustic Wall & Ceiling Systems Manual shows how our systems comply with all relevant codes and will help designers and engineers to design their next project with confidence.

PRODUCT FEATURES

AIRBORNE & SOUND INSULATION
Reduction of sound transmissionVERSATILE
Compatible with Wall and Ceiling systemsSIMPLE INTEGRATION
Simple, solid structure
ADVANTAGES

IBC Compliant Acoustic Systems for both walls and ceilings
Consideration of Airborne & Impact Sound Performance
Compatibility with each Judah^® System
The range of acoustic mounts and clips incorporates a rubber acoustic pad
Suitable for a range of wall and ceiling applications
Judah’s^® STWC Clip provides impact sound insulation improving the performance of the plasterboard, acoustic batt, wall or ceiling lining
Quick and easy to install
Judah’s BETAGRIP Sound Isolation Clip delivers an innovative design which encompasses the above acoustic properties whilst providing adjustment for the level of the plasterboard lining.

Download All CAD Files

IMAGE	PART NUMBER	CAD FILE	DESCRIPTION

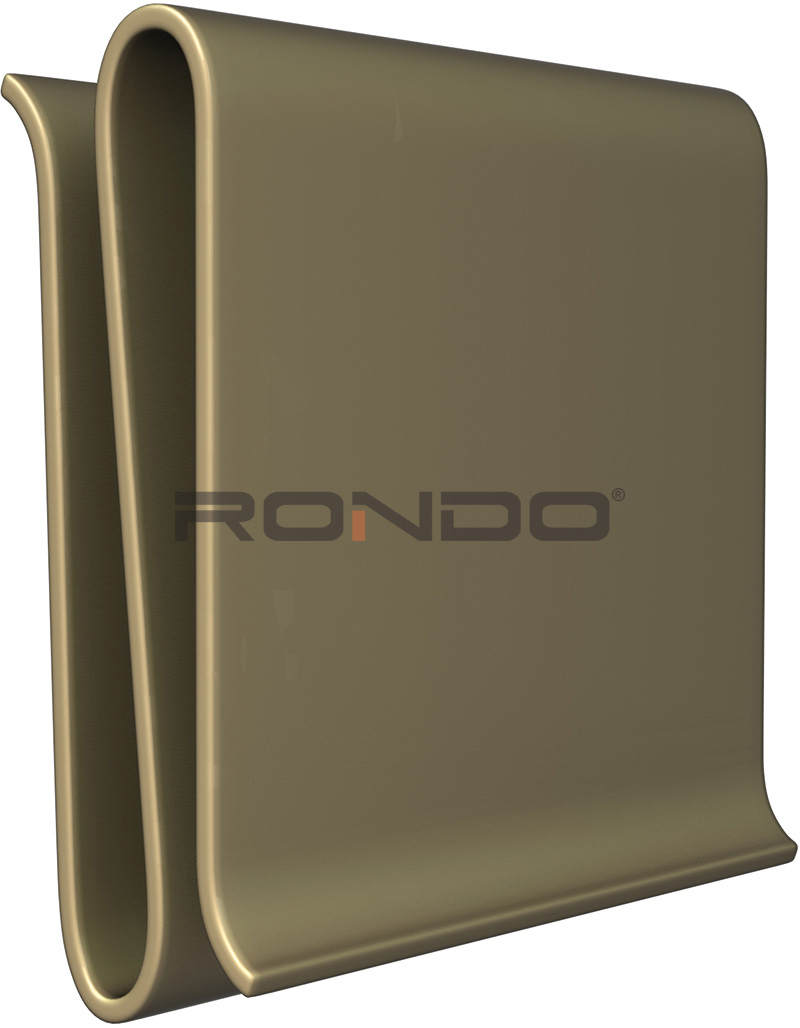

	126		Staggered Stud Clip (Special Order) Stock Pack: 500 \| Sub Pack: 100 *Special Order
	581		5/8 inch (h) x 2 3/8 inch (w) Resilient Channel Thickness: 25 GA \| Stock Pack: 200 \| Sub Pack: 10 Available Length: 11′ , 10′
	BG03		BetaGrip^® 3 Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A – M6 Adjustable Anchor Bolt Stock Pack: 100 \| Sub Pack: 100
	BG03-NTB		BetaGrip^®3 Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A – No Anchor Bolt Stock Pack: 100 \| Sub Pack: 100
	STDC		Acoustic Isolation DFC – Stud Wall to Masonry/Concrete Stock Pack: 100 \| Sub Pack: 100
	STPC		Acoustic Isolation DFC – 129,308,309A Furring Channel(s) to Timber/Steel Stock Pack: 100 \| Sub Pack: 100
	STSL		Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A – 2 9/16 inch M6 Adjustable Anchor Bolt Stock Pack: 100 \| Sub Pack: 100 Special Order Lengths: 65, 85, 100, 120, 150, 180
	STSU		Acoustic Isolation Clip – 125/127/128 Top Cross Rail to 129,308,309A Furring Channel(s) Stock Pack: 100 \| Sub Pack: 100
	STWC		Acoustic Isolation DFC – suits Furring Channel(s) 129,308,309A – 2 9/16 inch M6 Adjustable Anchor Bolt Stock Pack: 100 \| Sub Pack: 100
	WHIB		Acoustic Isolation Hanger – Blue – 20A Duro Rating Stock Pack: 100 \| Sub Pack: 100
	WHIG		Acoustic Isolation Hanger – Green – 40A Duro Rating Stock Pack: 100 \| Sub Pack: 100
	WHIP		Acoustic Isolation Hanger – Pink – 30A Duro Rating Stock Pack: 100 \| Sub Pack: 100
